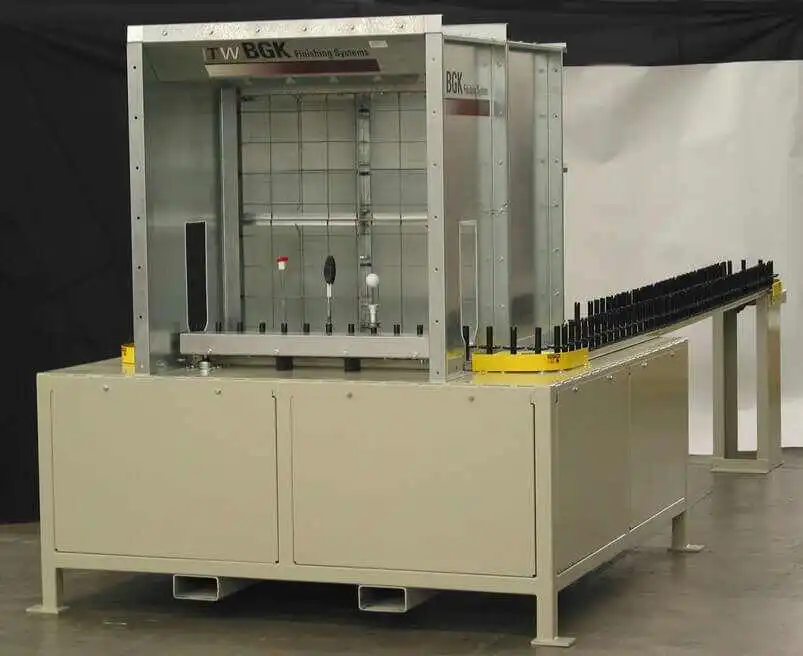

The Binks Spindle Master II is a compact, self-contained chain-on-edge conveyor for lighter, smaller parts. It offers five standard layouts, quick set-up, adjustable spray gun mounting, an integrated spray booth with exhaust fan and VFD drives.
Home » Product Catalog » Binks Spindle Master II Chain-on-Edge Conveyor
The Binks Spindle Master II is a compact, self-contained chain-on-edge conveyor for lighter, smaller parts. It offers five standard layouts, quick set-up, adjustable spray gun mounting, an integrated spray booth with exhaust fan and VFD drives.
Product Status:
Category:
Manufacturer:
Spindle Master II is offered in five standard layouts, sets up quickly and incorporates adjustable spray gun mountings, a spray booth with exhaust fan and standard spray control options.
Binks pairs its chain-on-edge conveyors with its infrared and convection curing equipment so the conveyor and oven are matched to part weight, size, line speed and coating. See the Binks Chain-on-Edge Conveyor brochure (04-508-01).
Call Fluid Transfer Systems at (248) 348-6700 for pricing, availability and application support.
Using chain-on-edge conveyor technology, the Spindle Master II has a compact, self-contained design for painting processes. The official Binks page describes it as a solution whether starting a new line or working through a conversion.
| Specification | Binks Spindle Master II |
|---|---|
| Conveyor Type | Compact, self-contained chain-on-edge conveyor table |
| Best For | Lighter weight, smaller parts |
| Layouts | Five standard layouts (custom layouts engineered) |
| Spray Booth | Integrated spray booth with exhaust fan |
| Spray Guns | Adjustable spray gun mounting; standard spray control options |
| Drives | VFD drives (indexing drives engineered) |
| Applications | Liquid or powder coating; new lines or conversions |
Source: binks.com and Binks Chain-on-Edge Conveyor brochure 04-508-01.
Fluid Transfer Systems, Inc. (FTS) is an authorized Binks distributor and Authorized Repair & Service Center in Novi, Michigan. Manufacturers in Michigan, Indiana and Ohio call FTS for the Binks Spindle Master II Chain-on-Edge Conveyor. Third-generation family owned since 1971, FTS serves all three states from one location at 22545 Heslip Drive, Novi, MI 48375.
See who to call for paint finishing equipment in Michigan, Indiana and Ohio.
For pricing and availability, call (248) 348-6700 (Monday to Friday, 8 AM to 5 PM Eastern) or request a quote.
Spindle Master II features and options from binks.com.
| Standard Features | Options | Engineered Options |
|---|---|---|
| Adjustable Spray Gun Mounting | Static Rotator | Part Orientation |
| Compact, Self-Contained Machine | Power Rotator | Custom Layouts |
| Five Standard Layouts | Liquid or Powder Air Knife | Indexing Drives |
| Simple and Quick Set-Up | Wear-Strips | Static and Power Rotators |
| Spray Booth with Exhaust Fan | Spray Control Features | Liquid or Powder Air Knives |
| Standard Spray Control Options | ||
| VFD Drives |
Binks chain-on-edge conveyor family (brochure 04-508-01).
| Model | Description |
|---|---|
| Spindle Master II | Compact, self-contained chain-on-edge conveyor table, ideal for lighter, smaller parts. Five layouts, quick set-up, adjustable spray gun mountings. |
| Spindle Pro | Standardized, modular components for easy, fast installation; flexible for static or power rotators. Can be engineered with automatic loaders/unloaders and variable track height. |
| Spindle Boss | Heavy-duty industrial chain-on-edge conveyor with welded frame, variable speed drive motor and gearbox, take-up slider table and air cylinder system. Conveys parts through coating booths, ovens and cool downs with variable track height adjustment. |
| Spindle King | Robust chain-on-edge conveyor with a track design for heavy, large parts. Easy to install, with sturdy turn modules and low friction structural track. |
Chain-on-edge conveyor options from Binks brochure 04-508-01. Availability varies by model.
| Option | Description |
|---|---|
| Drive Assist | Used with systems that exceed application data |
| Power Rotator | Rotates parts in booths at variable speeds |
| Air Knife | Used in coating booths to minimize coating on conveyor and spindle |
| Static Rotator | Rotates parts in ovens and cool downs |
| Teflon Wear-Strips | Used in hot areas above 180°F and below 450°F |
| Control Cabinet | Controls conveyor and power rotator |
| VFD Drives | Conveyor and power rotator |
| Indexing Drive | Starts/stops the conveyor for each part automatically |
| PLC Controls | Controls conveyor, power rotator and spray controls |
| Spray Gun Controls | Pneumatic gun trigger and spray gun adjustments |
| Part Orientation (custom) | Indexes spindle for load and unload areas |
| Automatic Loaders and Unloaders (custom) | Automated part loading and unloading |
| Spindle Spacing (custom) | 1-1/2" and 3" center spindle spacing available |
| Track Height Variations (custom) | Engineered track heights |
Flatline conveyor applications from Binks brochure 04-508-01.
| Application | Highlights |
|---|---|
| Brake Pad Systems | Up to 14 lanes wide at 10 to 100 pads per minute; tough finish meeting film build and brake fluid resistance testing; pads cured in under two minutes with zoned temperature control |
| Glass Systems | Flatline conveyors for water- or oil-based ceramic frit, solvent-based mirror backs and organic/non-organic UV inhibitors; respond instantly to empty or full load conditions |
| Media Cure Systems | Single or dual lane, matched to automated count-cut or cartridge assembly equipment; even distribution around the center tube |
