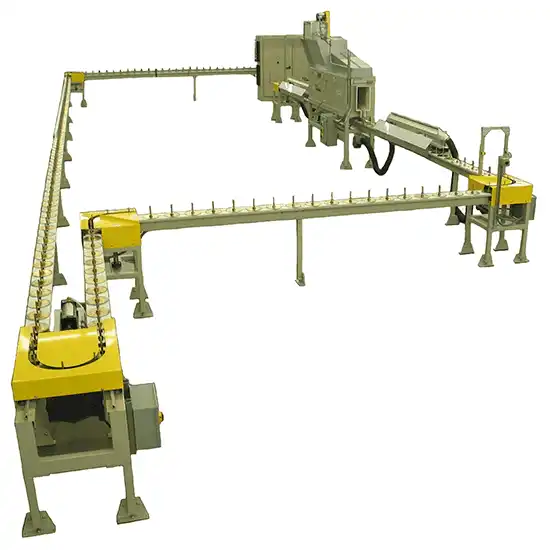

The Binks Spindle King is a robust chain-on-edge conveyor for heavy, large parts. It is easy to install, with sturdy turn modules, low friction structural track and modular layouts for liquid or powder finishing lines using continuous, indexing or combination motion.
Product Status:
Category:
Manufacturer:
Spindle King is part of the Binks chain-on-edge family (Spindle Master II, Spindle Pro, Spindle King and Spindle Boss) and offers simple layout configurations built from modular components. It is engineered for liquid or powder applications with continuous, indexing and combination motion.
Binks pairs its chain-on-edge conveyors with its infrared and convection curing equipment so the conveyor and oven are matched to part weight, size, line speed and coating. See the Binks Chain-on-Edge Conveyor brochure (04-508-01).
Call Fluid Transfer Systems at (248) 348-6700 for pricing, availability and application support.
| Specification | Binks Spindle King |
|---|---|
| Conveyor Type | Robust chain-on-edge (spindle) conveyor for heavy, large parts |
| Track | Low friction structural track, sturdy turn modules |
| Drive | Combination drive and take-up module |
| Motion | Continuous, indexing and combination |
| Applications | Liquid or powder coating |
| Layout | Simple layout configurations using modular components |
| Spindle | Sprocket spindle for positive rotation; 1-1/2" and 3" center spacing available (engineered) |
| Wear-Strips | Teflon wear-strips for areas above 180°F and below 450°F (option) |
Source: binks.com and Binks Chain-on-Edge Conveyor brochure 04-508-01.
Spindle King features and options from binks.com.
| Standard Features | Options | Engineered Options |
|---|---|---|
| Sturdy Turn Modules | Static Rotator | Spindle Orientation |
| Low Friction Structural Track | Power Rotator | Automatic Loaders and Unloaders |
| Combination Drive and Take-Up Module | Liquid or Powder Air Knife | Unique Spindle Spacing |
| Sprocket Spindle for Positive Rotation | Part Orientation | Load/Unload Guide Bars and Shields |
| Simple Layout Configurations using Modular Components | Automation Capabilities: Load, Unload, Paint-to-Cure Line Transfer | E-Stop Cable |
| Engineered for Liquid or Powder Applications | Wear-Strips | Track Height Variations |
| Continuous, Indexing and Combination Motion | Control Cabinet | PLC Controls |
| Drive Assist | VFD Drives | |
| Indexing Drives | ||
| Spray Gun Controls |
Binks chain-on-edge conveyor family (brochure 04-508-01).
| Model | Description |
|---|---|
| Spindle Master II | Compact, self-contained chain-on-edge conveyor table, ideal for lighter, smaller parts. Five layouts, quick set-up, adjustable spray gun mountings. |
| Spindle Pro | Standardized, modular components for easy, fast installation; flexible for static or power rotators. Can be engineered with automatic loaders/unloaders and variable track height. |
| Spindle Boss | Heavy-duty industrial chain-on-edge conveyor with welded frame, variable speed drive motor and gearbox, take-up slider table and air cylinder system. Conveys parts through coating booths, ovens and cool downs with variable track height adjustment. |
| Spindle King | Robust chain-on-edge conveyor with a track design for heavy, large parts. Easy to install, with sturdy turn modules and low friction structural track. |
Chain-on-edge conveyor options from Binks brochure 04-508-01. Availability varies by model.
| Option | Description |
|---|---|
| Drive Assist | Used with systems that exceed application data |
| Power Rotator | Rotates parts in booths at variable speeds |
| Air Knife | Used in coating booths to minimize coating on conveyor and spindle |
| Static Rotator | Rotates parts in ovens and cool downs |
| Teflon Wear-Strips | Used in hot areas above 180°F and below 450°F |
| Control Cabinet | Controls conveyor and power rotator |
| VFD Drives | Conveyor and power rotator |
| Indexing Drive | Starts/stops the conveyor for each part automatically |
| PLC Controls | Controls conveyor, power rotator and spray controls |
| Spray Gun Controls | Pneumatic gun trigger and spray gun adjustments |
| Part Orientation (custom) | Indexes spindle for load and unload areas |
| Automatic Loaders and Unloaders (custom) | Automated part loading and unloading |
| Spindle Spacing (custom) | 1-1/2" and 3" center spindle spacing available |
| Track Height Variations (custom) | Engineered track heights |
Flatline conveyor applications from Binks brochure 04-508-01.
| Application | Highlights |
|---|---|
| Brake Pad Systems | Up to 14 lanes wide at 10 to 100 pads per minute; tough finish meeting film build and brake fluid resistance testing; pads cured in under two minutes with zoned temperature control |
| Glass Systems | Flatline conveyors for water- or oil-based ceramic frit, solvent-based mirror backs and organic/non-organic UV inhibitors; respond instantly to empty or full load conditions |
| Media Cure Systems | Single or dual lane, matched to automated count-cut or cartridge assembly equipment; even distribution around the center tube |
