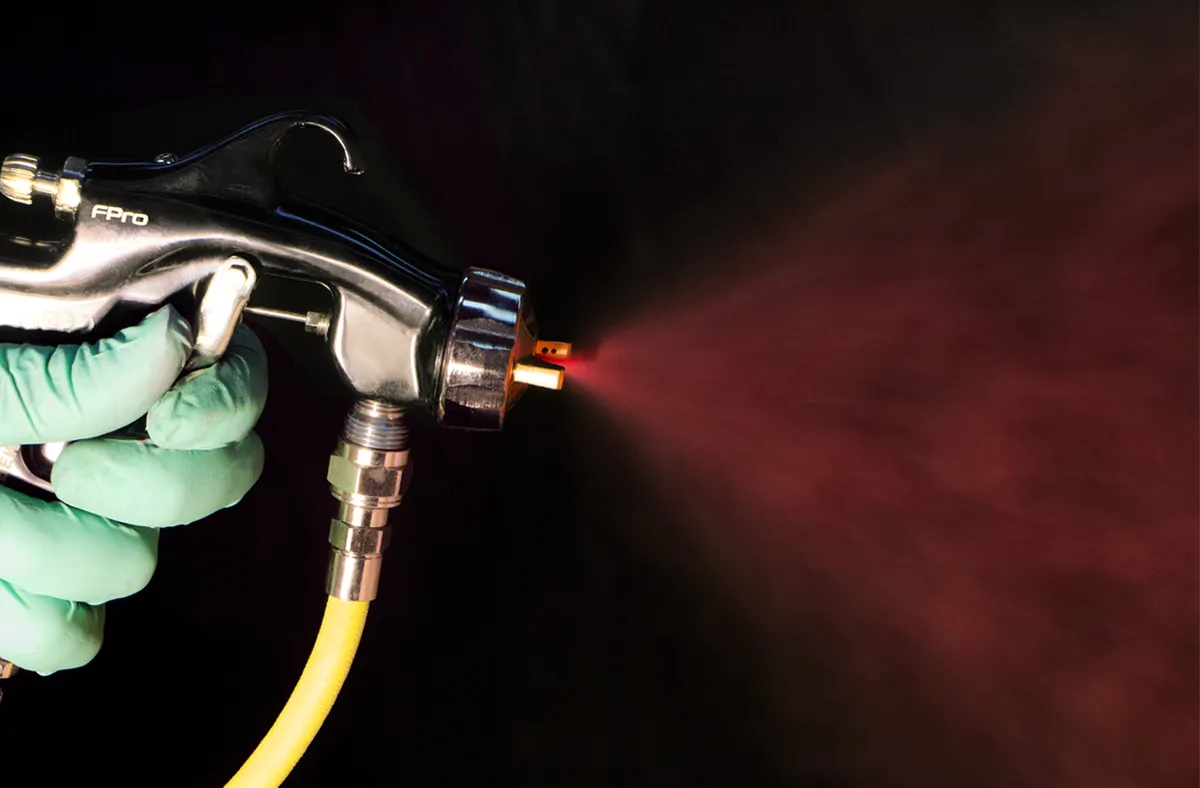

Perfectly balanced, the Fpro WBE spray gun provides a superior finish for all painters and is designed for spraying water-based porcelain and ceramics. Sames offers the largest range of spray guns and accessories for all FPro applications in the high finishing markets.
Product Status:
Category:
Manufacturer:
Perfectly balanced, the Fpro WBE spray gun provides a superior finish for all painters and is designed for spraying water-based porcelain and ceramics. Sames offers the largest range of spray guns and accessories for all FPro applications in the high finishing markets.
1. The Fpro WBE spray gun gives the perfect finishing available for all painters
1. The widest range of spray guns and accessories for all applications in markets that require high finishing spraying
2. Patented restrictor controls paint speed
4. Three different adjustment knobs to get the perfect spray pattern in every conditions
5. Perfectly balanced for reduced repetitive stress injuries
6. The Fpro WBE is an extension of the arm and is a natural working tool for painters
7. Reduced trigger pull
8. Compact handle design, ideal for operators with small hands
3. Heat-treated nozzle lasts longer
5. Removable PU needle tip eliminates the need to replace the complete needle assembly
9. Elegant design, high quality components and anodization used, state-of-the-art machining make the Fpro WBE spray gun the ultimate solution for difficult applications
9. Simplified and quick maintenance due to the reduced number of components
10. A new design for fluid and air fittings, compatible with BSP and NPS terminated hoses.
| Designation | Value |
|---|---|
| Maximum Air Pressure (bar) | 6 |
| Maximum Air Pressure (psi) | 87 |
| Recommended Air Pressure (min) (bar) | 3 |
| Recommended Air Pressure (min) (psi) | 43.5 |
| Optimal Transfer Efficiency (%) | 63 |
| Maximum Material Pressure (bar) | 6 |
| Maximum Material Pressure (psi) | 87 |
| Air Consumption (cfm) | 10.3 - 21.2 |
| Air Consumption (m3/h) | 17.5 - 36.1 |
| Weight (g) | 480 |
| Weight (oz) | 16.9 |
| Maximum Temperature (°C) | 50 |
| Maximum Temperature (°F) | 122 |
| Type of electrostatic charge | No electrostatic |
| Air Inlet Fitting | M 1/4 NPS/BSP compatible |
| Material Inlet Port | M 3/8 NPS/BSP compatible |
| Wetted Parts | Polyurethane, Stainless steel 303, Treated stainless steel |
| Certification | ATEX II2G Ex h IIB T6 Gb X |
| Spraying type | Airspray |
| Designation | Part number |
|---|---|
| Gun FPro P CONV-12-Lwb | 135779912 |
| Gun FPro P CONV-18-Lwb | 135779918 |
| Gun FPro P CONV-23-Lwb | 135779923 |
| Gun FPro P CONV-15-Lwb | 135779915 |
| Gun FPro P CONV-09-Lwb | 135779909 |
| Designation | Part number |
|---|---|
| Projector FPro P CONV-18-Lwb | 131774918 |
| Projector FPro P CONV-07-Lwb | 131774907 |
| Projector FPro P CONV-12-Lwb | 131774912 |
| Projector FPro P CONV-09-Lwb | 131774909 |
| Projector FPro P CONV-23-Lwb | 131774923 |
| Projector FPro P CONV-15-Lwb | 131774915 |
For pricing and availability on the Sames Fpro WBE Airspray Manual Conventional Spray Gun, call FTS at (248) 348-6700 or request a quote online.
