QUANTM i230 – 3-inch High Flow Double Diaphragm Pumps. Available from FTS, an authorized Graco distributor in Novi, MI.
QUANTM i230 – 3-inch High Flow Double Diaphragm Pumps. Available from FTS, an authorized Graco distributor in Novi, MI.
Product Status:
Category:
Manufacturer:

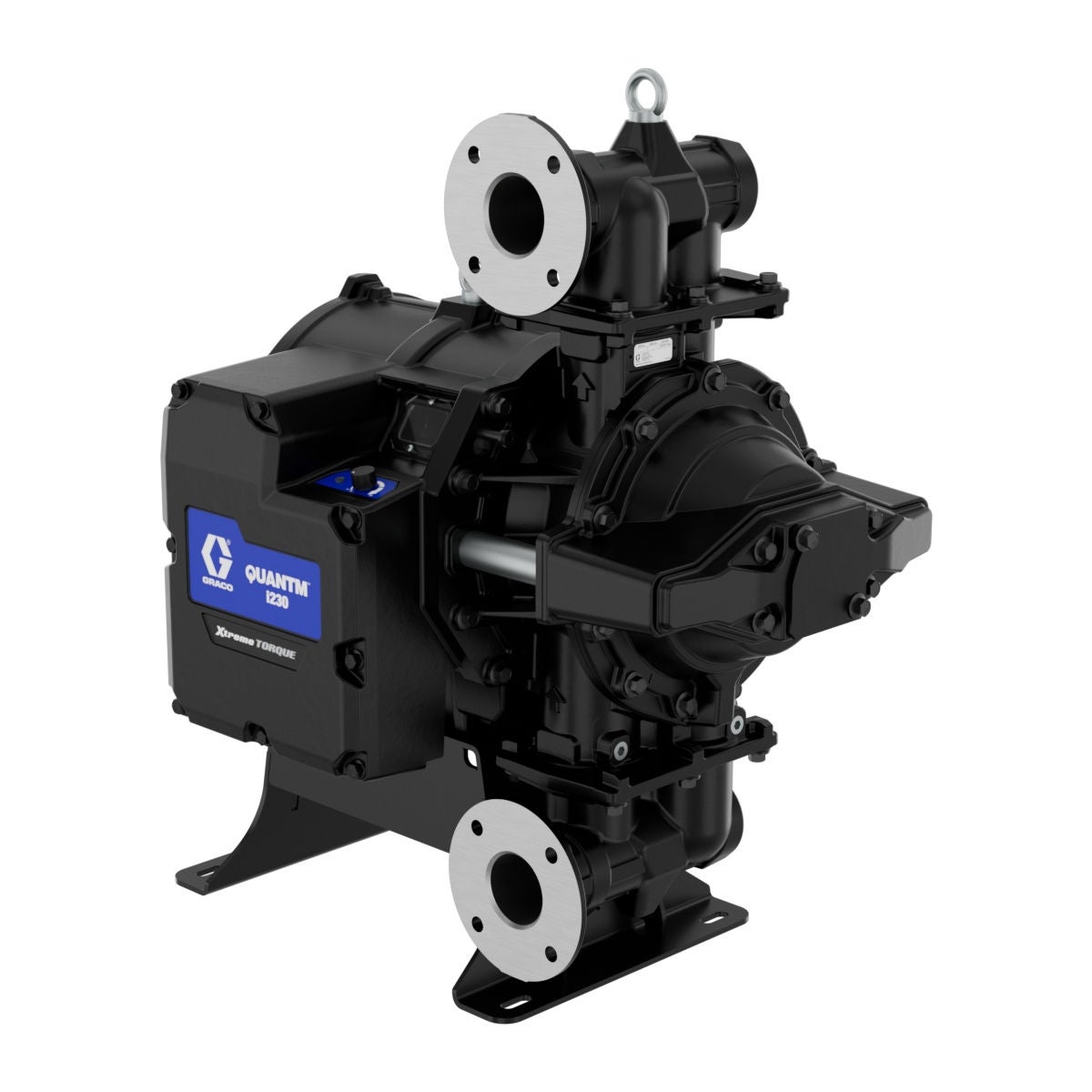

The QUANTM i230 is an electric-operated double diaphragm pump (EODD) designed for high-flow industrial applications traditionally served by pneumatic pumps. QUANTM i230 helps manufacturers move more material using less energy while maintaining the reliability and operating flexibility expected from diaphragm pumps. By reducing dependence on compressed air and simplifying maintenance, QUANTM i230 helps improve uptime, increase operational efficiency and lower operating costs without compromising performance.
Designed for demanding high-flow fluid-transfer applications, QUANTM i230 combines electric efficiency and integrated process control with the operating capabilities manufacturers expect from diaphragm-pump technology. Its service-friendly design helps maintenance teams reduce service disruption, while electric operation supports more consistent performance without depending on available plant-air capacity.
Move more material while using less energy. QUANTM i230 provides an electric alternative to energy-intensive compressed-air operation, helping reduce the operating cost of demanding, high-use transfer applications.
Keep production running with a design focused on serviceability and reliability. ProConnect allows the fluid section to be exchanged without moving or unwiring the motor, while serviceable components help simplify ongoing maintenance.
Deliver the flow operators need without fluctuations caused by changing plant-air demand. Integrated speed control, remote start/stop functionality and status outputs support more consistent operation, process visibility and plant-system integration.
Gain the efficiency and control advantages of electric operation while retaining familiar diaphragm-pump capabilities, including self-priming operation, dry-run capability, stall-under-pressure behavior and solids handling within the approved operating limits.
Extended bearing life, an upgraded fluid plate and motor shaft seal protection help support reliable operation in demanding, high-duty applications.
Reduce noise, lower energy consumption, and minimize environmental risk with a fully sealed electric pumping solution designed to create a safer, cleaner, and more efficient workplace.
Graco offers the QUANTM i230 Electric Double Diaphragm Pump (3 in. High Flow) in 8 configurations. See the part-number table for every Graco part number and its materials.
Part of the Graco QUANTM Electric Double Diaphragm Pumps family.
Also available (ask FTS for a copy):
FTS is an authorized Graco distributor in Novi, Michigan. For pricing, availability, setup help or service on Graco QUANTM electric diaphragm pumps, call (248) 348-6700 or contact FTS for a quote.
| Part Number | Description | Ball Material | Diaphragm Material | Seat Material |
|---|---|---|---|---|
| TE230-0000 | QUANTM i230 Aluminum Electric Diaphragm Pump, 3" End Port Flange, 380-480VAC 3Ph, Santoprene Seat, Santoprene Ball, Santoprene Diaphragm, EPDM Manifold Seals | Santoprene | Santoprene | Santoprene |
| TE230-0001 | QUANTM i230 Aluminum Electric Diaphragm Pump, 3" End Port Flange, 380-480VAC 3Ph, Stainless Steel Seat, Polychloroprene Ball, Polychloroprene Diaphragm, EPDM Manifold Seals | Polychloroprene | Polychloroprene | 316 Stainless Steel |
| TE230-0002 | QUANTM i230 Aluminum Electric Diaphragm Pump, 3" End Port Flange, 380-480VAC 3Ph, Stainless Steel Seat, Weighted Polychloroprene Ball, Polychloroprene Diaphragm, EPDM Manifold Seals | Polychloroprene | Polychloroprene | 316 Stainless Steel |
| TE230-0003 | QUANTM i230 Aluminum Electric Diaphragm Pump, 3" End Port Flange, 380-480VAC 3Ph, Buna-N Seat, Buna-N Ball, Buna-N Diaphragm, Buna-N Manifold Seals | Buna-N | Buna-N | Buna-N |
| TE230-0004 | QUANTM i230 Aluminum Electric Diaphragm Pump, 3" End Port Flange, 380-480VAC 3Ph, Fluoroelastomer Seat, Fluoroelastomer Ball, Fluoroelastomer Diaphragm, Fluoroelastomer Manifold Seals | Fluoroelastomer | Fluoroelastomer | Fluoroelastomer |
| TE230-0005 | QUANTM i230 Aluminum Electric Diaphragm Pump, 3" End Port Flange, 380-480VAC 3Ph, Graco Engineered Thermoplastic Seat, Graco Engineered Thermoplastic Ball, Graco Engineered Thermoplastic Diaphragm, Buna-N Manifold Seals | G.E.T. (Graco Engineered Thermoplastic) | G.E.T. (Graco Engineered Thermoplastic) | G.E.T. (Graco Engineered Thermoplastic) |
| TE230-0006 | QUANTM i230 Aluminum Electric Diaphragm Pump, 3" End Port Flange, 380-480VAC 3Ph, Thermoplastic Elastomer Seat, Acetal Ball, Thermoplastic Elastomoer Diaphragm, EPDM Manifold Seals | Acetal | TPE | TPE |
| TE230-0007 | QUANTM i230 Aluminum Electric Diaphragm Pump, 3" End Port Flange, 380-480VAC 3Ph, Stainless Steel Seat, PTFE Ball, PTFE Diaphragm with Santoprene Backer, PTFE Manifold Seals | PTFE | PTFE/Santoprene 2-Piece | 316 Stainless Steel |
Part numbers and materials as published by Graco. Confirm configuration with FTS before ordering.
