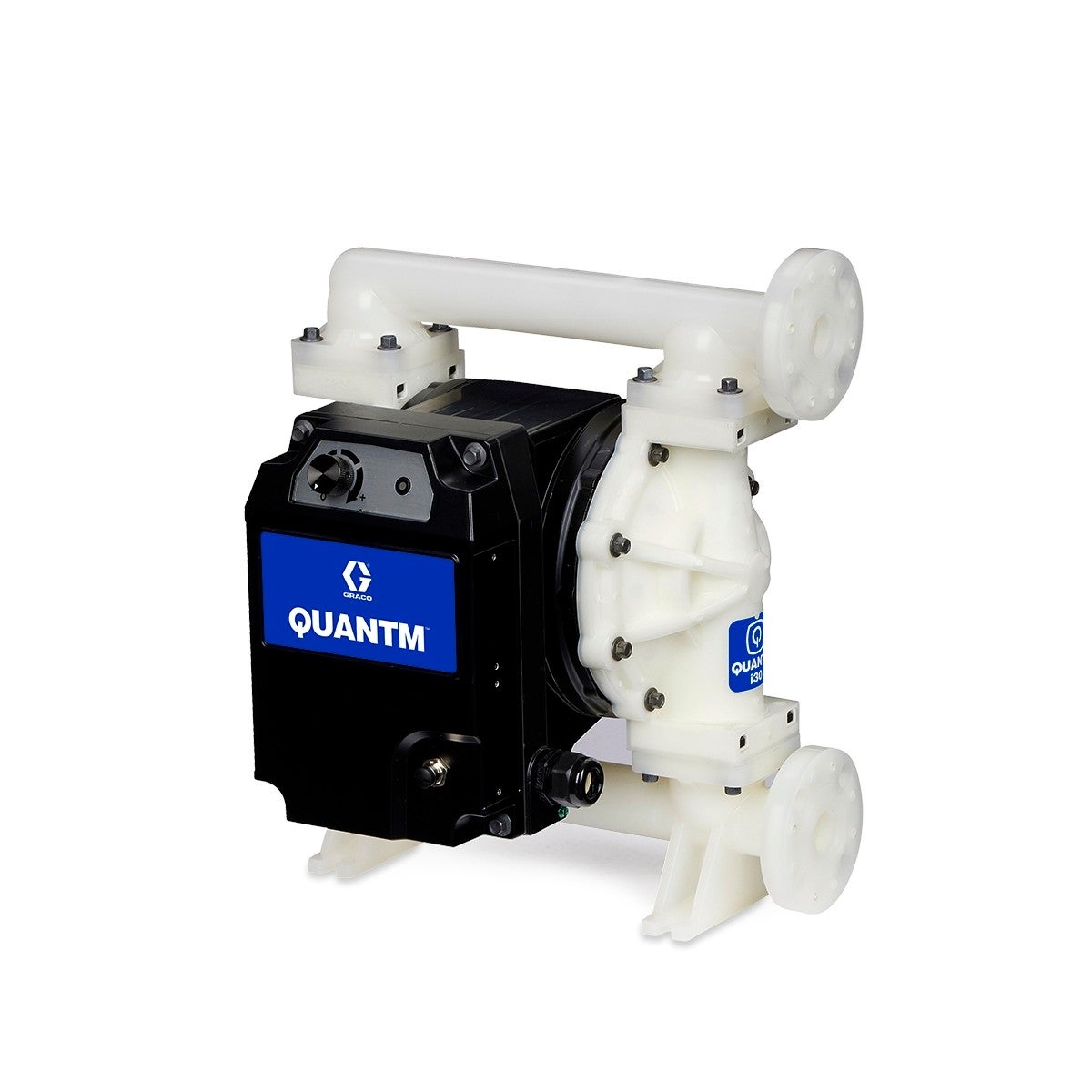

Graco QUANTM i30 Electric Double Diaphragm Pump

The QUANTM i30, a revolutionary Graco electric operated double diaphragm (EODD) pump with a 1 in. (25.4 mm) port, helps factories cut energy costs, meet sustainability goals, and comply with regulations. With significant rebates, it delivers a return on investment in under a year.

With a 30 gallons per minute (114 lpm) flow rate, and the powerful XT motor and drive delivers up to 8x more continuous torque at low speeds than conventional motors, the i30 can handle most fluid transfer jobs to be the efficient workhorse you need on your production lines. Its plug-and-play design fits any 120V or 380V/480V outlets, allowing you to easily replace existing pumps without additional investment or infrastructure rework.

Up to 80% more efficient than AODD and 50% more efficient than competitive electric technologies, displacing fossil fuel, hydraulics, and air power

Unique high-torque density design displaces gears, belts, and chains to minimize weight/size and replaces copper “rat’s nest” with a simple, low-resistance circular coil and steel stator to drive efficiencies and reduce maintenance complexity

The only electric diaphragm pump that stalls under pressure, eliminating the need for pressure sensors and additional controllers, reducing downtime caused by clogged lines or closed valves

• Wide Operating Range & Materials Compatibility
• Handles abrasives, solids, aggressive chemicals, and shear-sensitive materials
• High Efficiency
• Xtreme Torque Motor Technology
• Compact Design
• Similar in size to existing AODD pumps, with a reduced footprint due to the removal of the gearbox.
• Lower Maintenance
• Self-priming and seal-less design minimizes maintenance and spare parts costs.
• Unique Stall Feature
• Automation Ready
• I/O port enables integration with plant PLC for remote and hands-free management
• Safety Improvements
• 23% dBa noise reduction and reduced risk of airborne contaminants

Graco offers the QUANTM i30 Electric Double Diaphragm Pump in 280 configurations. See the part-number table for every Graco part number and its materials.

Part of the Graco QUANTM Electric Double Diaphragm Pumps family.

Graco Manuals & Literature

• Graco QUANTM Brochure (300885) (PDF)
• 3A8572 – QUANTM Pumps, Industrial Models, Instruction Manual (PDF)
• 3A8946 – QUANTM Pumps, Industrial Models, Parts (PDF)

Also available (ask FTS for a copy):

• 3A7637 – QUANTM Electric Motor, Repair-Parts Manual
• 3A8861 – QUANTM Leak Sensors, Instruction
• 3A8982 – QUANTM Input/Output (I/O) Cable, Instructions

Request a Quote from FTS

FTS is an authorized Graco distributor in Novi, Michigan. For pricing, availability, setup help or service on Graco QUANTM electric diaphragm pumps, call (248) 348-6700 or contact FTS for a quote.
