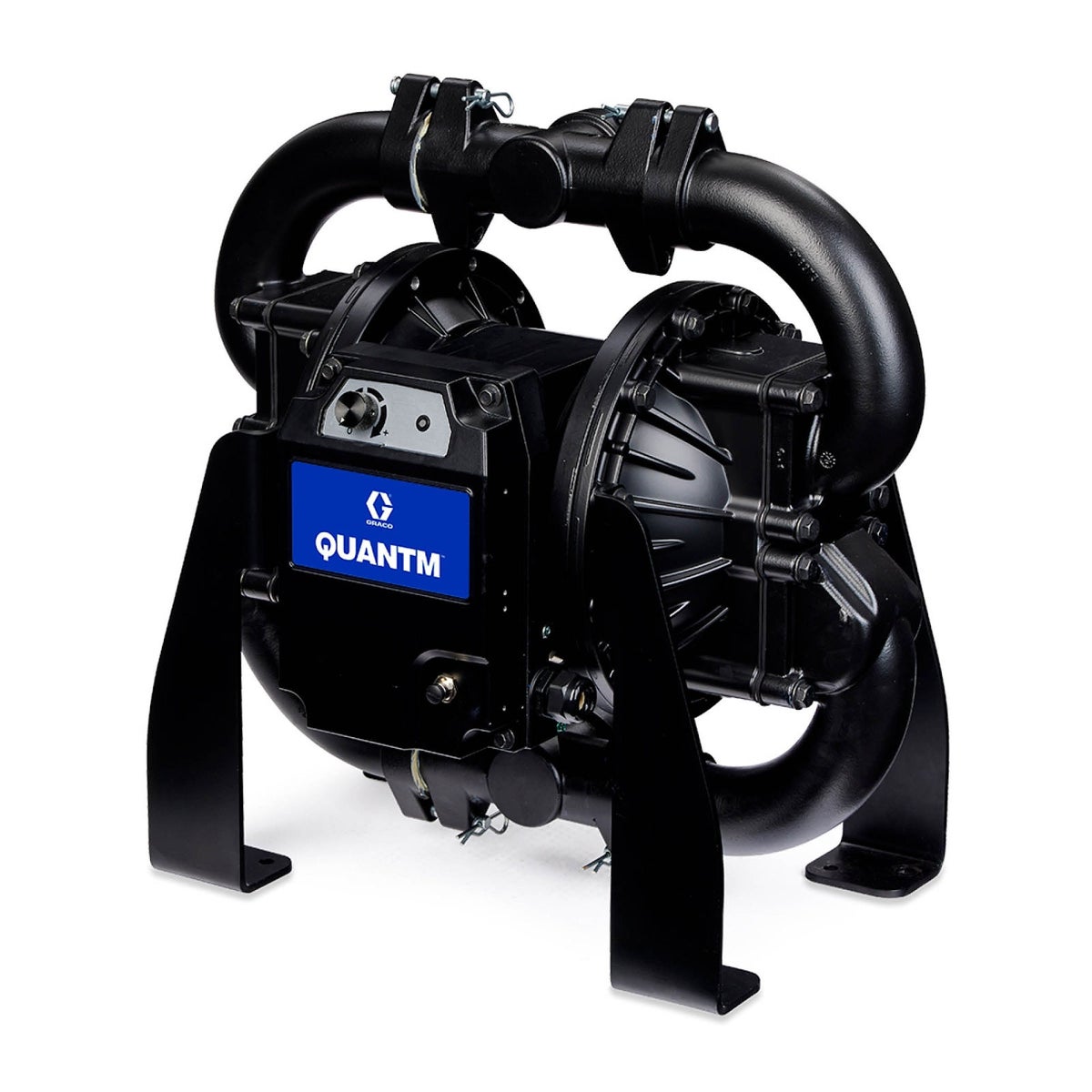

Graco QUANTM i120LP Electric Double Diaphragm Pump

The QUANTM i120LP, a 2 in. (51 mm) Graco electric operated double diaphragm (EODD) pump, combines innovative XT motor-technology with proven flap-valve reliability. It supports sustainability goals, efficiently moves line-sized solids, and reduces energy consumption—the largest variable cost for many customers. Its efficiency-driven savings can allow for full payback within a year.

With a 120 gallons per minute (450 lpm) flow rate, flappers to pass solids up to nearly 2-inches without clogging and the powerful XT electric motor and drive technology delivering up to 8x more continuous torque at low speeds than conventional motors, the i120 is built for was and trash in mines, sumps and in-plant applications.

Up to 80% more efficient than AODD and 50% more efficient than competitive electric technologies, displacing fossil fuel, hydraulics, and air power

Unique high-torque density design displaces gears, belts, and chains to minimize weight/size and replaces copper “rat’s nest” with a simple, low-resistance circular coil and steel stator to drive efficiencies and reduce maintenance complexity

The only electric diaphragm pump that stalls under pressure, eliminating the need for pressure sensors and additional controllers, reducing downtime caused by clogged lines or closed valves

• Wide Operating Range & Materials Compatibility
• Handles abrasives, solids, aggressive chemicals, and shear-sensitive materials
• High Efficiency
• Xtreme Torque Motor Technology
• Compact Design
• Similar in size to existing AODD pumps, with a reduced footprint due to the removal of the gearbox.
• Lower Maintenance
• Self-priming and seal-less design minimizes maintenance and spare parts costs.
• Unique Stall Feature
• Automation Ready
• I/O port enables integration with plant PLC for remote and hands-free management
• Safety Improvements
• 23% dBa noise reduction and reduced risk of airborne contaminants

Graco offers the QUANTM i120LP Electric Double Diaphragm Pump in 30 configurations. See the part-number table for every Graco part number and its materials.

Part of the Graco QUANTM Electric Double Diaphragm Pumps family.

Graco Manuals & Literature

• Graco QUANTM Brochure (300885) (PDF)
• 3A8572 – QUANTM Pumps, Industrial Models, Instruction Manual (PDF)
• 3A8946 – QUANTM Pumps, Industrial Models, Parts (PDF)

Also available (ask FTS for a copy):

• 3A7637 – QUANTM Electric Motor, Repair-Parts Manual
• 3A8861 – QUANTM Leak Sensors, Instruction
• 3A8982 – QUANTM Input/Output (I/O) Cable, Instructions
