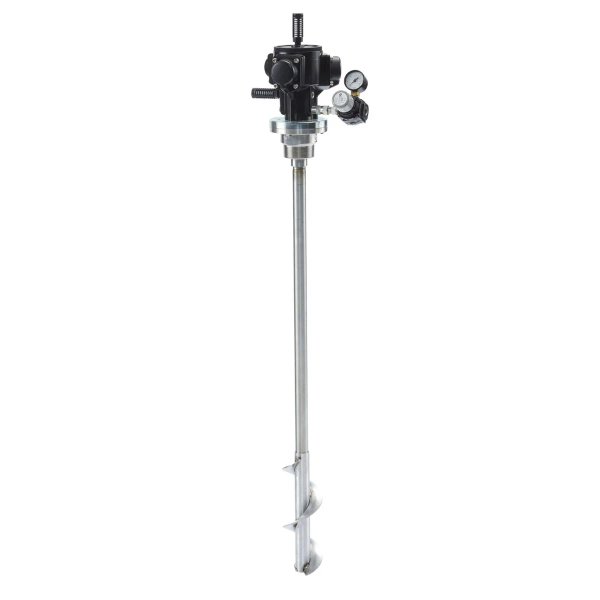

Carbon Steel Direct Drive, helix, bung mount. Part # 25C535.
Carbon Steel Direct Drive, helix, bung mount. Part # 25C535.
Product Status:
Category:
Manufacturer:
Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.
For wood (top coat, primer) and general finishing applications
Graco part number 25C535. Call Fluid Transfer Systems at (248) 348-6700 for pricing, availability and help matching the right agitator to your finishing material.
| Part Number | 25C535 |
|---|---|
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPT |
| Maximum Air Inlet Pressure (psi) | 70 |
| Maximum Speed (RPM) | 500 |
| Maximum Viscosity (cP) | 1000 |
| Maximum Working Pressure (psi) | 70 |
| Motor Type | Pneumatic - Radial Piston |
| Type | Agitator |
| Weight (lb) | 16 |
| Wetted Material | Carbon Steel, Fluoroelastomer, Acetal |
Specifications as published by Graco for part 25C535.
