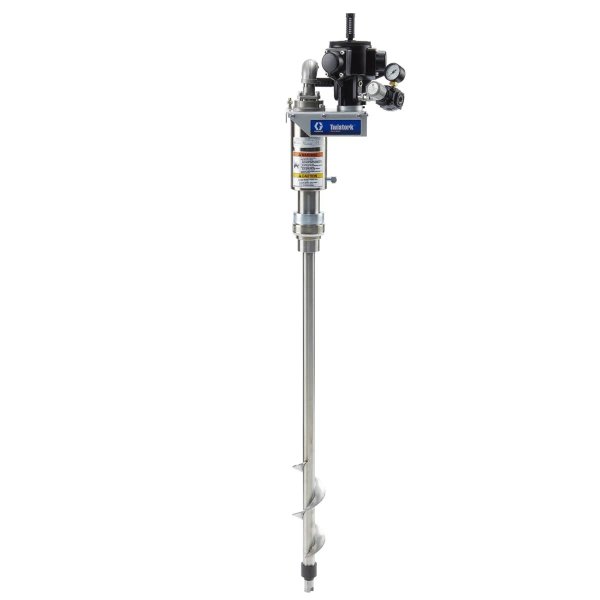

Twistork Helix Mixer with suction feature – stainless steel, bung mount, belt drive. Part # 25C532.
Twistork Helix Mixer with suction feature – stainless steel, bung mount, belt drive. Part # 25C532.
Product Status:
Category:
Manufacturer:
Rotate agitator clockwise or counter clockwise for optimal mixing.
For wood (top coat, primer) and general finishing applications
Graco part number 25C532 for use with closed-head, bung-type, 55 gallon (208 liter) drum. Call Fluid Transfer Systems at (248) 348-6700 for pricing, availability and help matching the right agitator to your finishing material.
| Part Number | 25C532 |
|---|---|
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPT |
| For Use With | Closed-head, Bung-type, 55 Gallon (208 Liter) Drum |
| Maximum Air Inlet Pressure (psi) | 70 |
| Maximum Speed (RPM) | 500 |
| Maximum Viscosity (cP) | 1000 |
| Maximum Working Pressure (psi) | 70 |
| Model | Twistork |
| Motor Type | Pneumatic - Radial Piston |
| Type | Agitator |
| Weight (lb) | 26 |
| Wetted Material | Stainless Steel, Graphite-Filled PTFE, Acetal AF, Rulon® LR |
Specifications as published by Graco for part 25C532.
