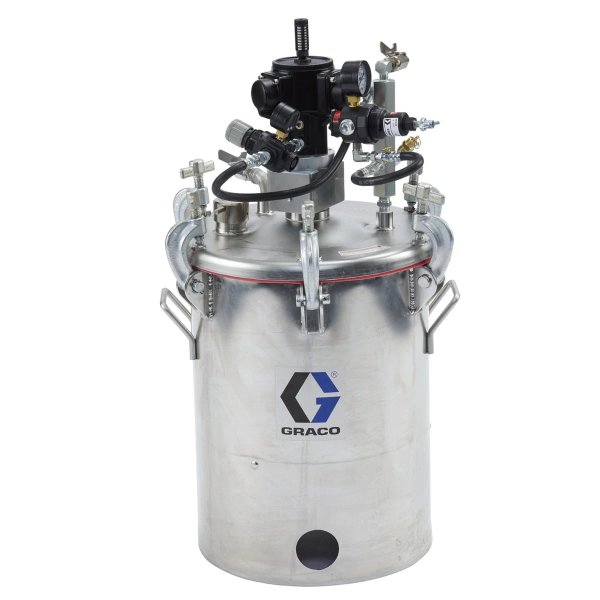

Agitator with pressure tank, 5 gallon (19 L)

Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.

Product Status:

Available

Manufacturer:

 71 total views,  1 views today

graco pressure tank w agitator
Agitator with pressure tank, 5 gallon (19 L)

Description:

Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.

For wood (top coat, primer) and general finishing applications

  • Use less compressed air than most rotary vane air motors.
  • Install quickly and operate quietly.
  • Maintain easily – air line lubrication not required.
  • Add DataTrak for speed monitoring and over-speed alert.
  • Control speed with Graco's Intelligent Paint Kitchen (IPK).
  • Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA
Technical Specifications
Air Inlet Size (in) 1/4
Air Inlet Thread Type NPT
Includes 5 Gallon Pressure Tank
Maximum Air Inlet Pressure (psi) 100
Maximum Speed (RPM) 150
Maximum Viscosity (cP) 1000
Maximum Working Pressure (psi) 100
Motor Type Pneumatic - Radial Piston
Type Agitator
Weight (lb) 66
Wetted Material Stainless Steel, PTFE, Nylon, Bronze
