Graco 25C533 Radial Piston Direct Drive Agitator, Carbon Steel, 30/55 Gallon, 2 Propellers

Manufacturer Part Number: 25C533

Carbon Steel Direct Drive, 30/55 gallon, 2 aluminum 5.5-inch (14 cm) propellers. Part # 25C533.

Product Status:

Available

Category:

Manufacturer:

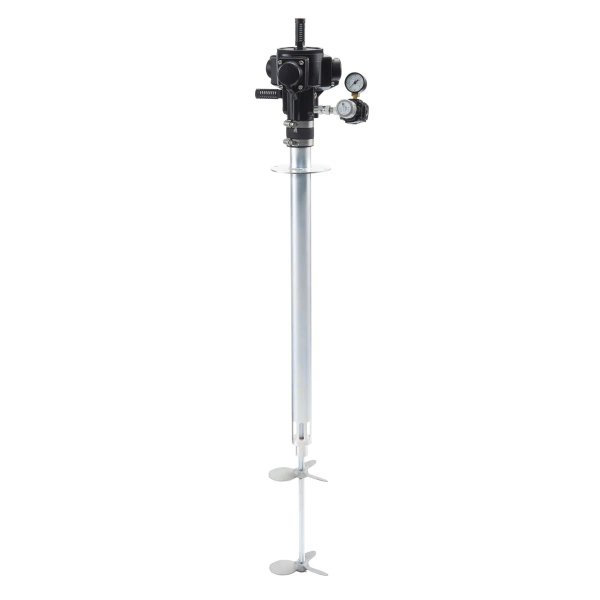

Graco radial piston carbon steel direct drive agitator (25C533)
Graco 25C533 Radial Piston Direct Drive Agitator, Carbon Steel, 30/55 Gallon, 2 Propellers

Description:

Carbon Steel Direct Drive, 30/55 gallon, 2 aluminum 5.5-inch (14 cm) propellers

Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.

For wood (top coat, primer) and general finishing applications

  • Agitator mounts directly to mix tank or drum cover and rotates clockwise
  • Dual propeller ensures efficient and thorough mixing
  • Easy adjustment knob fine-tunes agitator speed to ideal mixing parameters
  • Add DataTrak for speed monitoring and over-speed alert
  • Control speed with Graco's Intelligent Paint Kitchen (IPK)
  • Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA

Graco part number 25C533. Call Fluid Transfer Systems at (248) 348-6700 for pricing, availability and help matching the right agitator to your finishing material.

What makes 25C533 different

The 25C533 is an agitator with a 70 psi maximum working pressure and a 500 RPM maximum speed. It weighs 12 lb.

Features:

Technical Specifications

Part Number25C533
Air Inlet Size (in)1/4
Air Inlet Thread TypeNPT
Maximum Air Inlet Pressure (psi)70
Maximum Speed (RPM)500
Maximum Viscosity (cP)1000
Maximum Working Pressure (psi)70
Motor TypePneumatic - Radial Piston
TypeAgitator
Weight (lb)12
Wetted MaterialCarbon Steel, Aluminum, PTFE

Specifications as published by Graco for part 25C533.

Where to Buy Graco 25C533 Radial Piston Direct Drive Agitator in Michigan, Indiana and Ohio

Fluid Transfer Systems, Inc. (FTS) is an authorized Graco distributor and Authorized Repair & Service Center in Novi, Michigan. Manufacturers in Michigan, Indiana and Ohio call FTS for the Graco 25C533 Radial Piston Direct Drive Agitator, Carbon Steel, 30/55 Gallon, 2 Propellers. Third-generation family owned since 1971, FTS serves all three states from one location at 22545 Heslip Drive, Novi, MI 48375.

From Novi, FTS also serves Graco customers in Michigan, Indiana and Ohio. See who to call for paint finishing equipment in Michigan, Indiana and Ohio.

For pricing and availability, call (248) 348-6700 (Monday to Friday, 8 AM to 5 PM Eastern) or request a quote.

3A4792EN-R AIR-DRIVEN AGITATORS INSTRUCTIONS-PARTS LIST
345130EN-D RADIAL PISTON AGITATOR
