Overview

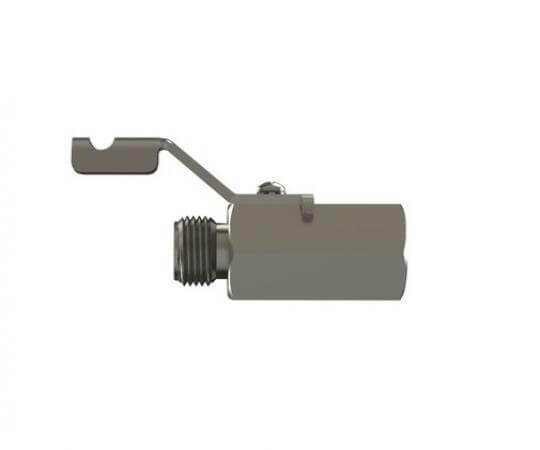

Hosco SSBV Compact & HBV Ultra Compact Ball Valves provide manual dispense control to a paint station or dispense point.

Eliminating the nagging “dirt in paint” problems starts with having the paint drops comprised of Hosco smooth-bore, cavity-free, micro-finished components. Hosco valves are all stainless steel, smooth-bore, fully encapsulated, and cavity-free allowing them to flush easily and quickly so there is no place for dried paint to hide. Our valve family is available in every configuration needed in paint circulation drop stations from 1/4″ to 5/8″ or 8mm to 14mm sizes- threaded, bulkhead threaded, compression, bulkhead compression, and tube up to 18″ long. Our valves include adjustable packing for cradle to grave service in a paint shop’s 25 year life, with PTFE packing and seats that provide chemical resistance to all of the coatings used or anticipated for use in the future.

Valve Types & Part Numbers

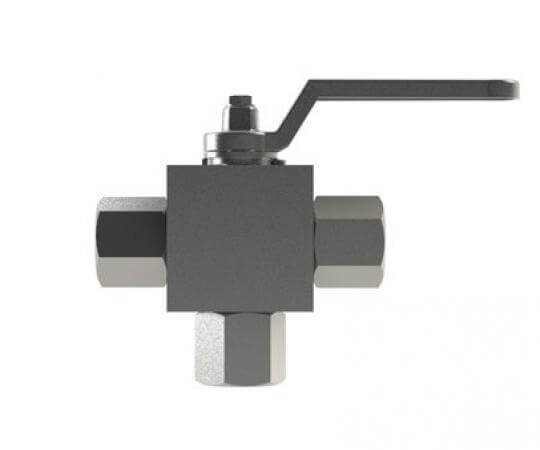

3 Way Ball Valve

Part Number	Description / Size
SSBV-3	3-Way Ball Valve, Female Tapered Pipe Thread

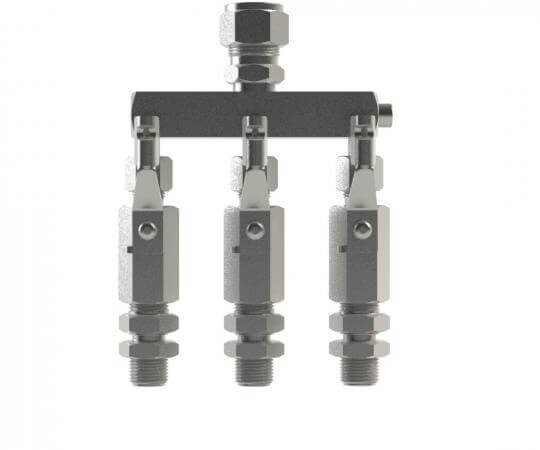

Automation Valve Assemblies - HRS

Part Number	Description / Size
HRS-200	Two Outlet Manifold
HRS-200L	Two Outlet Manifold
HRS-201	Two Outlet Manifold
HRS-300	Three Outlet Manifold
HRS-300L	Three Outlet Manifold
HRS-301	Three Outlet Manifold

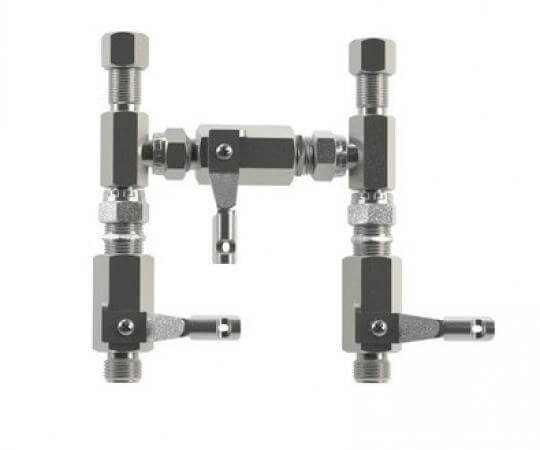

Ball Valve H Assembly

Part Number	Description / Size
H-100A	3/8″ BTF x 3/8″ NPS
H-200	1/2″ BTF x 3/8″ NPS (M), Bulkhead
H-300	3/8″ BTF x 3/8″ NPS (M), Reverse Bulkhead

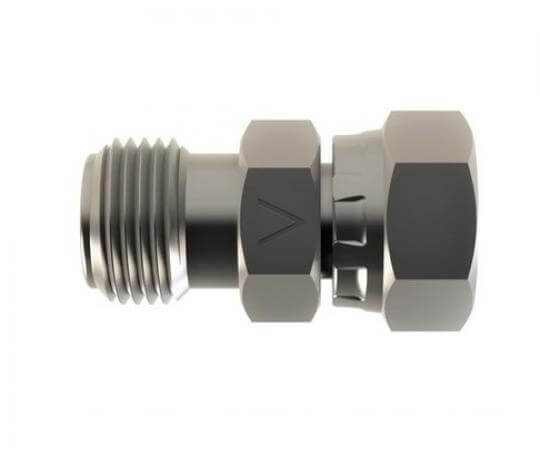

Check Valves

Part Number	Description / Size
SSCV-6	3/8″ NPS (M) x 3/8″ NPT (F)
SSCV-6B	3/8″ BSP (M) x 3/8″ NPT (F)
6SN-6CV	3/8″ NPS (M) x 3/8″ NPS (F)
SSCV-6T	3/8″ NPT (M) x 3/8″ NPT (F)
SSCV-6BT	3/8″ NPT (M) x 3/8″ BSPT (F)
6CV-6SN	3/8″ NPS (M) x 3/8″ NPS (F)

HBV Series Ball Valves

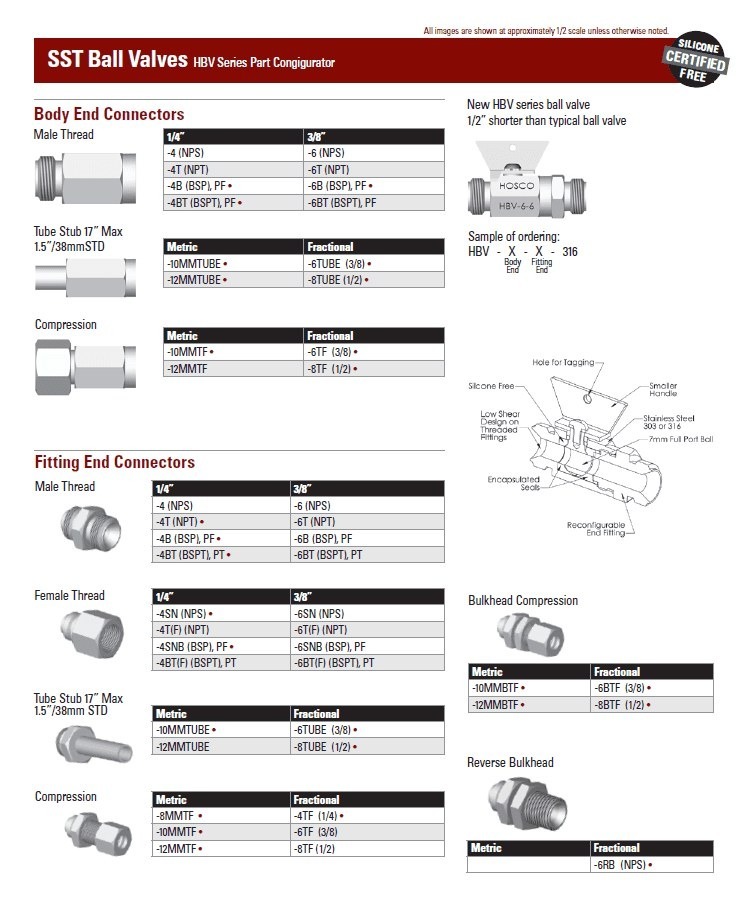

New HBV series ball valve, 1/2″ shorter than a typical ball valve. Binks’ HBV Series part configurator is shown below. Sample of ordering: HBV - (Body End) - (Fitting End) - 316. Items marked • are special order.

SSBV Series Ball Valves

Part Number	Description / Size
SSBV-6-316
SSBV-6-6RB-316
SSBV-6T-6BTF-316
SSBV-6T-6T-316
SSBV-6TUBE-6T-316
SSBV-4-316	1/4″ NPS (M) x 3/8″ NPT (F)
SSBV-6-316	3/8″ NPS (M) x 3/8″ NPT (F)
SSBV-6-6SN-316	3/8″ NPS (M) x 3/8″ NPS (F)
SSBV-4T-316	1/4″ NPS (M) x 3/8″ NPT (F)
SSBV-4T-4T(F)-316	1/4″ NPT (M) x 1/4″ NPT (F)
SSBV-6T-316	3/8″ NPT (M) x 3/8″ NPT (F)
SSBV-6-6-316	3/8″ NPS (M) x 3/8″ NPS (M)
SSBV-6B-6B-316	3/8″ BSP (M) x 3/8″ BSP (M)
SSBV-6-4T-316	3/8″ NPS (M) x 1/4″ NPT (M)
SSBV-6-6T-316	3/8″ NPS (M) x 3/8″ NPT (M)
SSBV-4T-4-316	1/4″ NPT (M) x 1/4″ NPS (M)
SSBV-6T-6-316	3/8″ NPT (M) x 3/8″ NPS (M)
SSBV-4T-4T-316	1/4″ NPT (M) x 1/4″ NPT (M)
SSBV-6T-6T-316	3/8″ NPT (M) x 3/8″ NPT (M)
SSBV-6TF-6TF-316	3/8″ TF x 3/8″ TF
SSBV-8TF-8TF-316	1/2″ TF x 1/2″ TF
SSBV-10MMTF-10MMTF	10MM TF x 10MM TF
SSBV-12MMTF-12MMTF	12MM TF x 12MM TF
SSBV-6-6BTF-316	3/8″ (M) NPS x 3/8″ BTF, Bulkhead
SSBV-6-8BTF-316	3/8″ (M) NPS x 1/2″ BTF, Bulkhead
SSBV-6T-6BTF-316	3/8″ NPT x 3/8″ BTF, Bulkhead
SSBV-6T-8BTF-316	3/8″ NPT x 1/2″ BTF, Bulkhead
SSBV-6TF-6BTF-316	3/8″ TF x 3/8″ BTF, Bulkhead
SSBV-8TF-8BTF-316	1/2″ TF x 1/2″ BTF, Bulkhead
SSBV-6-6RB-316	3/8″ NPS (M) x 3/8″ NPS (M), Reverse Bulkhead
SSBV-6T-6RB-316	3/8″ NPT (M) x 3/8″ NPS (M) Reverse Bulkhead
SSBV-6TUBE-6TF-316	3/8″ TUBE x 3/8″ TF
SSBV-6TUBE-8TF-316	3/8″ TUBE x 1/2″ TF
SSBV-6TUBE-6-316	3/8″ TUBE STUB x 3/8″ NPS (M)
SSBV-6TUBE-6T-316	3/8″ TUBE STUB x 3/8″ NPT (M)
SSBV-6TF-6RB-316	3/8″ TF x 3/8″ NPS (M), Reverse Bulkhead
SSBV-8TF-6RB-316	1/2″ TF x 3/8″ NPS (M), Reverse Bulkhead
SSBV-CLIPLOCK	Lockable assembly to prevent accidental handle actuation which can be used to lock the ball valve open or closed. This 3-piece assemble comes with Saddle Body, lanyard, and Locking Tab and can be added to any existing Hosco SSBV Ball Valve or supplied with new valves.
