Fittings and adaptors available in a wide variety of configurations. Hosco stainless steel (SST) fittings and adapters, listed by Binks under SKU 194311.
Fittings and adaptors available in a wide variety of configurations. Hosco stainless steel (SST) fittings and adapters, listed by Binks under SKU 194311.
Product Status:
Manufacturer:
Fittings and Adaptors available in a wide variety of configurations. Full line of stainless steel (SST) Fittings and Adapters constructed using smooth bore, cavity free construction.
Hosco Fittings and Adapters are available in a wide variety of configurations with “in-line”, 45 and 90 degree angle connection points. All of the Fittings and Adapters are constructed using the “smooth bore, cavity free” features and have large bore circulation flow passageways as standard to minimize shear and resultant pressure loss. Special manufacturing techniques also provide cavity free operation to prevent material “pack out” or contamination and easy to flush and clean in place. Connection points are NPT Male or Female ends from 1/8″ to 1/2″, NPS Male in 1/8″ to 3/8″ or Female (Swivel Nut) in 1/4″ or 3/8″, JIC (M) ends from 1/8″ thru 3/8″, Compression ends from 1/4″ thru 5/8″ (10mm, 12mm, 14mm, 16mm, 18mm plus DIN style in 13mm and 15mm) and Tube Stub ends in 1/4″, 5/16″, 3/8″ or 1/2″ (10mm, 12mm, 14mm, 16mm). In addition, there are many bulkhead versions and some reverse bulkhead versions as well.
| Part Number | Description / Size |
|---|---|

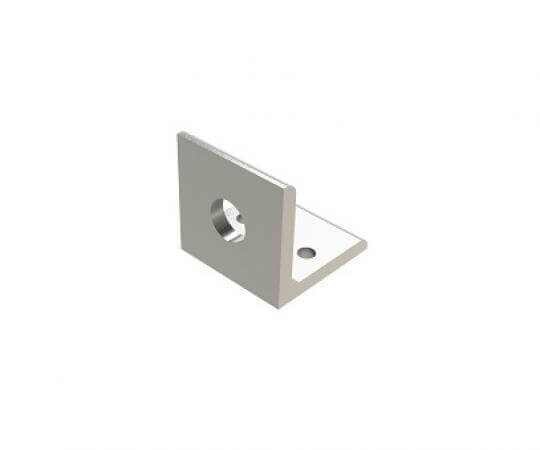

| BRKT | Aluminum Bracket |
| BRKT-6-6RB | Universal Mounting Bracket. 3/8″ NPS(M) Both sides. |
| BRKT-6T-6RB | Universal Mounting Bracket. 3/8″ NPT(M) X 3/8″ NPS(M) |
| BRKT-6TF-6RB | Universal Mounting Bracket. 3/8″ TF X 3/8″ NPS |

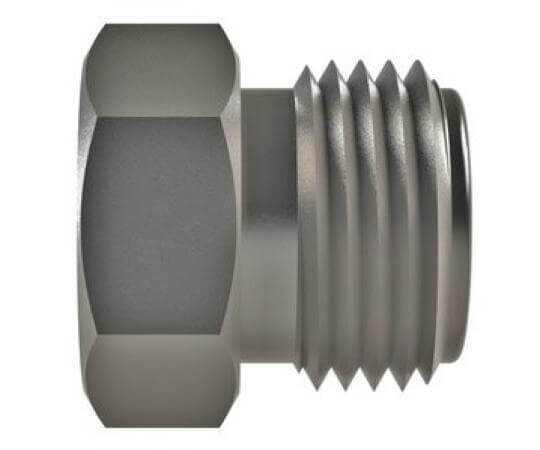

| Part Number | Description / Size |
|---|---|
| 4-CAP | 1/4″ NPS (F), CAP |
| 4B-CAP | 1/4″ BSP (F), CAP |
| 6-CAP | 3/8″ NPS (F), CAP |
| 6B-CAP | 3/8″ BSP (F), CAP |
| 4-PLUG | 1/4″ NPS (M), PLUG |
| 6-PLUG | 3/8″ NPS (M), PLUG |
| 4T-PLUG | 1/4″ NPT (M), PLUG |

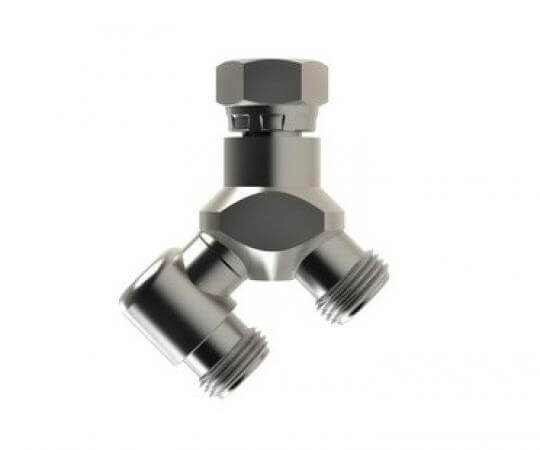

| Part Number | Description / Size |
|---|---|
| RY-4-312 | 3/8″ NPS (F) x 1/4″ NPS (M) |
| RY-6-312 | 3/8″ NPS (F) x 3/8″ NPS (M) |
| RY-6B-312 | 3/8″ BSP (F) x 3/8″ BSP (M) |
| RY-4Y-312 | 1/4″ NPS (F) x 3/8″ NPS (M) |
| RY-4YB-312 | 1/4″ BSP (M) x 3/8″ BSP (F) |
| RY-6Y-312 | 3/8″ NPS (F) x 3/8″ NPS (M) |
| RY-6Y-312-B | 3/8″ BSP (F) x 3/8″ BSP (M) |
| HCU-6 | 3/8″ NPS (F) x 3/8″ NPS (M) |
| HCU-6B | 3/8″ BSP (F) x 3/8″ BSP (M) |
| 6SN-6-6-6 | 3/8″ NPS (F) x 3/8″ NPS (M) |
| RY-6TFY-312 | 3/8″ NPS (F) x 3/8″ TF |
| RY-6TF-6TF-6TF | 3/8″ TF x 3/8″ TF |
| RY-8TF-6TF-6TF | 3/8″ TF x 1/2″ TF |
| RY-8TF-8TF-8TF | 1/2″ TF x 1/2″ TF |
| HY-8-6-6 | 1/2″ OD x 3/8″ OD |
| HY-12-8-8 | 1/2″ OD x 3/4″ OD |
| RY-6TF-6-6 | 3/8″ TF x 3/8″ NPS(M) |
| RY-8TF-6-6 | 1/2″ TF x 3/8″ NPS(M) |
| RY-6-187-ST | 3/8″ NPS(F) x 3/8″ NPS(M) |

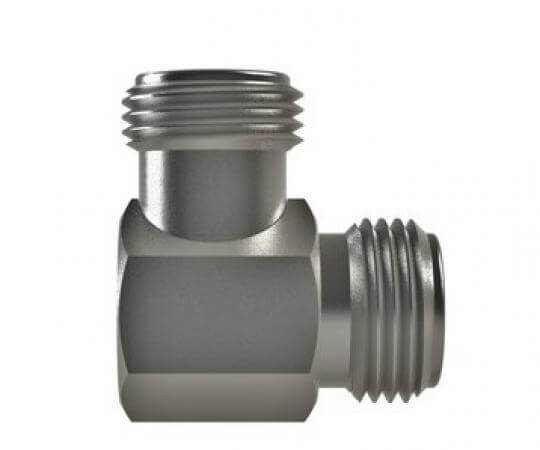

| Part Number | Description / Size |
|---|---|
| 6-6-45 | 3/8″ NPS x 3/8″ NPS, 45 degree angle |
| 4-4-90 | 1/4″ NPS x 1/4″ NPS, 90 degree angle |
| 4-4B-90 | 1/4″ NPS (M) x 1/4″ BSP (M), 90 degree angle |
| 4B-4B-90 | 1/4″ BSP (M)x 1/4″ BSP (M), 90 degree angle |
| 6-6-90 | 3/8″ NPS (M) x 3/8″ NPS (M), 90 degree angle |
| 2T-6-45 | 1/8″ NPT (M) x 3/8″ NPS (M), 45 degree angle |
| 4T-6-45 | 1/4″ NPT (M) x 3/8″ NPS (M), 45 degree angle |
| 6T-6-45 | 3/8″ NPT (M) x 3/8″ NPS (M), 45 degree angle |
| 2T-4-90 | 1/8″ NPT (M) x 1/4″ NPS (M), 90 degree angle |
| 2T-4B-90 | 1/8″ NPT (M) x 1/4″ BSP (M), 90 degree angle |
| 2T-6-90 | 1/8″ NPT (M) x 3/8″ NPS (M), 90 degree angle |
| 4T-4-90 | 1/4″ NPT (M) x 1/4″ NPS (M), 90 degree angle |
| 4T-4B-90 | 1/4″ NPT (M) x 1/4″ BSP (M), 90 degree angle |
| 4T-6-90 | 1/4″ NPT (M) x 3/8″ NPS (M), 90 degree angle |
| 6T-4-90 | 3/8″ NPT (M) x 1/4″ NPS (M), 90 degree angle |
| 6T-6-90 | 3/8″ NPT (M) x 3/8″ NPS (M), 90 degree angle |
| 4SN-4-90 | 1/4″ NPS (F) x 1/4″ NPS (M), 90 degree angle |
| 4SN-6-90 | 1/4″ NPS (F) x 3/8″ NPS (M), 90 degree angle |
| 4SNB-4B-90 | 1/4″ BSP (F) x 1/4″ BSP (M), 90 degree angle |
| 6SN-4-90 | 3/8″ NPS (F) x 1/4″ NPS (M), 90 degree angle |
| 6SN-6-90 | 3/8″ NPS (F) x 3/8″ NPS (M), 90 degree angle |
| 6SN-6B-90 | 3/8″ NPS (F) x 3/8″ BSP (M), 90 degree angle |
| 6SNB-6B-90 | 3/8″ BSP (F) x 3/8″ BSP (M), 90 degree angle |
| 4SN-4-45 | 1/4″ NPS (F) x 1/4″ NPS (M), 45 degree angle |
| 6SN-6-45 | 3/8″ NPS (F) x 3/8″ NPS (M), 45 degree angle |
| 6SN-6B-45 | 3/8″ NPS (F) x 3/8″ BSP (M), 45 degree angle |
| 4SN-4T-90 | 1/4″ NPS (F) x 1/4″ NPT (M), 90 degree angle |
| 4SN-6T-90 | 1/4″ NPS (F) x 3/8″ NPT (M), 90 degree angle |
| 6SN-4T-90 | 3/8″ NPS (F) x 1/4″ NPT (M), 90 degree angle |
| 6SN-6T-90 | 3/8″ NPS (F) x 3/8″ NPT(M), 90 degree angle |
| 6-6TF-90 | 3/8″ NPS (F) x 3/8″ TF, 90 degree angle |
| 6-8TF-90 | 3/8″ NPS (F) x 1/2″ TF, 90 degree angle |
| 6SN-10MMTF-90 | 3/8″ NPS (F) x 10MM TF, 90 degree angle |
| 6SN-6TF-90 | 3/8″ NPS (F) x 3/8″ TF, 90 degree angle |
| 6SN-8TF-90 | 3/8″ NPS (F) x 1/2″ TF, 90 degree angle |
| 6-6BTF-90 | 3/8″ NPS (M) x 3/8″ BTF, 90 degree angle, Bulkhead |
| 6SN-10MMBTF-90 | 3/8″ NPS (F) x 10MM BTF, 90 degree angle, Bulkhead |
| 6SN-6BTF-90 | 3/8″ NPS (F) x 3/8″ BTF, 90 degree angle, Bulkhead |
| 6-6BTF-45 | 3/8″ NPS (M) x 3/8″ BTF, 45 degree angle, Bulkhead |
| 6SN-6BTF-45 | 3/8″ NPS (F) x 3/8″ BTF, 45 degree angle, Bulkhead |

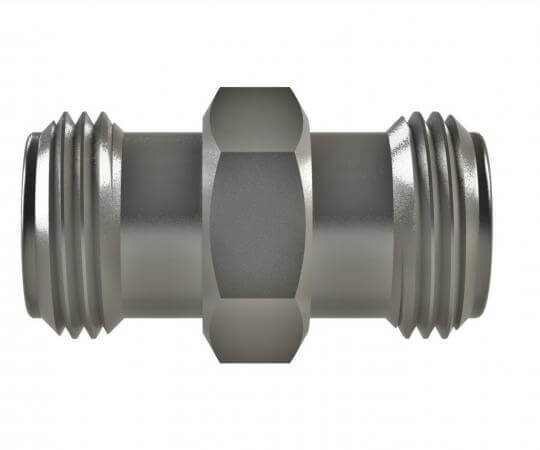

| Part Number | Description / Size |
|---|---|
| 4-4 | 1/4″ NPS (M) x 1/4″ NPS (M) |
| 4B-4B | 1/4″ BSP (M) x 1/4″ BSP (M) |
| 4-4B | 1/4″ NPS (M) x 1/4″ BSP (M) |
| 4-6 | 1/4″ NPS (M) x 3/8″ NPS (M) |
| 4-6B | 1/4″ NPS (M) x 3/8″ BSP (M) |
| 4B-6 | 1/4″ BSP (M) x 3/8″ NPS (M) |
| 4B-6B | 1/4″ BSP (M) x 3/8″ NPS (M) |
| 6-6 | 3/8″ NPS (M) x 3/8″ NPS (M) |
| 6B-6B | 3/8″ BSP (M) x 3/8″ BSP (M) |
| 6-6B | 3/8″ NPS (M) x 3/8″ BSP (M) |
| 2T-2T | 1/8″ NPT (M) x 1/8″ NPT (M) |
| 2T-4T | 1/8″ NPT (M) x 1/4″ NPT (M) |
| 4T-4T | 1/4″ NPT (M) x 1/4″ NPT (M) |
| 6T-4T | 3/8″ NPT (M) x 1/4″ NPT (M) |
| 6T-6T | 3/8″ NPT (M) x 3/8″ NPT (M) |
| 8T-4T | 1/2″ NPT (M) x 1/4″ NPT (M) |
| 8T-6T | 1/2″ NPT (M) x 3/8″ NPT (M) |
| 8T-8T | 1/2″ NPT (M) x 1/2″ NPT (M) |
| 2T-4 | 1/8″ NPT (M) x 1/4″ NPS (M) |
| 2BT-6 | 1/8″ BSPT (M) x 3/8″ NPS (M) |
| 2T-6 | 1/8″NPT (M) x 3/8″ NPS (M) |
| 2T-6B | 1/8″ NPT (M) x 3/8″ BSP (M) |
| 4T-4 | 1/4″ NPT (M) x 1/4″ NPS (M) |
| 4T-4B | 1/4″ NPT (M) x 1/4″ BSP (M) |
| 4T-6 | 1/4″ NPT (M) x 3/8″ NPS (M) |
| 4T-6B | 1/4″ NPT (M) x 3/8″ BSP (M) |
| 6T-4 | 3/8″ NPT (M) x 1/4″ NPS (M) |
| 6BT-4 | 3/8″ BSPT (M) x 1/4″ NPS (M) |
| 6T-4B | 3/8″ NPT (M) x 1/4″ BSP (M) |
| 6T-6 | 3/8″ NPT (M) x 3/8″ NPS (M) |
| 6T-6B | 3/8″ NPT (M) x 3/8″ BSP (M) |
| 8T-6 | 1/2″ NPT (M) x 3/8″ NPS (M) |
| 8T-6B | 1/2″ NPT (M) x 3/8″ BSP (M) |
| 4-4RB | 1/4″ NPS (M) x 1/4″ NPS (M), Bulkhead |
| 4B-4RBB | 1/4″ BSP (M) x 1/4″ BSP (M), Bulkhead |
| 6-6RB | 3/8″ NPS (M) x 3/8″ NPS (M), Bulkhead |
| 6B-6RBB | 3/8″ BSP (M) x 3/8″ BSP (M), Bulkhead |
| 6SN-6RB | 3/8″ NPS (M)x 3/8″ NPS (M), Bulkhead |
| 6SNB-6RB | 3/8″ BSP (M) x 3/8″ NPS (M), Bulkhead |
| 4T-4RB | 1/4″ NPT (M) x 1/4″ NPS (M), Bulkhead |
| 6T-4RB | 3/8″ NPT (M) x 1/4″ NPS (M), Bulkhead |
| 6T-6RB | 3/8″ NPT (M) x 3/8″ NPS (M), Bulkhead |
| 4-4JIC | 1/4″ NPS (M) x 1/4″ JIC (M) |
| 4B-4JIC | 1/4″ BSP (M) x 1/4″ JIC (M) |
| 4-6JIC | 1/4″ NPS (M) x 3/8″ JIC (M) |
| 6-4JIC | 3/8″ NPS (M) x 1/4″ JIC (M) |
| 6-6JIC | 3/8″ NPS (M) x 3/8″ JIC (M) |
| 4SN-4JIC | 1/4″ NPS (F) x 1/4″ JIC (M) |
| 4SN-6JIC | 1/4″ NPS (F) x 3/8″ JIC (M) |
| 6SN-6JIC | 3/8″ NPS (F) x 3/8″ JIC (M) |
| 4SN-4SN | 1/4″ NPS (F) x 1/4″ NPS (F) |
| 4SNB-4SNB | 1/4″ BSP (F) x 1/4″ BSP (F) |
| 4SN-6SN | 1/4″ NPS (F) x 3/8″ NPS (F) |
| 4SNB-6SN | 1/4″ BSP (F) x 3/8″ NPS (F) |
| 4SNB-6SNB | 1/4″ BSP (F) x 3/8″ BSP (F) |
| 6SN-6SN | 3/8″ NPS (F) x 3/8″ NPS (F) |
| 6SNB-6SNB | 3/8″ BSP (F) x 3/8″ BSP (F) |
| 4SN-2T | 1/4″ NPS (F) x 1/8″ NPT (M) |
| 4SN-4T | 1/4″ NPS (F) x 1/4″ NPT (M) |
| 4SN-4BT | 1/4″ NPS (F) x 1/4″ BSPT (M) |
| 4SN-6T | 1/4″ NPS (F) x 3/8″ NPT (M) |
| 4SNB-6T | 1/4″ BSP (F) x 3/8″ NPT (M) |
| 6SN-2T | 3/8″ NPS (F) x 1/8″ NPT (M) |
| 6SN-4T | 3/8″ NPS (F) x 1/4″ NPT (M) |
| 6SNB-4BT | 3/8″ BSP (F) x 1/4″ BSPT (M) |
| 6SN-6T | 3/8″ NPS (F) x 3/8″ NPT (M) |
| 6SNB-6T | 3/8″ BSP (F) x 3/8″ NPT (M) |
| 6SN-6BT | 3/8″ NPS (F) x 3/8″ BSPT (M) |
| 6SN-8T | 3/8″ NPS (F) x 1/2″ NPT (M) |
| 4SN-4 | 1/4″ NPS (F) x 1/4″ NPS (M) |
| 4SN-4B | 1/4″ NPS (F) x 1/4″ BSP (M) |
| 4SNB-4 | 1/4″ BSP (F) x 1/4″ NPS (M) |
| 4SNB-4B | 1/4″ BSP (F) x 1/4″ BSP (M) |
| 4SN-6 | 1/4″ NPS (F) x 3/8″ NPS (M) |
| 4SN-6B | 1/4″ NPS (F) x 3/8″ BSP (M) |
| 4SNB-6B | 1/4″ BSP (F) x 3/8″ BSP (M) |
| 6SN-4 | 3/8″ NPS (F) x 1/4″ NPS (M) |
| 6SN-4B | 3/8″ NPS (F) x 1/4″ BSP (M) |
| 6SNB-4 | 3/8″ BSP (F) x 1/4″ NPS (M) |
| 6SNB-4B | 3/8″ BSP (F) x 1/4″ BSP (M) |
| 6SN-6 | 3/8″ NPS (F) x 3/8″ NPS (M) |
| 6SN-6B | 3/8″ NPS (F) x 3/8″ BSP (M) |
| 4SN-4T(F) | 1/4″ NPS (F) x 1/4″ NPT (F) |
| 4SNB-4T(F) | 1/4″ BSP (F) x 1/4″ NPT (F) |
| 6SN-2T(F) | 3/8″ NPS (F) x 1/8″ NPT (F) |
| 6SNB-2T(F) | 3/8″ BSP (F) x 1/8″ NPT (F) |
| 6SN-4T(F) | 3/8″ NPS (F) x 1/4″ NPT (F) |
| 6SNB-4T(F) | 3/8″ BSP (F) x 1/4″ NPT (F) |
| 6SN-6T(F) | 3/8″ NPS (F) x 3/8″ NPT (F) |
| 6SNB-6T(F) | 3/8″ BSP (F) x 3/8″ NPT (F) |
| 4-4T(F) | 1/4″ NPS (M) x 1/4″ NPT (F) |
| 4B-4T(F) | 1/4″ BSP (M) x 1/4″ NPT (F) |
| 6-2T(F) | 3/8″ NPS (M) x 1/8″ NPT (F) |
| 6-4T(F) | 3/8″ NPS (M) x 1/4″ NPT (F) |
| 6-6T(F) | 3/8″ NPS (M) x 3/8″ NPT (F) |
| 6B-4T(F) | 3/8″ BSP (M) x 1/4″ NPT (F) |
| 4-6TF | 1/4″ NPS (M) x 3/8″ TF |
| 6-6TF | 3/8″ NPS (M) x 3/8″ TF |
| 6-8TF | 3/8″ NPS (M) x 1/2″ TF |
| 6TUBE-4 | 3/8″ TUBE X 1/4″ NPS (M) |
| 6-6TUBE | 3/8″ NPS (M) x 3/8″ TUBE |
| 6-8TUBE | 3/8″ NPS (M) x 1/2″ TUBE |
| 6-10MMTUBE | 3/8″ NPS (M) x 10MM TUBE |
| 6-12MMTUBE | 3/8″ NPS (M) x 12MM TUBE |
| 4SN-4TF | 1/4″ NPS (F) x 1/4″ TF |
| 6SN-4TF | 3/8″ NPS (F) x 1/4″ TF |
| 6SN-6TF | 3/8″ NPS (F) x 3/8″ TF |
| 6SN-8TF | 3/8″ NPS (F) x 1/2″ TF |
| 6SNB-6TF | 3/8″ BSP (F) x 3/8″ TF |
| 6SNB-8TF | 3/8″ BSP (F) x 1/2″ TF |
| 6SN-10MMTF | 3/8″ NPS (F) x 10MM TF |
| 6SN-12MMTF | 3/8″ NPS (F) x 12MM TF |
| 6SN-6BTF | 3/8″ NPS (F) x 3/8″ BTF, Bulkhead |
| 6SN-8BTF | 3/8″ NPS (F) x 1/2″ BTF, Bulkhead |
| 6SN-10MMBTF | 3/8″ NPS (F) x 10MM BTF, Bulkhead |
| 6SN-12MMBTF | 3/8″ NPS (F) x 12MM BTF, Bulkhead |
| 6TF-6RB | 3/8″ TF x 3/8″ NPS (M) , Reverse Bulkhead |
| 8TF-6RB | 1/2″ TF x 3/8″ NPS (M) , Reverse Bulkhead |
| 4-2BSP | 1/4″ NPS (M) x 1/8″ BSPP (M) |
| 4-2BSPP | 1/4″ NPS (M) x 1/8″ BSPP (M) W/30 EXTERNAL SEAT |
| 4-4BSP | 1/4″ NPS (M) x 1/4″ BSPP (M) |
| 4-4BSPP | 1/4″ NPS (M) x 1/4″ BSPP (M) W/30 DEG EXTERNAL SEAT |
| 6-2BSP | 3/8″ NPS (M) x 1/8″ BSPP (M) |
| 6-4BSP-IGUN | 3/8″ NPS (M) x 1/4″ BSPP (M) IGUN |
| DR1-2-4 | (Brand-Specific) 1/4″ NPS (M) x DR1 Inlet |
| 4-2BSP-AWS | (Brand-Specific) 1/4″ NPS (M) x 1/8″ BSP (M) |
| 4-4BSP-AWS | (Brand-Specific) 1/4″ NPS (M) x 1/4″ BSP (M) |
| 4-2BSP-AWL | (Brand-Specific) 1/4″ NPS (M) x 1/8″ BSP(M) |
| 4-2BSP-AWL-A | (Brand-Specific) 1/4″ NPS (M) x 1/8″ BSP (M) |

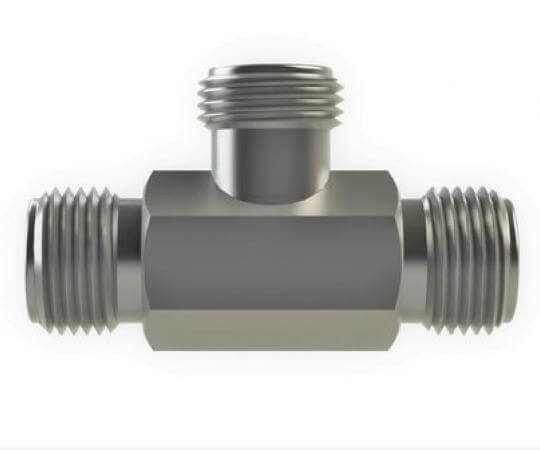

| Part Number | Description / Size |
|---|---|
| 6-6-6. | 3/8″ NPS (M) x 3/8″ NPS (M) x 3/8″ NPS (M) |
| 6-6-6SN | 3/8″ NPS (M) x 3/8″ NPS (M) x 3/8″ NPS (F) |
| 6SN-6SN-6SN | 3/8″ NPS (F) x 3/8″ NPS (F) x 3/8″ NPS (F) |
| 6SNB-6SNB-6SNB | 3/8″ BSP (F) X 3/8″ BSP (F) x 3/8″ BSP (F) |
| 6SN-6-6 | 3/8″ NPS (F) x 3/8″ NPS (M) x 3/8″ NPS (M) |
| 6B-6B-6B | 3/8″ BSP (M) x 3/8″ BSP (M) x 3/8″ BSP (M) |
| 6SNB-6B-6B | 3/8″ BSP (F) x 3/8″ BSP (M) x 3/8″ BSP (M) |
| 6SN-6TF-4T(F) | 3/8″ NPS (F) x 3/8″ TF x 1/4″ NPT (F) |
| 6-6-4T | 3/8″ NPS (M) x 3/8″ NPS (M) x 1/4″ NPT (M) |
| 6-6-6T | 3/8″ NPS (M) x 3/8″ NPS (M) x 3/8″ NPT (M) |
| 6-6-4T(F) | 3/8″ NPS (M) x 3/8″ NPS (M) x 1/4″ NPT (F) |
| 6SN-6-4T | 3/8″ NPS (F) x 3/8″ NPS (M) x 1/4″ NPT (M) |
| 6SN-6-6T | 3/8″ NPS (F) x 3/8″ NPS (M) x 3/8″ NPT (M) |
| 6SN-6-4SN | 3/8″ NPS (F) x 3/8″ NPS (M) x 1/4″ NPS (F) |
| 6SN-6-6SN | 3/8″ NPS (F) x 3/8″ NPS (M) x 3/8″ NPS (F) |
| 6SNB-6B-6SNB | 3/8″ BSP (F) x 3/8″ BSP (M) x 3/8″ BSP (F) |
| 6SN-6SN-6 | 3/8″ NPS (F) x 3/8″ NPS (F) x 3/8″ NPS (M) |
| 6SN-6BTF-6SN | 3/8″ NPS (F) x 3/8″ BTF x 3/8″ NPS (F) |
| HY-8-6-6 | 1/2″ OD x 3/8″ OD |
| HY-12-8-8 | 1/2″ OD x 3/4″ OD |
| HY-10-8-8 |

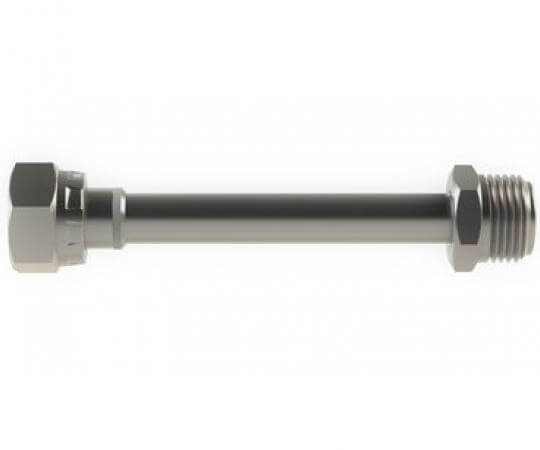

| Part Number | Description / Size |
|---|---|
| GE-600 | 3/8″ (M) x 3/8″ (F), 3-3/4” long |
| GE-600B | 3/8″ (M), x 3/8″ (F), 3-3/4” long |
| GE-630 | 3/8″ (M) NPS, 3/8″ (F) NPS, 3-3/4” long, 30° angle |
| GE-630B | 3/8″ (M) x 3/8″ (F), 3-3/4” long, 30° angle |
| SSL4-4SN-90 | 1/4″ NPS (M) x 1/4″ NPS (F), 90 degree angle |
| SSL6-4SN-90 | 3/8″ NPS (M) x 1/4″ NPS (F), 90 degree angle |
| SSL6-6SN-90 | 3/8″ NPS (M) x 3/8″ NPS (F), 90 degree angle |
| SSL6B-6SNB-90 | 3/8″ BSP (M) x 3/8″ BSP (F), 90 degree angle |
| SSL6SN-4SN-90 | 1/4″ NPS (F) x 3/8″ NPS (F), 90 degree angle |
| SSL6SN-6SN-90 | 3/8″ NPS (F) x 3/8″ NPS (F), 90 degree angle |
| SSL6SNB-6SNB-90 | 3/8″ BSP (F) x 3/8″ BSP (F), 90 degree angle |
| SSL-4SN-4SN-90 | 1/4″ NPS (F) x 1/4″ NPS (F), 90 degree angle |
| SSL-6SN-6X8-SG | 3/8″ NPS (F) x 6MMx8MM, 90 degree angle |
| SSL-6SN-7X9.6-SG | 3/8″ NPS (F) x 7MMx9.6MM, 90 degree angle |
| SSL-6SN-7X10-SG | 3/8″ NPS (F) x 7MMx9.6MM, 90 degree angle |
| SSL-6SN-9X12-SG | 3/8″ NPS (F) x 9MMx12MM, 90 degree angle |
For pricing and availability on Binks SST fittings and adaptors, call FTS at (248) 348-6700 or request a quote online.
