Binks offers a complete line of hose, tubing and fittings to accommodate paint and coating applications. With over 10 different materials to choose from, we have what you need. Common materials are Nylon, fluoropolymers (FEP, PTFE, PFA), Polyurethane, EPDM, and our custom ergonomic CPH coaxial paint hose. Binks tube assemblies are designed to provide strain relief and routing control. In addition, the smooth radius sweeps eliminate coating damage and shear, while controlling restriction to keep piping systems in balance. These tube assemblies are typically constructed of 316 SST seamless tubing in 1/4″, 5/16″, and 3/8″ OD tube sizes, and are also available in metric sizes 8mm to 18mm.

The tube assemblies are typically provided with 1/4″ and 3/8″ male or female swivel nut connection points in NPS or BSPP (PF), but can also be provided in JIC, compression, NPT or BSPT (PT), or open tube stub configurations.

Hose & Tubing Types & Part Numbers

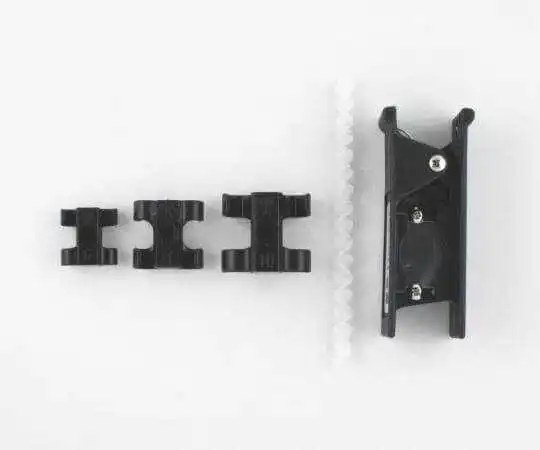

Accessories

Part Number	Description	Size / Details
HTC-201-325	Hose Clip	For use with 1/8″ & 3/16″ ID Nylon Paint Hose
HTC-326-400	Hose Clip	For use with 1/4″ & 5/16″ ID Nylon Paint Hose
HTC-401-485	Hose Clip	For use with 5/16″ & 3/8″ ID Nylon Paint Hose
PXC060	Hose Tubing Cutter

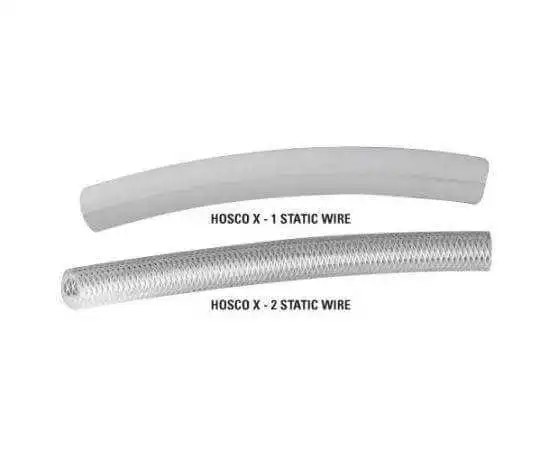

Air Hose

Part Number	Description	Size / Details
HOSCO X-1	Static Wire	8×15.9, 550′ reel
HOSCO X-2	Static Wire	8×12, 500′ reel, .087″ thickness
HOSCO X-4	Static Wire	8×12, 250′ reel, .094″ thickness

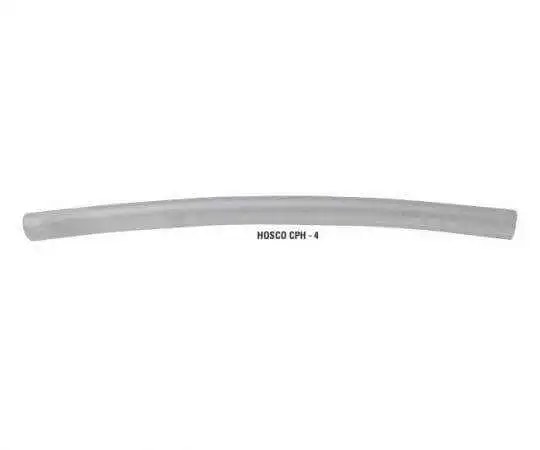

Coaxial Paint Hose

Part Number	Description	Size / Details
CPH-4	Coaxial Hose
CPH-4TL	Coaxial Hose, Twin Line Bonded
CPH-5	Coaxial Hose
CPH-6	Coaxial Hose

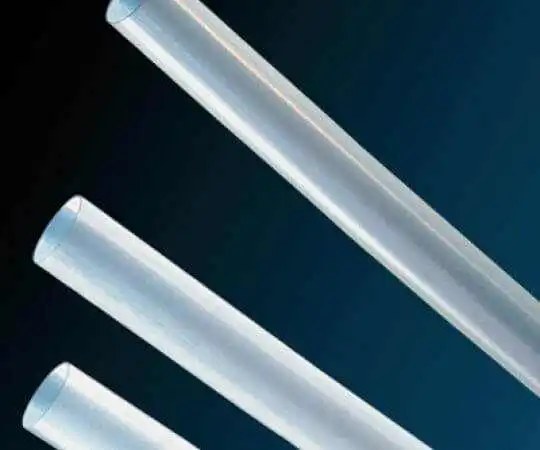

FEP Tubing

Binks Hosco FEP fluoropolymer paint tubing

Part Number	Description	Size / Details
FEP-0302	Fluoropolymer	1/8″ ID x 1/4″ OD
FEP-0402	Fluoropolymer	1/8″ ID x 1/4″ OD
FEP-0403	Fluoropolymer	3/16″ ID x 1/4″ OD
FEP-0503	Fluoropolymer	3/16″ ID x 5/16″ OD
FEP-0504	Fluoropolymer	1/4″ ID x 5/16″ OD
FEP-0604	Fluoropolymer	1/4″ ID x 3/8″ OD
FEP-0806	Fluoropolymer	3/8″ ID x 1/2″ OD
FEP-250170	Fluoropolymer	.170 ID x 1/4″ OD
FEPM-10X8	Fluoropolymer	8mm ID x 10mm OD
FEPM-12X10	Fluoropolymer	10mm ID x 12mm OD
FEPM-12X9	Fluoropolymer	9mm ID x 12mm OD
FEPM-5X3	Fluoropolymer	3mm ID x 5mm OD
FEPM-6X4	Fluoropolymer	4mm ID x 6mm OD
FEPM-8X6	Fluoropolymer	6mm ID x 8mm OD
FEPM-9X6	Fluoropolymer	6mm ID x 9mm OD
FEPM-6X3	Fluoropolymer	3mm ID x 6mm OD
FEPM-8X5	Fluoropolymer	5mm ID x 8mm OD

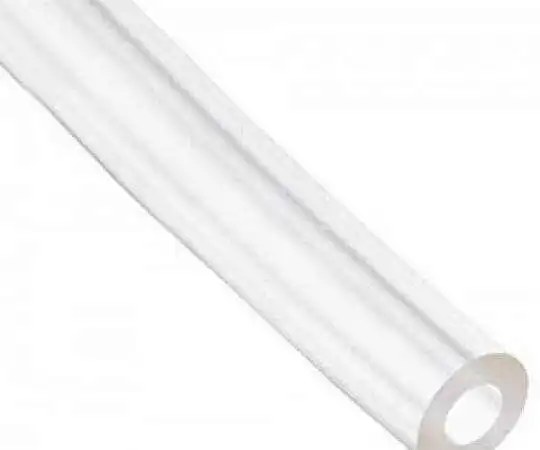

Flexlife

Part Number	Description	Size / Details
FL-0604	Fluoropolymer	1/4″ ID, 3/8″ OD, 500′ reel
FL-0806	Fluoropolymer	3/8″ ID, 1/2″ OD, 250′ reel
FLM-6X4	Fluoropolymer	4mm ID, 6mm OD, 500′ reel
FLM-8X6	Fluoropolymer	6mm ID, 8mm OD, 500′ reel
FLM-10X7	Fluoropolymer	7mm ID, 10mm OD, 500′ reel

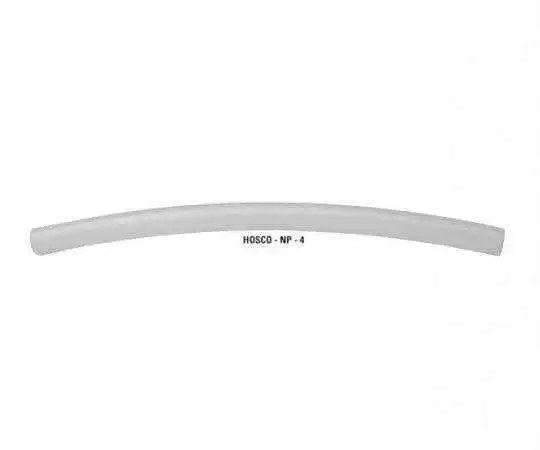

Nylon Hose

Part Number	Description	Size / Details
NP-2	Natural Nylon
NP-3	Natural Nylon
NP-4	Natural Nylon
NP-4TL	Natural Nylon, Twin Line Bonded
NP-5	Natural Nylon
NP-6	Nylon	3/8″, 500′ reel

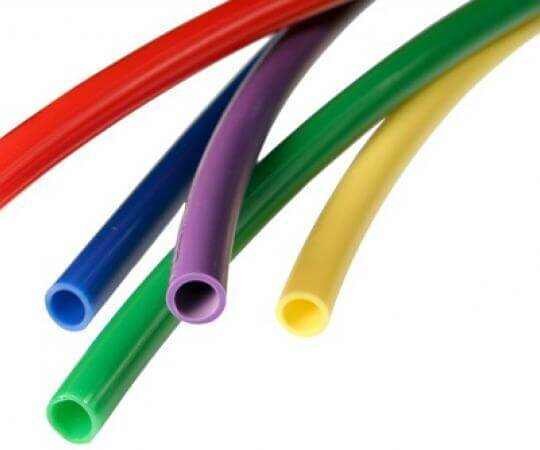

Nylon Tubing

Part Number	Description	Size / Details
NHA-532 (NHA-4X2.7)	Natural Nylon	Standard color options (100 ft min): Black, Silver, Red, Green, Blue, Yellow, Orange, Purple
NHA-0302	Natural Nylon	Standard color options (100 ft min): Black, Red, Blue
NHA-6X4	Natural Nylon	Standard color options (100 ft min): Black, Red, Green, Blue, Yellow, Orange
NHA-0403	Natural Nylon	Standard color options (100 ft min): Black, Red, Green, Blue, Yellow, Orange
NHA-0504 (NHA-8X6)	Natural Nylon	Standard color options (100 ft min): Black, Red, Green, Blue, Yellow
NHA-9X6	Natural Nylon	Standard color options (100 ft min): Blue
NHA-375275	Natural Nylon	Stock color options (100 ft min): Black, Red, Green, Blue, Yellow, Orange
NHA-10X7	Natural Nylon
NHA-10X8	Natural Nylon	Stock color options: Black, Silver
NHA-12X9	Natural Nylon	Stock color options: Blue
NHA-12X10	Natural Nylon	Standard color options (100 ft min): Black
NHA-0806	Natural Nylon	Standard color options (100 ft min): Black, Red, Green, Blue, Yellow

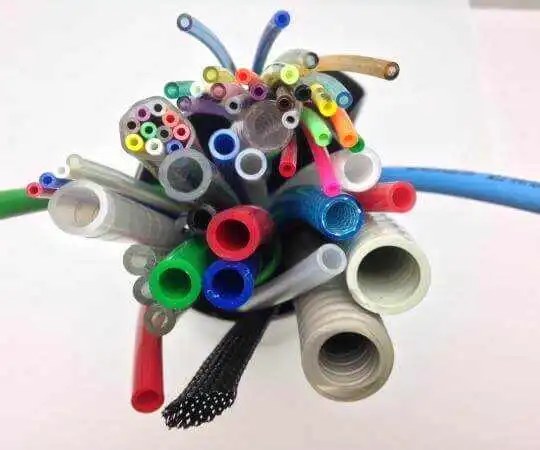

PFA Tubing

Part Number	Description	Size / Details
PFA-0604	Fluoropolymer	1/4″ ID x 3/8″ OD
PFA-0302	Fluoropolymer	1/8″ ID, 3/16″ OD, 500′ reel
PFA-0806	Fluoropolymer	3/8″ ID, 1/2″ OD, 250′ reel
PFAM-6X4	Fluoropolymer	4mm ID, 6mm OD, 500′ reel
PFAM-8X6	Fluoropolymer	6mm ID, 8mm OD, 500′ reel

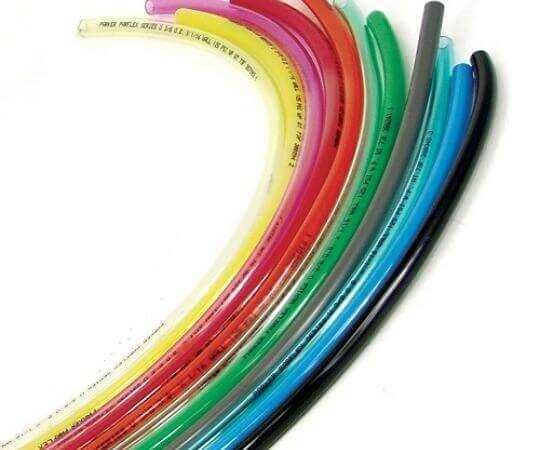

Polyurethane Tubing

Part Number	Description	Size / Details
PHAM-4X2.4	Clear Polyurethane	Standard color options: Black, Brown, Gray, Red, Green, Blue, Yellow, Orange, White, Purple, Trans Red, Trans Green, Trans Blue, Trans Ice Blue, Trans Yellow, Trans Orange
PHAM-6X4	Clear Polyurethane	Standard color options: Black, Gray, Red, Green, Blue, Yellow, Orange, White, Trans Red, Trans Green, Trans Blue, Trans Yellow, Trans Ice Blue
PHAM-8X5	Clear Polyurethane	Standard color options: Black, Red, Blue, Green, Yellow, White, Trans Red, Trans Blue, Trans Ice Blue
PHAM-12X8	Clear Polyurethane	Standard color options: Black, Red, Blue, Yellow, Trans Blue
PHAM-150694	Clear Polyurethane	Standard color options: Black, Brown, Gray, Red, Blue, Green, Yellow, Orange, Purple, White, Trans Red, Trans Blue, Trans Green, Trans Yellow, Trans Orange, Trans Ice Blue
PHA-250125	Clear Polyurethane	Standard color options: Black, Gray, Red, Blue, Green, Yellow, Orange, White, Trans Red, Trans Blue, Trans Green, Trans Yellow, Trans Orange
PHA-375245	Clear Polyurethane	Standard color options: Black, Gray, Red, Blue, Green, Yellow, White, Trans Red, Trans Blue, Trans Yellow, Trans Green, Trans Ice Blue, Neon Green
PHA-500320	Clear Polyurethane	Standard color options: Black, Red, Blue, Green, Yellow, White, Trans Blue

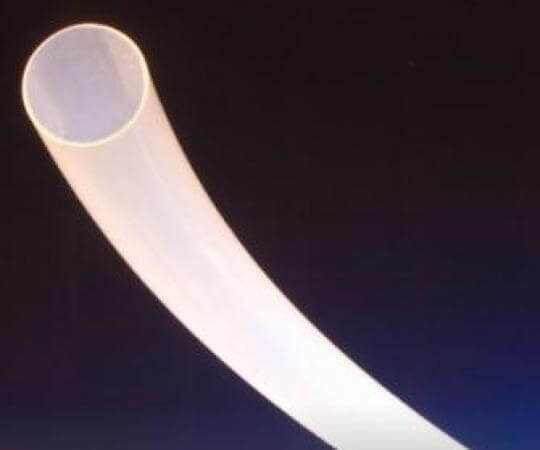

PTFE Tubing

Part Number	Description	Size / Details
PTFE-0402	Fluoropolymer	1/8″ ID, 1/4″ OD, 500′ reel
PTFE-0503	Fluoropolymer	3/16″ ID, 5/16″ OD, 500′ reel
PTFE-0604	Fluoropolymer	1/4″ ID, 3/8″ OD, 500′ reel
PTFE-0806	Fluoropolymer	3/8″ ID, 1/2″ OD, 500′ reel
PTFEM-10X8	Fluoropolymer	8mm ID, 10mm OD, 500′ reel
PTFEM-12X10	Fluoropolymer	10mm ID, 12mm OD, 250′ reel
PTFEM-4X2	Fluoropolymer	2mm ID, 4mm OD, 500′ reel
PTFEM-6X4	Fluoropolymer	4mm ID, 6mm OD, 500′ reel
PTFEM-8X6	Fluoropolymer	6mm ID, 8mm OD, 500′ reel
