Description

Overview

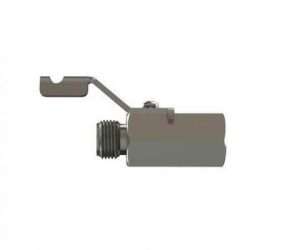

Hosco SSBV Compact & HBV Ultra Compact Ball Valves provide manual dispense control to a paint station or dispense point.

Eliminating the nagging “dirt in paint” problems starts with having the paint drops comprised of Hosco smooth-bore, cavity-free, micro-finished components. Hosco valves are all stainless steel, smooth-bore, fully encapsulated, and cavity-free allowing them to flush easily and quickly so there is no place for dried paint to hide. Our valve family is available in every configuration needed in paint circulation drop stations from 1/4″ to 5/8″ or 8mm to 14mm sizes- threaded, bulkhead threaded, compression, bulkhead compression, and tube up to 18″ long. Our valves include adjustable packing for cradle to grave service in a paint shop’s 25 year life, with PTFE packing and seats that provide chemical resistance to all of the coatings used or anticipated for use in the future.

Valve Types & Part Numbers

3 Way Ball Valve

Binks Hosco SSBV-3 stainless steel 3-way ball valve
Part Number Description / Size
SSBV-3 3-Way Ball Valve, Female Tapered Pipe Thread

Automation Valve Assemblies - HRS

Binks Hosco HRS automation valve assembly outlet manifold
Part Number Description / Size
HRS-200 Two Outlet Manifold
HRS-200L Two Outlet Manifold
HRS-201 Two Outlet Manifold
HRS-300 Three Outlet Manifold
HRS-300L Three Outlet Manifold
HRS-301 Three Outlet Manifold

Ball Valve H Assembly

Binks Hosco stainless steel ball valve H assembly
Part Number Description / Size
H-100A 3/8″ BTF x 3/8″ NPS
H-200 1/2″ BTF x 3/8″ NPS (M), Bulkhead
H-300 3/8″ BTF x 3/8″ NPS (M), Reverse Bulkhead

Check Valves

Binks Hosco stainless steel check valve
Part Number Description / Size
SSCV-6 3/8″ NPS (M) x 3/8″ NPT (F)
SSCV-6B 3/8″ BSP (M) x 3/8″ NPT (F)
6SN-6CV 3/8″ NPS (M) x 3/8″ NPS (F)
SSCV-6T 3/8″ NPT (M) x 3/8″ NPT (F)
SSCV-6BT 3/8″ NPT (M) x 3/8″ BSPT (F)
6CV-6SN 3/8″ NPS (M) x 3/8″ NPS (F)

HBV Series Ball Valves

New HBV series ball valve, 1/2″ shorter than a typical ball valve. Binks’ HBV Series part configurator is shown below. Sample of ordering: HBV - (Body End) - (Fitting End) - 316. Items marked • are special order.

Binks Hosco HBV series SST ball valve part configurator chart with body end and fitting end connectors

SSBV Series Ball Valves

Binks Hosco SSBV series stainless steel ball valve
Part Number Description / Size
SSBV-6-316
SSBV-6-6RB-316
SSBV-6T-6BTF-316
SSBV-6T-6T-316
SSBV-6TUBE-6T-316
SSBV-4-316 1/4″ NPS (M) x 3/8″ NPT (F)
SSBV-6-316 3/8″ NPS (M) x 3/8″ NPT (F)
SSBV-6-6SN-316 3/8″ NPS (M) x 3/8″ NPS (F)
SSBV-4T-316 1/4″ NPS (M) x 3/8″ NPT (F)
SSBV-4T-4T(F)-316 1/4″ NPT (M) x 1/4″ NPT (F)
SSBV-6T-316 3/8″ NPT (M) x 3/8″ NPT (F)
SSBV-6-6-316 3/8″ NPS (M) x 3/8″ NPS (M)
SSBV-6B-6B-316 3/8″ BSP (M) x 3/8″ BSP (M)
SSBV-6-4T-316 3/8″ NPS (M) x 1/4″ NPT (M)
SSBV-6-6T-316 3/8″ NPS (M) x 3/8″ NPT (M)
SSBV-4T-4-316 1/4″ NPT (M) x 1/4″ NPS (M)
SSBV-6T-6-316 3/8″ NPT (M) x 3/8″ NPS (M)
SSBV-4T-4T-316 1/4″ NPT (M) x 1/4″ NPT (M)
SSBV-6T-6T-316 3/8″ NPT (M) x 3/8″ NPT (M)
SSBV-6TF-6TF-316 3/8″ TF x 3/8″ TF
SSBV-8TF-8TF-316 1/2″ TF x 1/2″ TF
SSBV-10MMTF-10MMTF 10MM TF x 10MM TF
SSBV-12MMTF-12MMTF 12MM TF x 12MM TF
SSBV-6-6BTF-316 3/8″ (M) NPS x 3/8″ BTF, Bulkhead
SSBV-6-8BTF-316 3/8″ (M) NPS x 1/2″ BTF, Bulkhead
SSBV-6T-6BTF-316 3/8″ NPT x 3/8″ BTF, Bulkhead
SSBV-6T-8BTF-316 3/8″ NPT x 1/2″ BTF, Bulkhead
SSBV-6TF-6BTF-316 3/8″ TF x 3/8″ BTF, Bulkhead
SSBV-8TF-8BTF-316 1/2″ TF x 1/2″ BTF, Bulkhead
SSBV-6-6RB-316 3/8″ NPS (M) x 3/8″ NPS (M), Reverse Bulkhead
SSBV-6T-6RB-316 3/8″ NPT (M) x 3/8″ NPS (M) Reverse Bulkhead
SSBV-6TUBE-6TF-316 3/8″ TUBE x 3/8″ TF
SSBV-6TUBE-8TF-316 3/8″ TUBE x 1/2″ TF
SSBV-6TUBE-6-316 3/8″ TUBE STUB x 3/8″ NPS (M)
SSBV-6TUBE-6T-316 3/8″ TUBE STUB x 3/8″ NPT (M)
SSBV-6TF-6RB-316 3/8″ TF x 3/8″ NPS (M), Reverse Bulkhead
SSBV-8TF-6RB-316 1/2″ TF x 3/8″ NPS (M), Reverse Bulkhead
SSBV-CLIPLOCK Lockable assembly to prevent accidental handle actuation which can be used to lock the ball valve open or closed. This 3-piece assemble comes with Saddle Body, lanyard, and Locking Tab and can be added to any existing Hosco SSBV Ball Valve or supplied with new valves.
