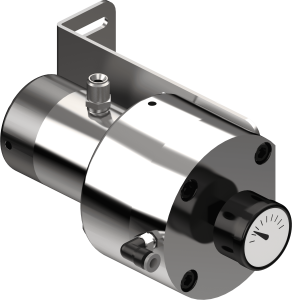

The Binks MVR (material regulator valve) is an air operated valve with a tapered needle and specially designed fluid ports that permit precise fluid regulation and rapid response to air command signals over the entire range of regulator operation.
The Binks MVR (material regulator valve) is an air operated valve with a tapered needle and specially designed fluid ports that permit precise fluid regulation and rapid response to air command signals over the entire range of regulator operation.
Product Status:
Category:
Manufacturer:
Control of the MVR is achieved through an air pressure signal generated from the electronic proportional pressure regulator. Air pressure against a solvent-resistant diaphragm moves the needle up and down across the fluid ports, so fluid flow through the MVR is proportional to the air pressure control signal — an increase in air pressure results in an increase in fluid flow. The MVR is used as the closed-loop flow control regulator on Binks IntelliFlow systems such as the RF2+.

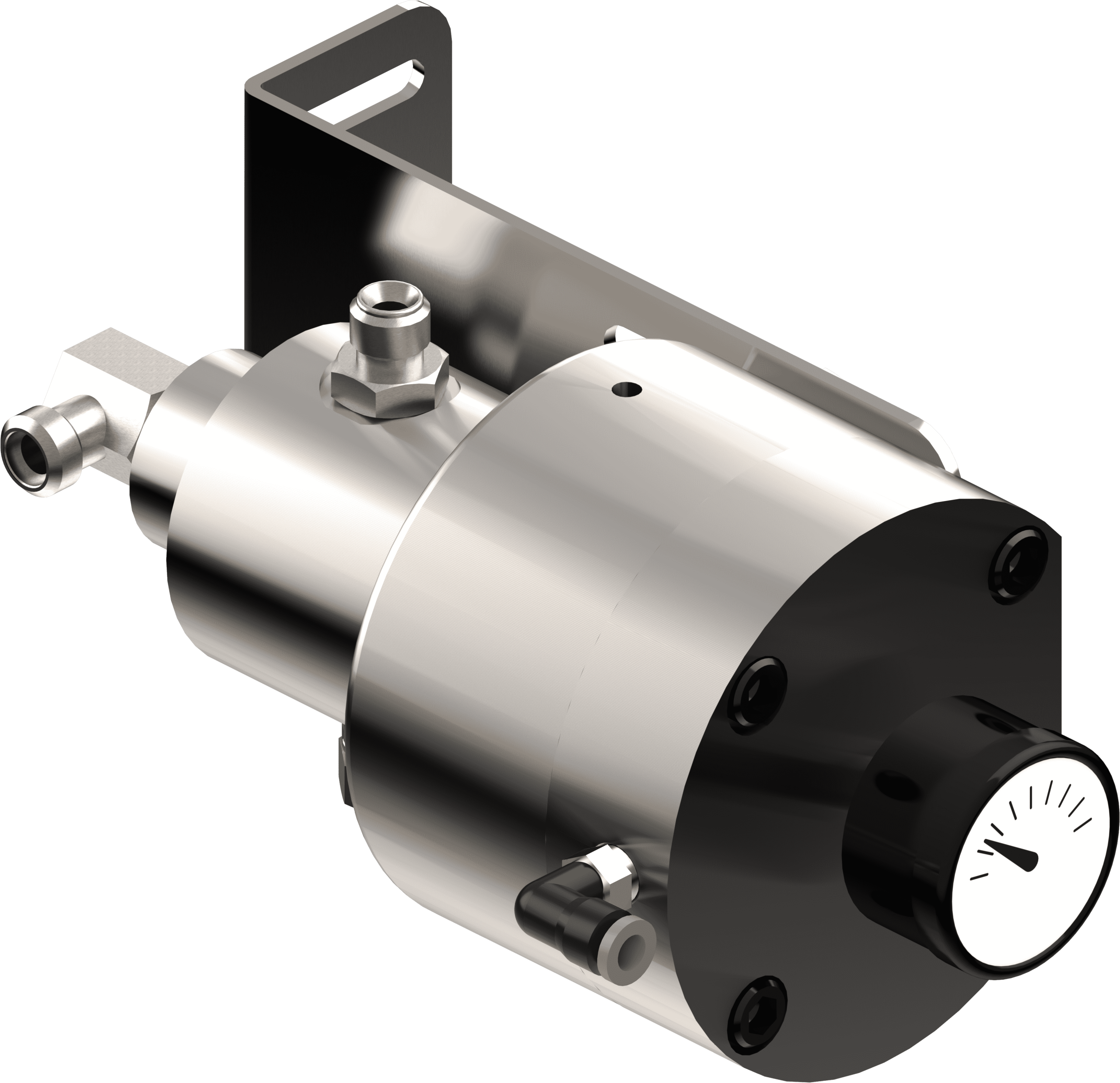

The 76624 Weepless MVR Assembly replaces the TR-SSMM-XXX "weeping" MVR Assembly. It is offered in low (#2), medium (#3) and high (#4) flow assemblies with no fittings, with two 3/8 in O.D. tube fittings (A), or with one 3/8 in O.D. tube fitting and one 3/8 in O.D. stem adapter (B). Five fluid needles are available, from #0 ultra-low flow to #4 high flow. Note: Binks states that degraded performance or failure will occur if the Weepless MVR is used with isocyanate catalyst. In some installations with low-viscosity fluids at high fluid pressures, Binks recommends the LAFX4001 valve as a preliminary shut-off to minimize line pressure during trigger-off (see LN-9225-00 Technical Service Bulletin).
The weeping MVR is available as #2 low flow (TR-SSMM-147), #3 medium flow (TR-SSMM-148) and #4 high flow (TR-SSMM-225) assemblies with a bottom weep port.
Service guides: Weepless MVR Service Guide (LN-9225-00) and Weeping MVR Service Guide (LN-9112-00).
Call Fluid Transfer Systems at (248) 348-6700 for pricing and availability.
| Specification | Weepless MVR (76624) | Weeping MVR (TR-SSMM) |
|---|---|---|
| Assembly Part Numbers | 76624-02/03/04 (A, B fitting options) | TR-SSMM-147, TR-SSMM-148, TR-SSMM-225 |
| Maximum Air Pressure | 100 psi (6.9 bar) | 100 psi (6.9 bar) |
| Maximum Fluid Pressure | 3000 psi (206.85 bar) | 3000 psi (206.85 bar) |
| Fluid Needles | #0, #1 ultra low flow; #2 low; #3 medium; #4 high flow (76623-00 to -04) | #2 low (TR-SSMM-149); #3 medium (TR-SSMM-150); #4 high flow (TR-SSMM-226) |
| Flow Rate | Dependent upon material viscosity and needle used | Dependent upon material viscosity and needle used |
| Top and Side Ports | 1/8-27 NPT (F) | 1/8-27 NPT (F) |
| Fluid Inlet & Outlet Ports | 3/8 JIC (F) | 3/8 BSP |
| Bottom Weep Port | — | 3/8-18 NPT (F) |
| Mounting Holes | 5/16-18 UNC at 1.97 in | 5/16-18 UNC at 1.97 in |
| Control | Air pressure signal from electronic proportional pressure regulator | Air pressure signal from electronic proportional pressure regulator |
| Recommended Fluid Filtration | 100 mesh (149 micron) | 100 mesh (149 micron) |
Source: Binks LN-9225-00 and LN-9112-00 service guides.
MVR assembly part numbers from Binks LN-9225-00 (Weepless) and LN-9112-00 (Weeping). Call FTS at (248) 348-6700 for pricing.
| Part # | Description | Fluid Needle |
|---|---|---|
| 76624-02 | Low flow assembly, no fittings | 76623-02 |
| 76624-02A | Low flow assembly, (2) 3/8 O.D. tube fittings | 76623-02 |
| 76624-02B | Low flow assembly, (1) 3/8 O.D. tube fitting and (1) 3/8 O.D. stem adapter | 76623-02 |
| 76624-03 | Medium flow assembly, no fittings | 76623-03 |
| 76624-03A | Medium flow assembly, (2) 3/8 O.D. tube fittings | 76623-03 |
| 76624-03B | Medium flow assembly, (1) 3/8 O.D. tube fitting and (1) 3/8 O.D. stem adapter | 76623-03 |
| 76624-04 | High flow assembly, no fittings | 76623-04 |
| 76624-04A | High flow assembly, (2) 3/8 O.D. tube fittings | 76623-04 |
| 76624-04B | High flow assembly, (1) 3/8 O.D. tube fitting and (1) 3/8 O.D. stem adapter | 76623-04 |
| TR-SSMM-147 | Weeping MVR assembly, #2 low flow | TR-SSMM-149 |
| TR-SSMM-148 | Weeping MVR assembly, #3 medium flow | TR-SSMM-150 |
| TR-SSMM-225 | Weeping MVR assembly, #4 high flow | TR-SSMM-226 |
MVR spare parts, kits and tools from Binks LN-9225-00 and LN-9112-00. Call FTS at (248) 348-6700 for pricing.
| Part # | Description |
|---|---|
| 76623-00 | #0 fluid needle, ultra-low flow (weepless) |
| 76623-01 | #1 fluid needle, ultra-low flow (weepless) |
| 76623-02 | #2 fluid needle, low flow (weepless) |
| 76623-03 | #3 fluid needle, medium flow (weepless) |
| 76623-04 | #4 fluid needle, high flow (weepless) |
| 77052-00 | Kit, weepless MVR seal replacement |
| 77048-00 | Kit, weepless MVR seal upgrade |
| 76629-00 | Tool, piston removal (weepless) |
| TR-SSMM-151 | Air diaphragm, MVR assembly (qty 3) |
| 78783-00 | Compression spring / diaphragm spring, MVR |
| 77049-00 | Backup ring for 2-109 O-ring, high pressure (weepless) |
| 79001-28 | O-ring, .299 I.D. x .103 c/s, solvent proof (weepless) |
| 76625-00 | Backup ring for 2-020 O-ring, high pressure (weepless) |
| 79001-21 | O-ring, .864 I.D. x .070 c/s, solvent proof (weepless) |
| 77051-00 | Seal, O-ring loaded U-cup (weepless) |
| 77057-00 | Seal retainer assembly, weepless MVR |
| 77055-00 | Guide bushing, machined, weepless MVR |
| 76619-1 | Fluid section, machined, weepless MVR |
| 76622-00 | Bottom section, machined, weepless MVR head |
| 76621-1 | Lower housing (weepless) |
| A10508-00 | Upper housing (after 12/03) |
| GA-338 | Pressure regulator gauge, 0–160 psi |
| TR-SSMM-145 | #0 MVR needle, weeping |
| TR-SSMM-146 | #1 MVR needle, weeping |
| TR-SSMM-149 | #2 MVR needle, weeping |
| TR-SSMM-150 | #3 MVR needle, weeping |
| TR-SSMM-226 | #4 MVR needle, weeping |
| SSG-8125 | O-ring, PTFE (weeping) |
| SSG-8125-K6 | Kit, O-ring, PTFE (weeping only) |
| TR-SSHC-149 | Fluid housing (weeping) |
| A10509-00 | Lower housing, after 12/03 (weeping) |
| TR-100952 | MVR washer (weeping) |
| 310-2802 | MVR mounting bracket |
| LAFX4001 | Valve assembly, preliminary shut-off (see TSB in LN-9225-00) |
