BINKS IntelliFlow RF2+ Proportioner

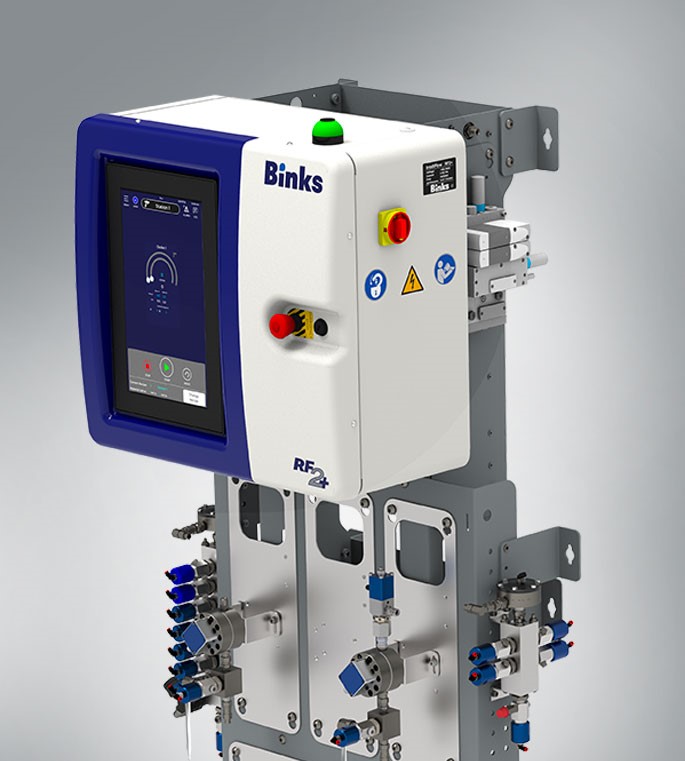

The Binks IntelliFlow RF2+ is a multi-component metering, mixing and flow control proportioner designed to maximize process savings for almost any automatic and manual applicator system, including static, reciprocator, flatline, and robot applications.

Save

Product Status:

Available

Category:

Binks Plural Component Mixing

Manufacturer:

Binks

BINKS IntelliFlow RF2+ Proportioner

Description:

The Binks IntelliFlow RF2+ is designed to maximize process savings for almost any automatic and manual applicator system, including static, reciprocator, flatline and robot applications. It is capable of up to 100 colors and catalysts with 1K, 2K and 3K operation, and its modular, scalable design grows with your process.

Best-in-Class Fluid Performance

Closed-loop flow (RF2+ Automatic configurations) and ratio control ensures the coating is mixed and metered correctly every time
Proven dynamic mixing reduces paint and solvent waste during color changes
Standard air-solvent chop (low pressure configurations) reduces solvent use by up to 65%
Critical components are designed for reliability and serviceability
Fluid panel configurations for low and medium pressures, solventborne and waterborne coatings, with electrostatic and non-electrostatic applicators

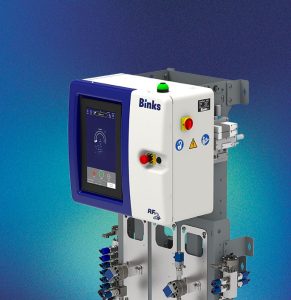

15" Color Touchscreen

User-friendly interface; primary operation screen streamlines information
Visible alarms include instructional fixes directly on the screen, reducing troubleshooting time
Automated common processes increase productivity and uptime

Seamless Connectivity and Integration

Optional communications modules enable direct integration with PLCs, robots or SCADA systems
Remote operation via trigger signals for color change, flow rate and ratio commands
Cloud-based remote monitoring allows secure operation and diagnosis in real time
Track and export data for process improvement and VOC reporting

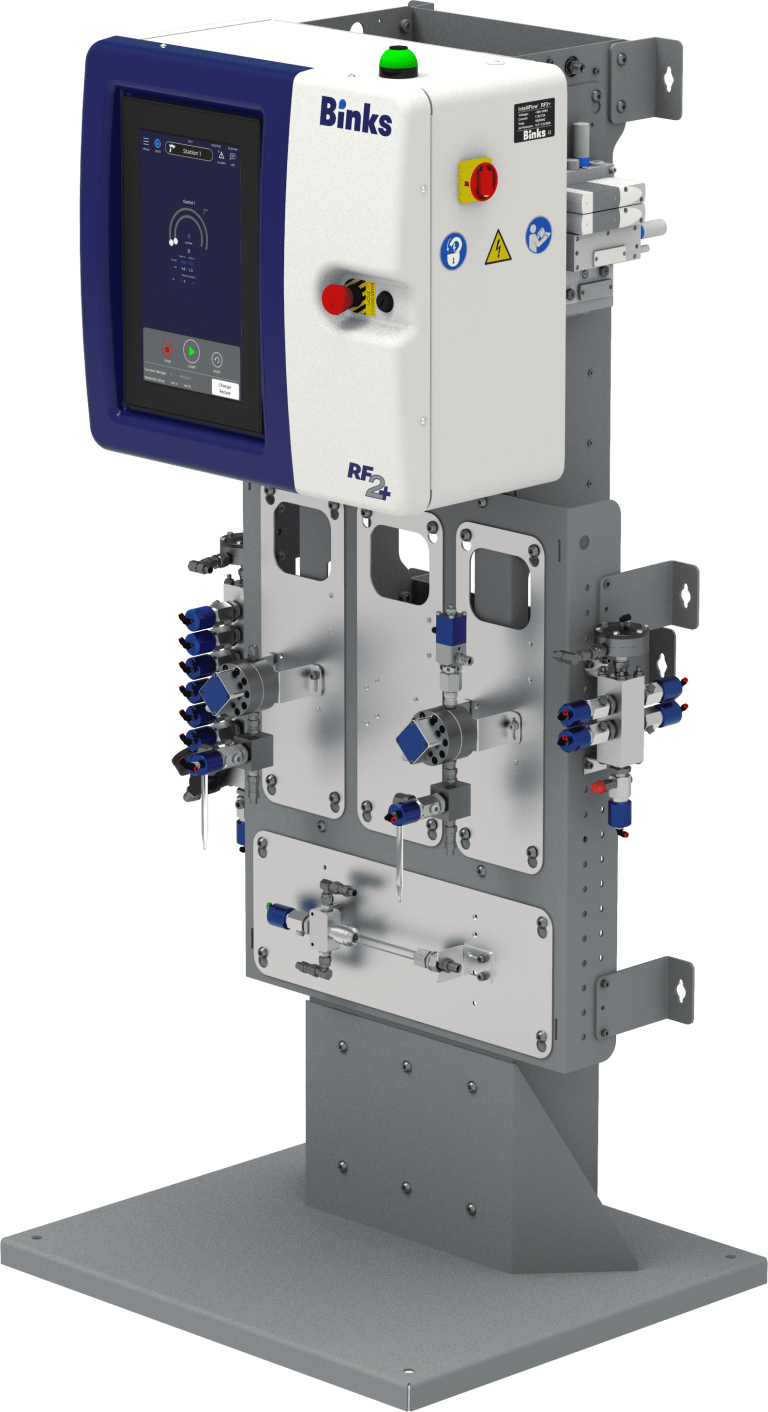

RF2+ Manual — Ideal for Hand Spray Applications

Turn-key configurations include: 15" full-color touchscreen with EtherNet/IP communication; solenoids for up to 12 colors and 4 catalysts; solvent and air chop valves on the color stack (except 1-color configurations); solvent valves on the catalyst stack (except 1-catalyst configurations); 2 high-resolution gear flowmeters; pulse valve ratio control; dynamic mix block (flushable on low pressure configurations); wall mounting hardware; 2-gun air cutoff kit; and manual outlet regulator.

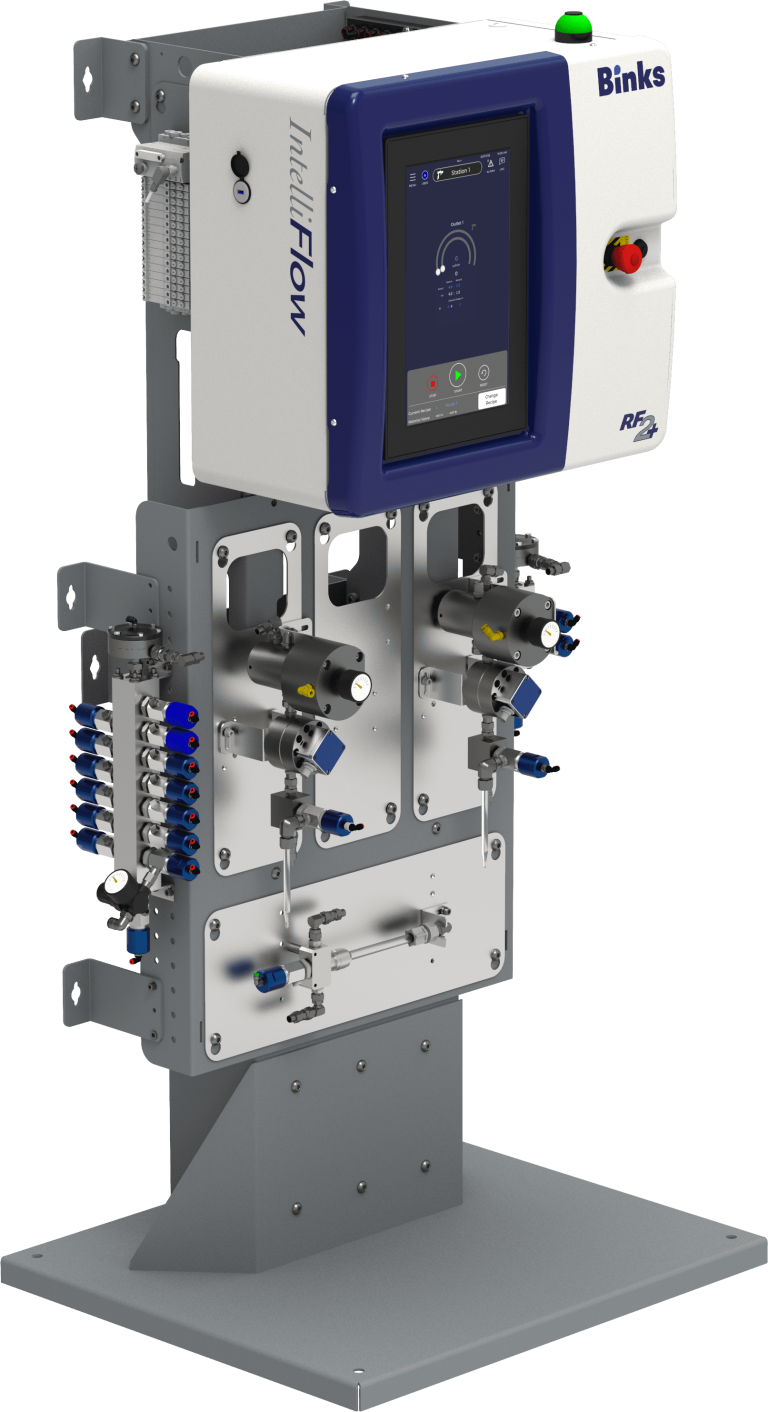

RF2+ Automatic — Versatility for Automatic or Manual Spray Applications

Turn-key configurations include: 15" full-color touchscreen with EtherNet/IP communication; solenoids for up to 12 colors and 4 catalysts; inlet pressure regulation; solvent and air chop valves on the resin stack (low pressure only); solvent valve on the catalyst stack; 2 high-resolution gear flowmeters; 2 closed-loop flow control regulators; flushable dynamic mix block; and wall mounting hardware.

How to select your turn-key configuration: select low (250 psi) or medium (3,000 psi) pressure, select the number of colors and catalysts, then select additional kits and accessories. See the part number tables below. Custom configurations (3K, alternative flowmeters, color stacks and more) are also available.

Literature

Download the IntelliFlow RF2+ Brochure (03-437-01), the Kits & Spare Parts Manual (77-3165-4) and the Service Guide (77-3165-3). Installation, operation, programming, MVR, flow meter and accessory manuals are linked in the PDF section below.

Call Fluid Transfer Systems at (248) 348-6700 for pricing, system configuration and integration support.

Features:

Technical Specifications

Specification	IntelliFlow RF2+
Ratio Range	1:1 to 50:1 (max 100:1 with PD pump, custom configurations only)
Ratio Accuracy	Down to ±1%
Capability	1K, 2K and 3K
Resin Flow Rate	10–3,500 cc/min
Hardener/Catalyst Flow Rate	10–3,500 cc/min
3rd Component Flow Rate	10–3,500 cc/min
Flow Rate Accuracy	Down to ±1%
Fluid Viscosity	1 to 3,000 cPs (viscosities <10 cPs may require custom configuration)
Fluid Pressure	250 psi (17 bar) or 3,000 psi (205 bar)
Fluid Temperature	32–140 °F (0–60 °C)
Fluid Filtration Requirement	100 mesh minimum
Fluid Compatibility	Solventborne, waterborne, electrostatic, polyurethane, epoxy, isocyanate, acid-catalyst
Wetted Parts	Stainless steel, PTFE, perfluoro elastomer, UHMW, polyethylene
Trigger Response	150 ms
Max Number of Colors / Catalysts / 3rd Components	Up to 100 (combined A, B and C components, with optional added solenoids)
Max Number of Fluid Channels	Up to 8 supported
Max Number of Recipes	250
Connectivity	EtherNet/IP standard; Profinet, DeviceNet, CC-Link, EtherCAT, Modbus TCP optional
Hazardous Area Rating	Class 1, Division 1, Group D, Temp T6; Zone 1, Group 2A, Temp T6; Ex II2G ib IIA T6 (fluid panel only)
Intrinsically Safe Option	Yes
Working Air Pressure	75–105 psi (5–7 bar)
Air Filtration Requirement	5 micron
Power Requirements	100–240 VAC 50/60 Hz, single phase, 2.8/1.4 A
Ambient Temperature	32–122 °F (0–50 °C)
Ambient Humidity	5%–85%
Sound Pressure / Power	Less than 70 dB / less than 85 dB
Dimensions	32 in x 28 in x 69 in (81 x 71 x 175 cm)
Weight	300 lb (136 kg)
