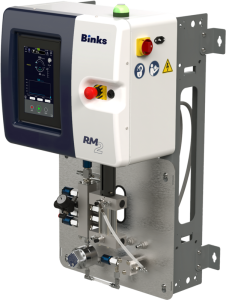

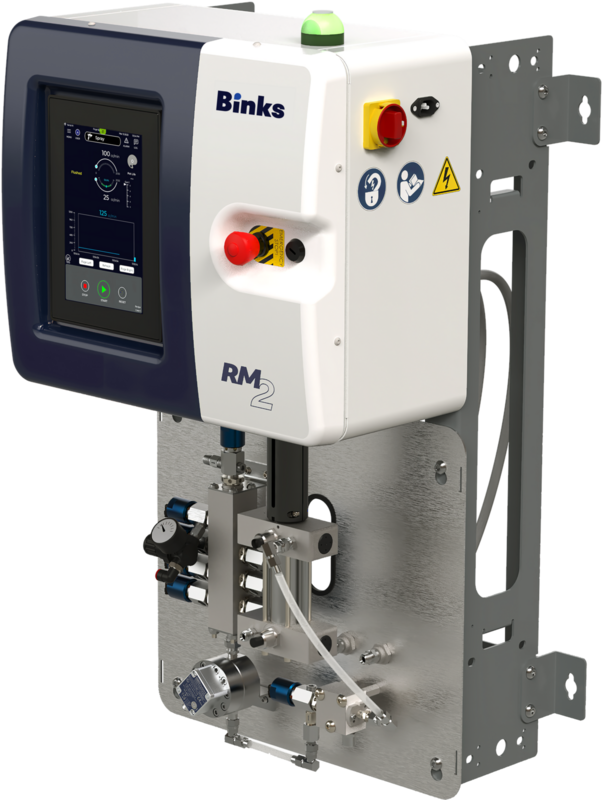

The Binks IntelliFlow RM2 is an entry-level electronic plural component proportioner designed to minimize waste and maximize consistency for a wide range of hand spray applications, managing up to seven colors and two hardeners.
The Binks IntelliFlow RM2 is an entry-level electronic plural component proportioner designed to minimize waste and maximize consistency for a wide range of hand spray applications, managing up to seven colors and two hardeners.
Product Status:
Category:
Manufacturer:
The RM2 uses real-time metering to accurately dispense and mix resin, such as paint or polyurethane, and hardener on ratio regardless of varying flow rates. Applications include feathering or rapid triggering with manual guns, from touch-up to full production. The low pressure (LP) system uses an electronically controlled stepper motor dispense pump (2–600 cc/min, ratios 1:1 to 100:1 depending on pump size); the medium pressure (MP) system uses an electronically controlled pulse valve (10–1900 cc/min, ratios 1:1 to 50:1). Ratio tolerance is down to ±1%.
Download the RM2 Installation Manual (77-3153-1), Operation Manual (77-3153-2), Pump / Service Manual (77-3153-3) and Kit Instructions & Spare Parts Manual (77-3153-4). Flow meter, dispense pump and accessory manuals are linked in the PDF section below.
Call Fluid Transfer Systems at (248) 348-6700 for pricing and configuration support.
| Specification | RM2 Low Pressure (LP) | RM2 Medium Pressure (MP) |
|---|---|---|
| Pressure Rating | 250 psi (17.2 bar) | 3000 psi (206.85 bar) |
| Dispensing | Stepper-motor dispense pump, 300 or 600 cc | Electronically controlled pulse valve |
| Mixing Ratio Range | 1:1–100:1 | 1:1–50:1 |
| Ratio Tolerance | Up to ±1% | Up to ±1% |
| Component A Flow Rate | 20–1900 cc/min | 20–1900 cc/min |
| Component B Flow Rate | 2–600 cc/min | 10–1900 cc/min |
| Total Flow Rate Range | 22–1900 cc/min | 30–1900 cc/min |
| Max Colors / Resins | 7 | 7 |
| Max Catalysts / Hardeners | 1 | 2 |
| Viscosity Range of Fluid | 20–3000 cP | 20–3000 cP |
| Trigger Response Rate | 200 ms | 200 ms |
| Isocyanate Catalyst Compatible | Yes | Yes |
| Flow Meters | Gear, Coriolis | Gear, Coriolis |
| Wetted Parts | 300 series stainless steel, PTFE, perfluoro elastomer, UHMW polyethylene | 300 series stainless steel, PTFE, perfluoro elastomer, UHMW polyethylene |
| Communication Protocol | EtherNet/IP, Profinet, EtherCAT, Modbus TCP, DeviceNet | EtherNet/IP, Profinet, EtherCAT, Modbus TCP, DeviceNet |
| Number of Recipes/Jobs | 7 | 7 |
| Guns per Fluid Panel | 1 (option for 2) | 1 |
| Max Working Air Pressure | 105 psi (7.2 bar); optimal 75–105 psi | 105 psi (7.2 bar); optimal 75–105 psi |
| Interface | 10-inch color touchscreen; Corvina Cloud app | 10-inch color touchscreen; Corvina Cloud app |
| External Power | 100–240 VAC, 50–60 Hz, 2.45 A/1.55 A | 100–240 VAC, 50–60 Hz, 2.45 A/1.55 A |
| Operating Temperature | 32–122 °F (0–50 °C) | 32–122 °F (0–50 °C) |
| System Weight | 130–150 lb (59–68 kg) | 120–155 lb |
Source: Binks RM2 Installation Manual 77-3153-1. Use of the Coriolis flow meter derates the MP to 2900 psi.
RM2 complete system part number format: RM2-##### (pressure, compatibility, flow meter, dispensing, number of colors). Use of the Coriolis flow meter derates the MP to 2900 psi. Source: Binks 77-3153-1 section 05.4. Call FTS at (248) 348-6700 for pricing.
| Position | Codes |
|---|---|
| Pressure (1st digit) | 1 = 250 psi; 2 = 3000 psi |
| Compatibility (2nd digit) | 1 = Standard; 2 = Acid |
| Flow Meter (3rd digit) | 0 = None; 1 = Gear; 2 = Coriolis |
| Dispensing (4th digit) | 1 = 600 cc; 2 = 300 cc; 5 = Pulse |
| No. of Colors (5th digit) | 0 = None; 1 = 1 color; 3 = 3 colors; 7 = 7 colors; 9 = 7 colors, 2 catalysts (MP only) |
RM2 low pressure components and spares from the Binks RM2 Kit Instructions & Spare Parts Manual 77-3153-4 (section 05.1). Floor stand kit: 240-5199. Call FTS at (248) 348-6700 for pricing.
| Part # | Description |
|---|---|
| 240-3122-300 | Mix block, 300 cc |
| 240-3122-600 | Mix block, 600 cc |
| 240-5136-300 | 300 cc dispense pump |
| 240-5136-600 | 600 cc dispense pump |
| 240-5141 | 300 cc dispense pump rebuild kit |
| 240-5142 | 600 cc dispense pump rebuild kit |
| 240-5156 | 15 psi pressure switch |
| 240-5186 | 0–500 psi pressure sensor |
| 240-5187 | M12 4-pin to leads, 2 m |
| 240-5188 | M12 4-pin to leads, 2 m |
| 240-5241 | Linear motor assembly |
| 240-3060 | Linear pot bracket assembly |
| 13742-01 | Air flow switch |
| 240-5368 | Stepper motor cable assembly |
| 310-9010 | Flow meter body |
| 310-9011 | Dual probe pickup |
| 310-9017-K5 | Flow meter seal kit, 5 pack |
| SSV-809 | Check valve |
| 6SN-6CV | Check valve |
| 77367-00 | Seat assembly, MCV |
| 78949-00 | MCV valve assembly |
| CCV-503-SS | CCV valve |
| KK-4841 | CCV repair kit |
| 1414-SS-90-T | Fitting, 3/8 ODT x 1/4 NPS, 90° |
| FEP-0604 | Hose, 3/8 ODT x 1/4 ID |
| 240-5334 | Mix block assembly |
| 240-3124 | Mix block repair kit |
| 240-3047 | Injector valve assembly |
| 240-5154 | Solenoid valve slice |
| A10756-00 | Tool, MCV removal |
| 0114-016099 | Throat seal lube, solvent-based |
| 0114-016100 | Throat seal lube, water-based |
RM2 medium pressure (standard catalyst) components and spares from the Binks RM2 Kit Instructions & Spare Parts Manual 77-3153-4 (section 05.6). Acid catalyst versions are listed in section 05.5 of the manual. Call FTS at (248) 348-6700 for pricing.
| Part # | Description |
|---|---|
| 72-727 | Adapter, 1/8 in NPT (F) x 1/4 in NPS (M) |
| 240-3234 | Adapter, 6JIC (M) x 1/8 NPT (F) |
| 240-5156 | 15 psi pressure switch |
| 240-5154 | Solenoid module, Festo |
| 13742-01 | Air flow switch |
| 240-2012 | CCV |
| KK-4370 | Plug kit |
| SSV-809 | Check valve |
| 240-5188 | M12 4-pin to leads, 2 m |
| 310-9010 | Flow meter body |
| 310-9011 | Dual probe pickup |
| 310-9017-K5 | Flow meter seal kit, 5 pack |
| 22-863-3 | Body check valve, medium pressure, 3/8 NPS x 5/8-18 (M) |
| CCV-17-SS | Manifold inlet block |
| CCV-16-SS | Manifold center block |
| CCV-18-SS | Manifold block outlet |
| 4-6JIC | Fitting, 1/4 in NPS (M) x 3/8 in JIC (M) |
| 6SN-4 | Adapter, mixing block, high pressure |
| 240-5360 | Mix block assembly |
| 240-5358 | Injector valve, high-pressure assembly |
| A10756-00 | Tool, MCV removal |
| 0114-016099 | Throat seal lube, solvent-based |
| 0114-016100 | Throat seal lube, water-based |
