SAMES Regsmart

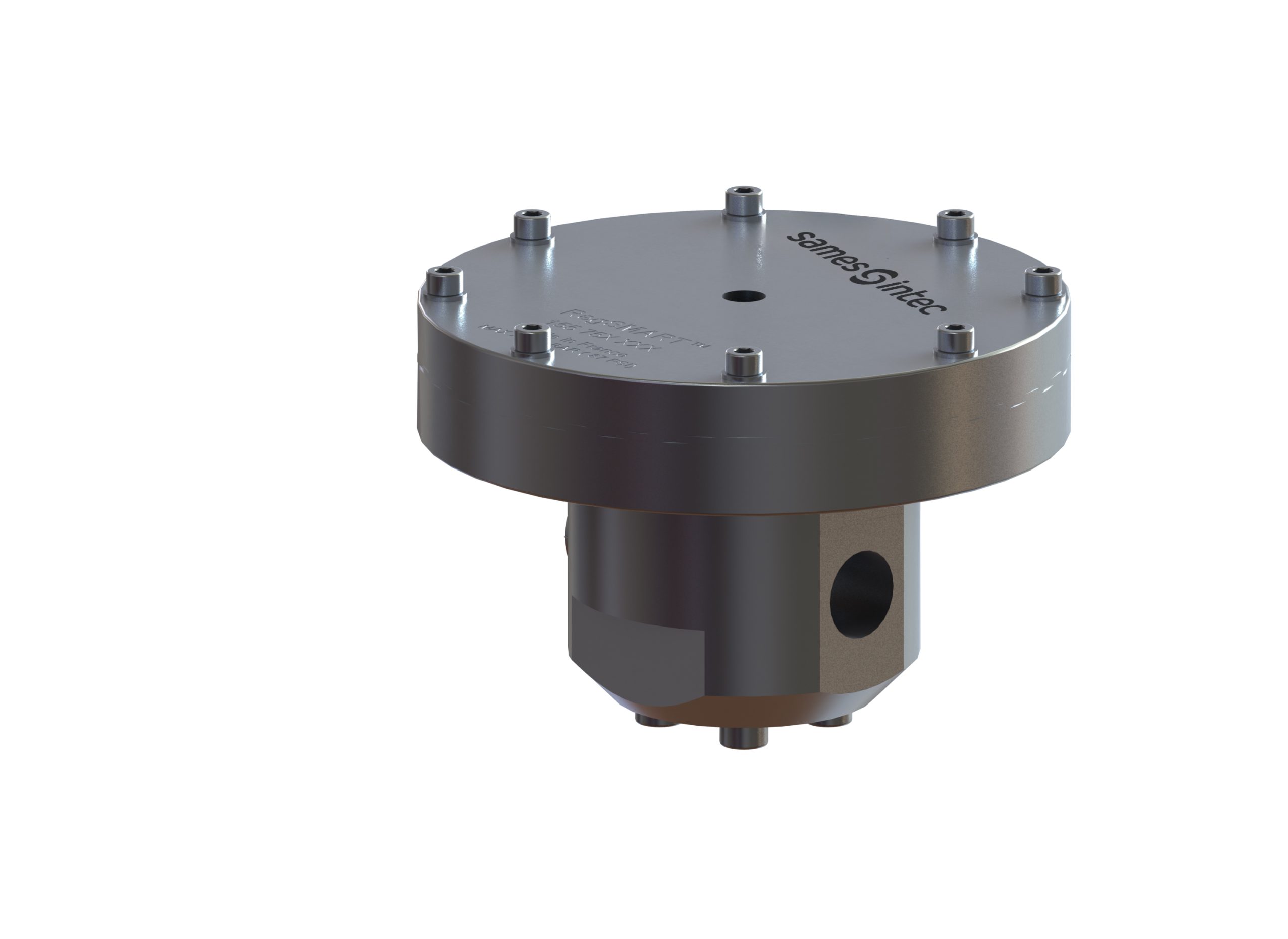

SAMES Regsmart

This regulator for high viscosity products has a large pressure and flow range.

Message Us
(248) 348-6700
Save
Contact For Pricing

Product Status:

Available

Category:

Sames Sealant & Adhesives

Manufacturer:

Sames Kremlin
SAMES Regsmart
SAMES Regsmart
Contact For Pricing

Description:

Highlights

  • Easy to integrate
  • Very large application window (pressure and flow rate)
  • Easy maintenance

Performance

  • 1 One diaphragm for a wide pressure range 5-275 bar
  • 2 From small to high flow rates with different ball sizes

Productivity

  • 3 Easy integration: Inlet and outlet are aligned
  • 4 Simple, compact design - Only 125 mm of height footprint
  • 5 Pressure air regulator for flow control as an option

Sustainability

  • 1 High strength membrane
  • 2 Carbide ball & seat for heavy-duty production
  • 6 Stainless steel or aluminum body

Features:

Technical Specifications

DesignationValue
Maximum Air Pressure (bar)6
Maximum Air Pressure (psi)87
Maximum Inlet Pressure (bar)400
Maximum Inlet Pressure (psi)5800
Outlet Pressure - Regulated Range (bar)25 - 275
Outlet Pressure - Regulated Range (psi)363 - 3989
Weight - Aluminum version (kg)4.2
Weight - Aluminum version (lbs)9.25
Weight - Stainless steel version (kg)6.2
Weight - Stainless steel version (lbs)13.66
Maximum Temperature (°C)80
Maximum Temperature (°F)140
Fluid Inlet DimensionF 3/4 BSPP
Fluid Outlet DimensionF 3/4 BSPP
Fluid PassagesØ6 / Ø8 / Ø12 mm
Wetted PartsStainless steel 303, PTFE, FFKM
SAMES Regsmart Datasheet
