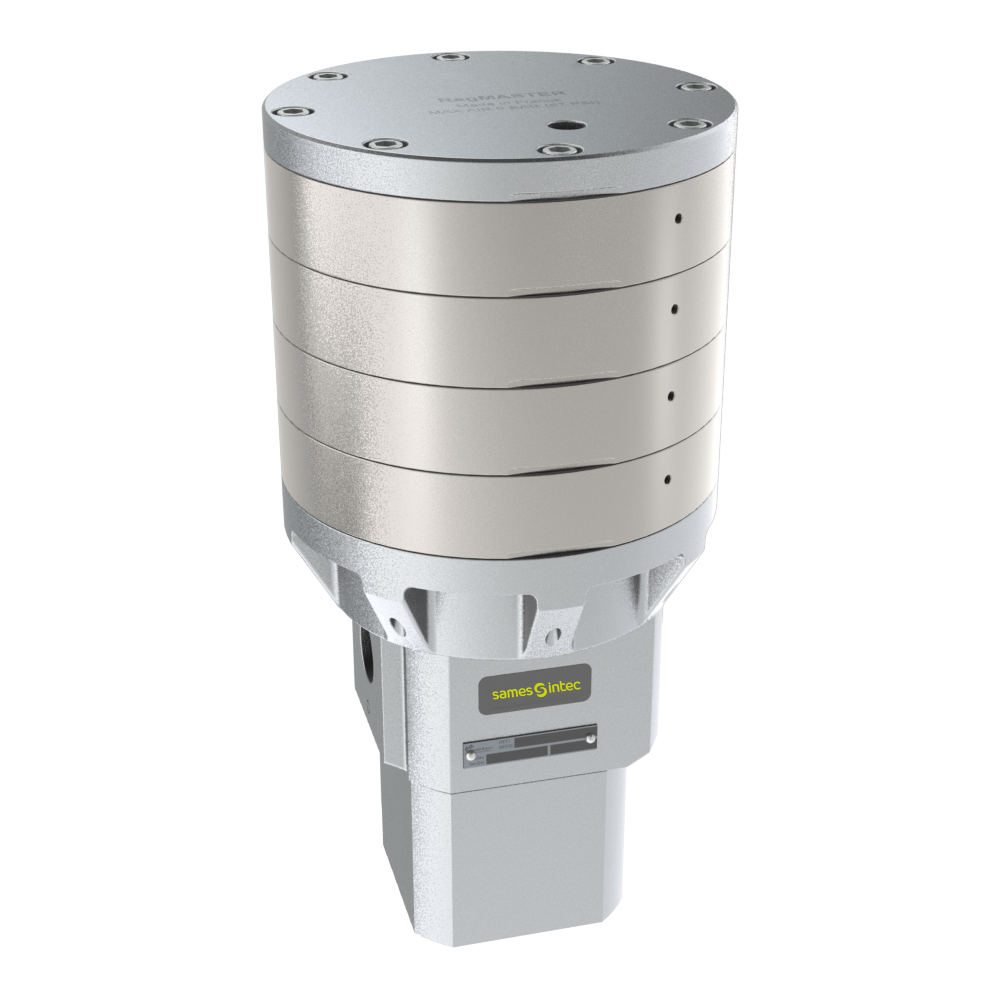

SAMES Regmaster

Highlights

• High precision
• Very large application window (pressure & flow rate)
• Multiple configurations available

Performance

• 1 Multiple plates available: Large operating pressure range 5-200 bar
• 2 Pressure range extension thanks to smaller piston size, up to 320 bar on request
• 3 From small to high flow rates with different ball sizes on request
• 4 Very high precision even at low pressures thanks to the ball bearing guide
• 5 80°C heated regulators available on request (24V or 220V)

Productivity

• 4 Fast response time and low hysteresis for robotic applications
• 6 Simple, compact design - Only 150 mm of diameter footprint
• 7 Pressure air regulator for flow control as an option

Sustainability

• 3 Carbide ball & seat for heavy-duty production
• 8 High strength membranes
• 9 Diffusor fitting for thixotropic materials on option
• 10 Stainless steel body available on request
