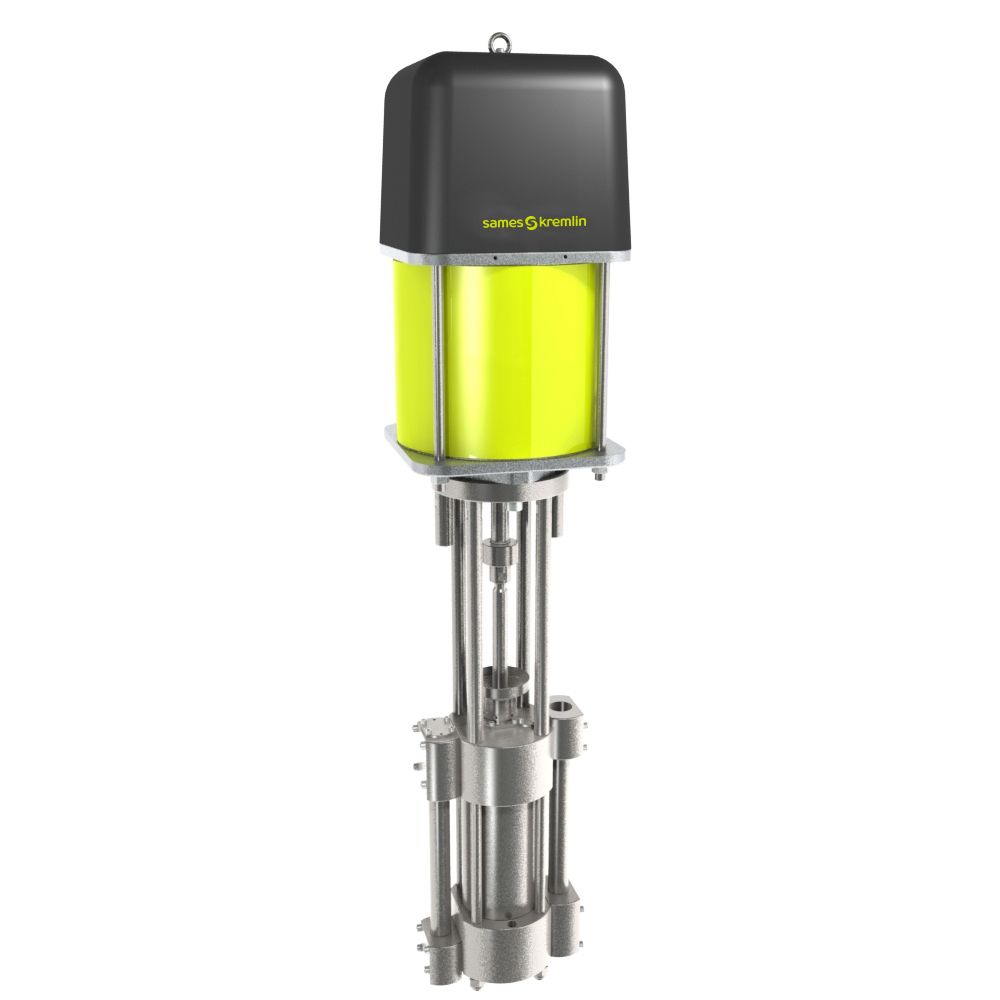

SAMES PCS 05C6000 Quatro

Product Status:

Available

Category:

Sames Sealant & Adhesives

Manufacturer:

SAMES PCS 05C6000 Quatro

Description:

Highlights

Special design to pump high viscosity material: Oil, grease, adhesive and sealants
Cup technology: Easy lubrication
Modular conception: Easy maintenance and servicing

Performance

Quiet air motor with no icing effect
Low shear due to special design of paint passage, seats & balls

Productivity

Separate air command 87 psi (6 bar) to run pump from 7 psi (0.5 bar) prevents air motor stalling
PCS 05C6000 pump is the Airspray pump with the largest capacity

Sustainability

Easy maintenance
Wide variety of cartridges designed for easy replacement: PE, PE+PTFE & PE+Leather

Features:

Technical Specifications

Designation	Value
Maximum Air Pressure (bar)	6
Maximum Air Pressure (psi)	87
Free Flow Rate (gal/min)	95
Free Flow Rate (l/min)	360
Depth (in)	181.9
Depth (mm)	462
Height (in)	629.1
Height (mm)	1598
Width/depth (in)	141.7
Width/depth (mm)	360
Maximum Material Pressure (bar)	30
Maximum Material Pressure (psi)	434.8
Air Consumption at 15 cycles / mn at 4 bar (60 psi) (cfm)	67.7
Air Consumption at 15 cycles / mn at 4 bar (60 psi) (m3/h)	115
Weight (kg)	154
Weight (lbs)	339.5
Maximum Temperature (°C)	80
Maximum Temperature (°F)	176
Air Inlet Fitting	M 3/4" G

SAMES PCS 05C6000 Quatro Datasheet
