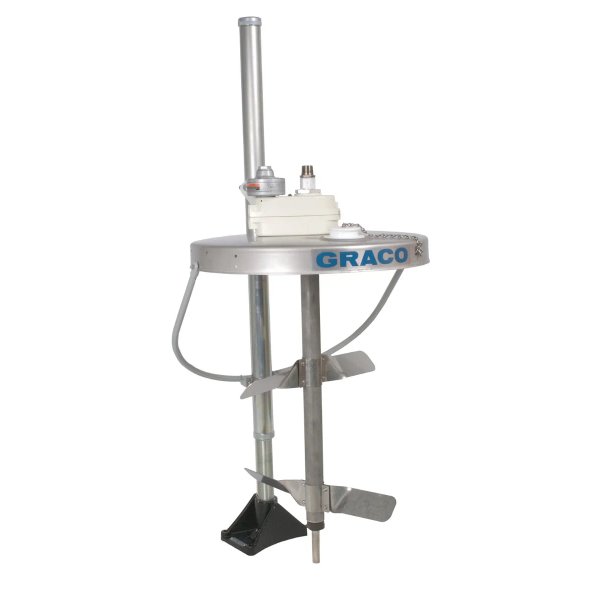

Graco 231413 Heavy Duty Back-Geared Drum Agitator with Elevator and Drum Cover

Manufacturer Part Number: 231413

Heavy Duty Back-Geared Drum Agitator with elevator and drum cover, air driven, 1/2 HP, 32 inches (81.25 cm) long. Part # 231413.

Product Status:

Available

Category:

Manufacturer:

Graco Heavy Duty Back-Geared Drum Agitator with Elevator and Drum Cover (231413)
Graco 231413 Heavy Duty Back-Geared Drum Agitator with Elevator and Drum Cover

Description:

Heavy Duty Back-Geared Drum Agitator with elevator and drum cover, air driven, 1/2 HP, 32 inches (81.25 cm) long

Heavy Duty Back-Geared Drum Agitator with elevator and drum cover. Does not include siphon kit.

  • Heavy duty gearbox mixes high viscosity materials
  • Leak-free and oil-less gearbox prevents material contamination
  • Stainless steel agitator and cover for corrosion resistance and waterborne compatibility
  • Twin paddles thoroughly mix finishing materials
  • Siphon option allows material transfer through agitator shaft
  • Access port for easy sampling and inspection of material during operation
  • Maximum viscosity 3,000 cps

Graco part number 231413 for use with 55 Gallon (208 Liter) Drum. Call Fluid Transfer Systems at (248) 348-6700 for pricing, availability and help matching the right agitator to your finishing material.

What makes 231413 different

The 231413 is an agitator with a 100 psi maximum working pressure and a 1200 RPM maximum speed. It weighs 25.8 lb.

Features:

Technical Specifications

Part Number231413
Air Inlet Size (in)1/4
Air Inlet Thread TypeNPT
For Use With55 Gallon (208 Liter) Drum
Maximum Air Inlet Pressure (psi)100
Maximum Speed (RPM)1200
Maximum Viscosity (cP)3000
Maximum Working Pressure (psi)100
Motor TypePneumatic - Rotary Vane
Power Rating (HP)0.25
TypeAgitator
Weight (lb)25.8
Wetted MaterialStainless Steel, Acetal, AF, Nylon, PTFE

Specifications as published by Graco for part 231413.

Where to Buy Graco 231413 Heavy Duty Back-Geared Drum Agitator with Elevator and Drum Cover in Michigan, Indiana and Ohio

Fluid Transfer Systems, Inc. (FTS) is an authorized Graco distributor and Authorized Repair & Service Center in Novi, Michigan. Manufacturers in Michigan, Indiana and Ohio call FTS for the Graco 231413 Heavy Duty Back-Geared Drum Agitator with Elevator and Drum Cover. Third-generation family owned since 1971, FTS serves all three states from one location at 22545 Heslip Drive, Novi, MI 48375.

From Novi, FTS also serves Graco customers in Michigan, Indiana and Ohio. See who to call for paint finishing equipment in Michigan, Indiana and Ohio.

For pricing and availability, call (248) 348-6700 (Monday to Friday, 8 AM to 5 PM Eastern) or request a quote.

308609EN-Y HEAVY-DUTY STAINLESS STEEL DRUM AGITATOR INSTRUCTIONS-PARTS
308769E 239857 SUPPLY MODULE INSTRUCTIONS
306287Z ELEVATORS AND PUMP SUPPORTS INSTRUCTIONS
308466J STAINLESS STEEL PASSIVATED DRUM COVERS INSTRUCTIONS-PARTS LIST
345020 FINISHING ACCESSORIES CATALOG
