Graco 225831 Clamp Mounted Drum Agitator, 1 HP

Manufacturer Part Number: 225831

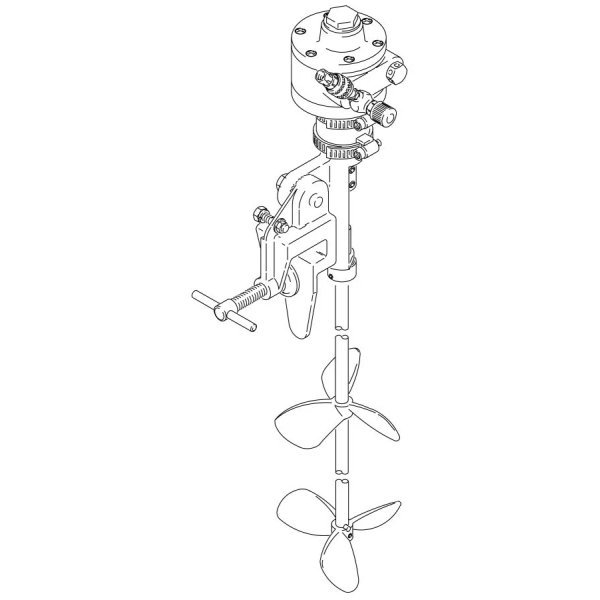

Clamp Mounted Drum Agitator, air driven, 1 HP, 41.5 inches (105.4 cm) in length, includes dual round prop; open drum. Part # 225831.

(248) 348-6700

Save

Product Status:

Available

Category:

Graco Agitators

Manufacturer:

Graco

Graco 225831 Clamp Mounted Drum Agitator, 1 HP

Description:

Clamp Mounted Drum Agitator, air driven, 1 HP, 41.5 inches (105.4 cm) in length, includes dual round prop; open drum

Clamp mounts agitator directly to drum
Adjustable shaft angle to reduce mixing vortex and air entrapment
Dual propeller ensures efficient and thorough mixing
Easy adjustment knob for fine tuning agitator speed to ideal mixing parameters

Graco part number 225831 for use with 55 Gallon (208 Liter) Drum. Call Fluid Transfer Systems at (248) 348-6700 for pricing, availability and help matching the right agitator to your finishing material.

Features:

Technical Specifications

Part Number	225831
Air Inlet Size (in)	1/4
Air Inlet Thread Type	NPT
For Use With	55 Gallon (208 Liter) Drum
Maximum Speed (RPM)	3000
Maximum Working Pressure (psi)	100
Motor Type	Pneumatic - Rotary Vane
Power Rating (HP)	1
Type	Agitator
Weight (lb)	17
Wetted Material	Aluminum, Carbon Steel, Ductile Iron, Bronze
