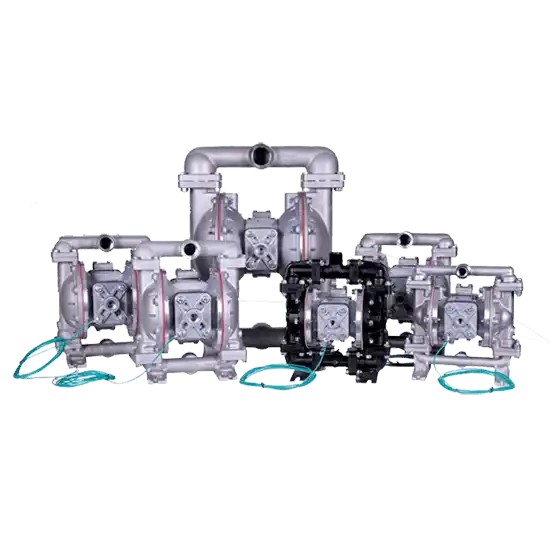

Binks Gemini II double diaphragm pumps are premier pumps for spraying, transferring or circulating a wide variety of coatings, available in conductive acetal, aluminum and stainless steel.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability. FTS is an authorized Binks distributor and repair center.
Product Status:
Category:
Manufacturer:
The Binks Gemini II Diaphragm Pumps are ideal for a variety of materials and viscosities, in applications including wood, general metal fabrication and adhesives. The double diaphragm design provides a 1:1 fluid ratio to the compressed air supply, and flow is adjusted from zero to maximum rated capacity by regulating the inlet air.
The ½" acetal short stroke pump is ideal for a wide variety of spray applications, delivering 27% more fluid per stroke than the Gemini I series with lower pulsation. The ½" pump is available in conductive acetal or stainless steel, the 1" in aluminum or stainless steel, and the 1½" in stainless steel.
Suitable for adhesives, catalyzed varnishes, paints, resins, solvents, specialty coatings and stains.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability. FTS is an authorized Binks distributor and repair center.
| Specification | 41-818836 ½" Acetal | 41-818831 ½" Acetal Short Stroke | 41-818830 ½" Stainless | 41-818820 1" Aluminum | 41-818822 / 41-818823 (BSP) 1" Stainless | 41-818810 1½" Stainless |
|---|---|---|---|---|---|---|
| Air Inlet Pressure Range | 0-100 PSI | 0-100 PSI | 0-125 PSI | 0-125 PSI | 0-125 PSI | 0-125 PSI |
| Air Inlet Size | ¼" NPT | ¼" NPT | ¼" NPT | ½" NPT | ½" NPT | ¾" NPT |
| Max Fluid Pressure | 100 PSI (6.9 bar) | 100 PSI (6.9 bar) | 125 PSI (8.6 bar) | 125 PSI (8.6 bar) | 125 PSI (8.6 bar) | 125 PSI (8.6 bar) |
| Fluid Inlet/Outlet | ½" NPT | ½" NPT | ½" NPT | 1" NPT | 1" NPT | 1½" NPT |
| Max Flow Rate | 14 gpm (52 lpm) | 7.5 gpm (28 lpm) | 14 gpm (52 lpm) | 45 gpm (170 lpm) | 45 gpm (170 lpm) | 106 gpm (401 lpm) |
| Max Suction Lift | 13 ft (3.9 m) | 8 ft (2.4 m) | 12 ft (3.6 m) | 17 ft (5.1 m) | 17 ft (5.1 m) | 22 ft (6.7 m) |
| Max Particle Size | .125" (3 mm) | .125" (3 mm) | .125" (3 mm) | .25" (6 mm) | .25" (6 mm) | .25" (6 mm) |
| Max Temperature | 180 F (82 C) | 180 F (82 C) | 220 F (104 C) | 220 F (104 C) | 220 F (104 C) | 220 F (104 C) |
| Cycles Per Gallon | 19.2 | 35.7 | 19.2 | 4.5 | 4.5 | 1.2 |
| Noise Level w/ Muffler | 84 dBA max | 92 dBA max | 86 dBA max | 92 dBA max | 92 dBA max | 95 dBA max |
| Weight | 14 lbs (6.4 kg) | 14 lbs (6.4 kg) | 21 lbs (9.5 kg) | 28 lbs (12.7 kg) | 43 lbs (19.5 kg) | 95 lbs (43.0 kg) |
| Kit | 41-818836 ½" Acetal | 41-818831 ½" Acetal Short Stroke | 41-818830 ½" Stainless | 41-818820 1" Aluminum | 41-818822 / 41-818823 (BSP) 1" Stainless | 41-818810 1½" Stainless |
|---|---|---|---|---|---|---|
| Air End Seal Kit | 41-718850 | 41-718850 | 41-718850 | 41-718855 | 41-718855 | 41-718858 |
| Diaphragm Kit | 41-718853 | 41-718861 | 41-718851 | 41-718856 | 41-718856 | 41-718860 |
| Ball & Seal Kit | 41-718854 | 41-718854 | 41-718852 | 41-718857 | 41-718857 | 41-718859 |
| Operation Manual | 77-2998 | 77-2995 | 77-2997 | 77-2994 | 77-2994 | 77-2993 |
| Part # | Description |
|---|---|
| 41-718800 | Wall mount |
| 41-718805 | Single air control |
| 41-718806 | Dual air control |
| 41-718808 | Dual air control (1" packages) |
| 84-320 | Stainless steel fluid regulator |
| 41-718812-1 | Bypass filter/pulse assembly, pail or drum mount |
| 41-718812-2 | Bypass filter/pulse assembly, 5 gallon wall mount |
| 41-718812-3 | Bypass filter/pulse assembly, 55 gallon wall mount |
| 41-3312-S | Stainless steel direct drive agitator |
| 31-400 | Stainless steel gear reduced drive agitator (drum mount only) |
| 41-818120 | 1" aluminum Gemini II pump package |
| 41-818121 | 1" stainless steel Gemini II pump package |
