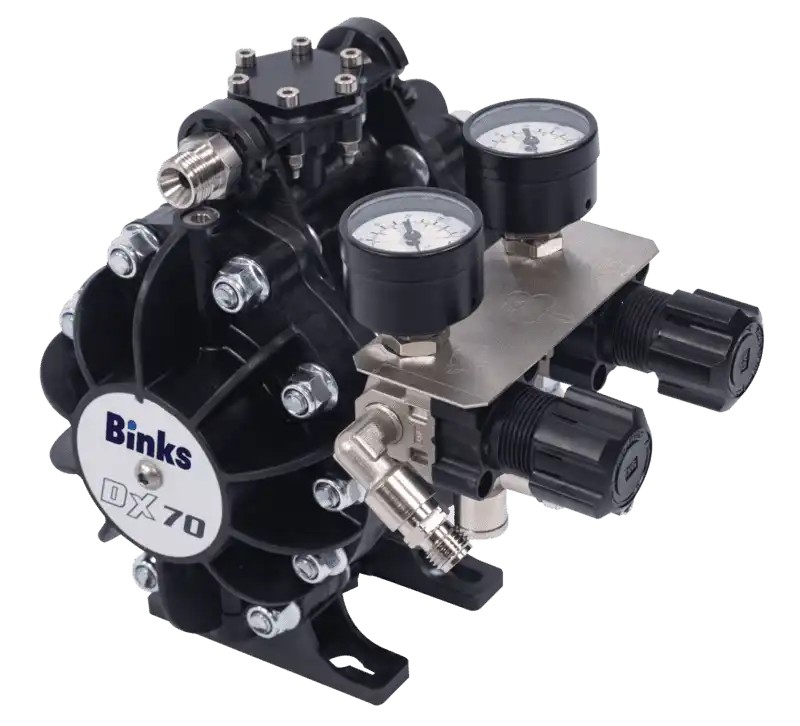

The Binks DX70 is an air operated 1:1 ratio double diaphragm pump for one or two spray gun applications, with faster color changes and quick refills for less production downtime.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability. FTS is an authorized Binks distributor and repair center.
Product Status:
Category:
Manufacturer:
The DX70 is a high specification, air powered, 1:1 ratio double diaphragm pump developed for the direct supply of paints and materials to spray guns. Its no-crease diaphragm shape gives a long working life, and the built-in fluid regulator ensures constant, virtually pulse-free delivery for direct feed to spray guns without an additional fluid regulator or surge chamber.
The DX70 range includes bare pumps, assembled pump packages and complete ready-to-spray outfits matched with Binks spray guns, for conventional, Trans-Tech, HVLP, LVLP and low pressure electrostatic guns.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability. FTS is an authorized Binks distributor and repair center.
| Pump Ratio | 1:1 |
|---|---|
| Max Air Pressure | 100 psi (7 bar) |
| Nominal Flow Volume/Cycle | 0.018 gal (0.07 L) |
| Fluid Output @ 60 cycles/min | 1.1 gal/min (4.2 L/min) |
| Max Continuous Cycle Rate | 10 cycles/min |
| Max Intermittent Cycle Rate | 30 cycles/min |
| Fluid Inlet / Outlet | 3/8" Universal (BSPP/NPSM) male or female |
| Max Dry/Wet Lift | 21.8 ft (6.6 m) |
| Air Inlet | 1/4" BSPP female |
| Air Volume/Cycle @ 100 psi | 0.027 SCFM |
| Noise Level | 68 dB |
| Weight | 4.9 lbs (2.2 kg) |
| Part # | Fluid Fittings | Fluid Regulator |
|---|---|---|
| DX70R-MM | Male inlet / male outlet | Yes |
| DX70N-FF | Female inlet / female outlet | No |
| Package | Configuration | Outfit # (with Trophy HVLP gun 2465-HV1) |
|---|---|---|
| DX70R3-CFG | Cart, 1.4 gal (6 L) gravity feed, filter, 3 air regs | |
| DX70R3-TFG | Tripod, gravity feed, filter, 3 air regs | |
| DX70R3-PFA | Pail, agitator, filter, 3 air regs | 98-3224 |
| DX70R3-WF | Wall, filter, 3 air regs | 98-3228 |
| DX70R3-CF | Cart, filter, 3 air regs | 98-3226 |
| DX70R3-PF | Pail, filter, 3 air regs | 98-3221 |
| DX70R3-TF | Tripod, filter, 3 air regs | 98-3227 |
| Part # | Description |
|---|---|
| DXK-2 | Check valve kit |
| DXK-3 | Diaphragm kit |
| DXK-4 | Shaft and seal kit |
| DXK-15 | Fluid regulator kit |
| DXA-AC3 | Air control (3 regs) |
| DXA-F10ME100 | Filter assembly 100 mesh |
| VS-58 | Filter 100 mesh |
| VS-58-60 | Filter 60 mesh |
| DXA-DVT | Dump valve, tripod/pail |
| DXA-DVW | Dump valve, wall/cart |
| 41-3312-S | Agitator |
