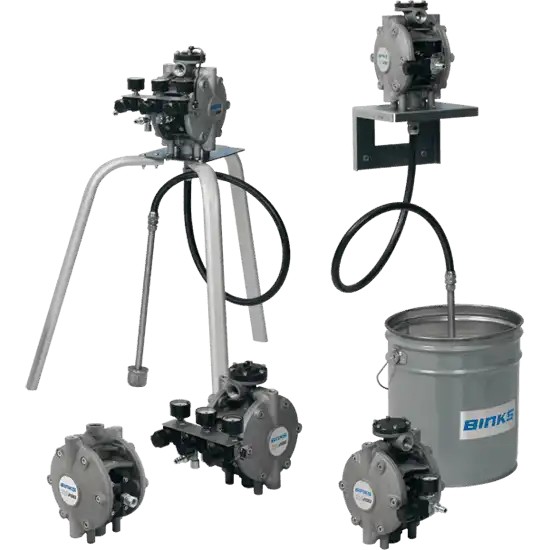

The Binks DX200 is a high flow rate, air operated double diaphragm circulation or transfer pump developed for the direct supply of paints and materials to spray guns.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability. FTS is an authorized Binks distributor and repair center.
Product Status:
Category:
Manufacturer:
The Binks DX200 is designed for finishing applications requiring multi-spray gun usage, or transferring or circulating high to low viscosity materials. Its unique "no-crease" diaphragm gives a long working life, and the optional built-in fluid regulator delivers constant, virtually pulse-free flow for direct connection to spray guns without an additional fluid regulator or surge chamber.
The current DX200-3 is a 3:1 ratio pump with the Eazi-Swap outlet, which can be configured as a standard outlet or fitted with a manual fluid regulator or active surge chamber, even with the pump on line. Low internal volume with no dead areas makes it suitable for piggable systems.
Suitable for wood stains, lacquers and varnishes, primers, sealers and catalysed lacquers, solvent or waterborne coatings, moisture-sensitive and UV-cure coatings, abrasive coatings, adhesives and fillers.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability. FTS is an authorized Binks distributor and repair center.
| Model | DX200-3 (bare pump) |
|---|---|
| Ratio | 3:1 |
| Max Air Pressure | 100 psi (7 bar) |
| Max Fluid Pressure | 305 psi (21 bar) |
| Nominal Flow Volume/Cycle | 0.037 gal (0.14 L) |
| Fluid Output @ 60 cycles/min | 2.2 gal/min (8.4 L/min) |
| Max Continuous Cycle Rate | 25 cycles/min |
| Max Intermittent Cycle Rate | 40 cycles/min |
| Fluid Inlet / Outlet | 1/2" BSPP female |
| Max Dry / Wet Lift | 22.6 ft (6.9 m) / 28.5 ft (8.7 m) |
| Air Inlet | 1/4" Universal (BSPP/NPSM) female |
| Noise Level | 79.8 dBA |
| Weight (bare pump) | 39.4 lbs (17.9 kg) |
| Temperature Range | 32-104 °F (0-40 °C) |
| Dimensions (W x H x D) | 7.6 x 10.35 x 10.4 in. (193 x 262 x 264 mm) |
| Part # | Description |
|---|---|
| DX200-3SN | Pump with no regulator |
| DX200-3SM | Pump with manual regulator |
| DX200-3SP | Pump with active surge chamber |
| DVX-352 | Wall bracket |
| 0115-010186 | Cart mount (also order wall bracket) |
| DXK-274 | Manual fluid regulator |
| DXA-SC31P | DX Series active surge chamber |
| DXA-SCR1.0 | Active surge chamber air reservoir |
| DXK-279 | Non-regulated outlet |
| DXA-F6ME100-200-3 | Fluid filter |
| 194551-K3 | 200 mesh filter screen kit x 3 (75 micron) |
| 194548-K3 | 60 mesh filter screen kit x 3 (250 micron) |
| 194547-K3 | 30 mesh filter screen kit x 3 (595 micron) |
