Autoquip Automation

Autoquip Automation ECO Piston Air Engine agitators, Closed Loop RPM Control, pail, drum and pressure pot lifts, liquid level sensing, color change valves and stacks, gear and dispense pumps, fluid regulators, brush tip cleaners, gun flush boxes, automation, reciprocators and robotics.

(248) 348-6700

Save

Product Status:

Available

Manufacturer:

Autoquip Automation

Description:

Autoquip Automation (Menomonee Falls, WI) has designed, engineered and manufactured industrial paint products for the liquid color change market for over 50 years. The Autoquip line includes Fluid Handling & Metering systems, energy efficient Air Controls & Accessories, and Robotic Systems & Reciprocators — from mix paint tanks, color change valves and reciprocators to air flow controls, paint agitator motors and automated paint equipment. Fluid Transfer Systems is an authorized Autoquip distributor; use the tables below to find Autoquip part numbers, then contact FTS for pricing and availability.

Autoquip Product Offerings

Category	Products
Agitator Motors	ECO-1M Piston Air Engine™ ECO-2M Piston Air Engine™ ECO-3M Piston Air Engine™ ECO-7M Piston Air Engine™ Closed Loop RPM Control
Automation	Autolog Pneumatic Pressure Panels Trigger Packages Vision System
Color Valves and Stacks	Catalyst Poppet Color Valves Large Ported Color Change Manifolds Manual Color Select System Modular Director Stacks Piggable Valves & Manifolds Stainless Steel Poppet Style Color Change Valves
Fluid Metering	Autoquip 1K, 2K, 3K Systems Autoquip Collaborative™ Pump and Control System Gear Pump Mix-At-The-Belt Manual System Springless Fluid Regulator
Miscellaneous Paint Equipment	Air Flow Switch Brush Tip Cleaner Cap Cleaner Gun Flush Box Paint Waste System Solvent Scrubber
Mix Room Equipment	5 Gallon Pail Lift System 55 Gallon Drum Lift System Catalyst Tanks Liquid Level Sensing Mix Tanks Pressure Pot Lift System Pump Flow Control Tank Accessories
Reciprocators & Accessories	Horizontal Reciprocators Reciprocators (Gun Movers) Vertical Reciprocators
Robotics	Robot Cell Systems Robotic System Integration & Installation

Features:

Part Numbers

Also on FTS: ECO-1M, ECO-2M, ECO-3M, ECO-7M Piston Air Engines and the Closed Loop RPM Control.

Autoquip Part Numbers

Part numbers below are taken from Autoquip's product pages and current product flyers. Products not listed with part numbers (automation, reciprocators, robotics, mix and catalyst tanks, piggable and large-ported color valves, 1K/2K/3K systems, etc.) are configured to your application — contact FTS for a quote.

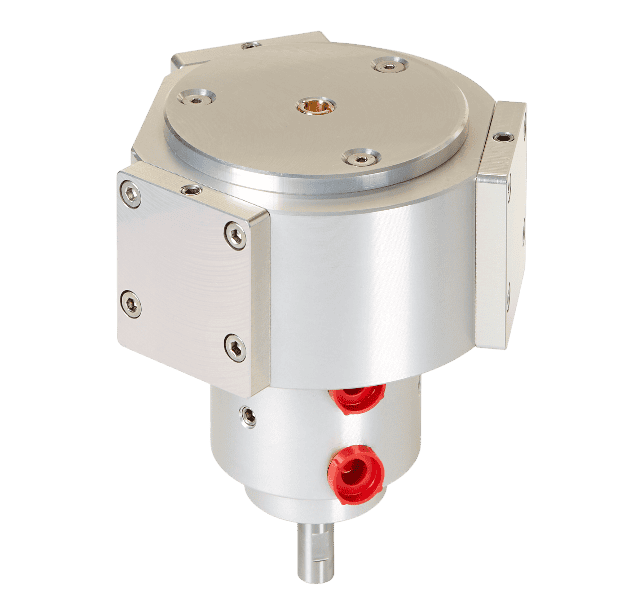

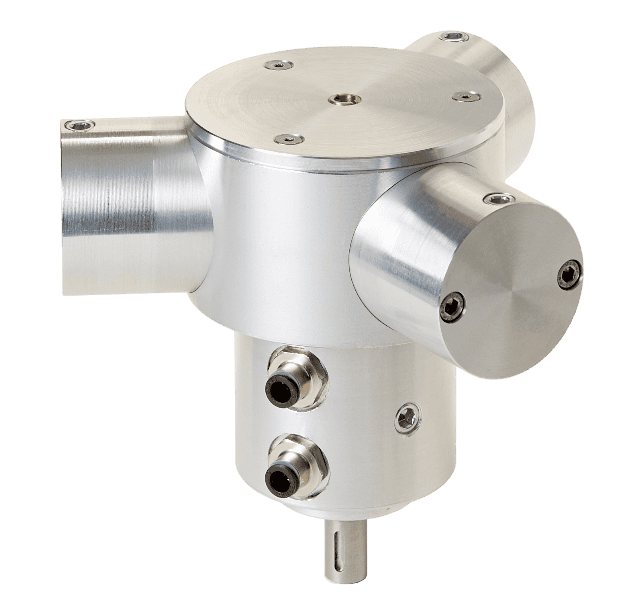

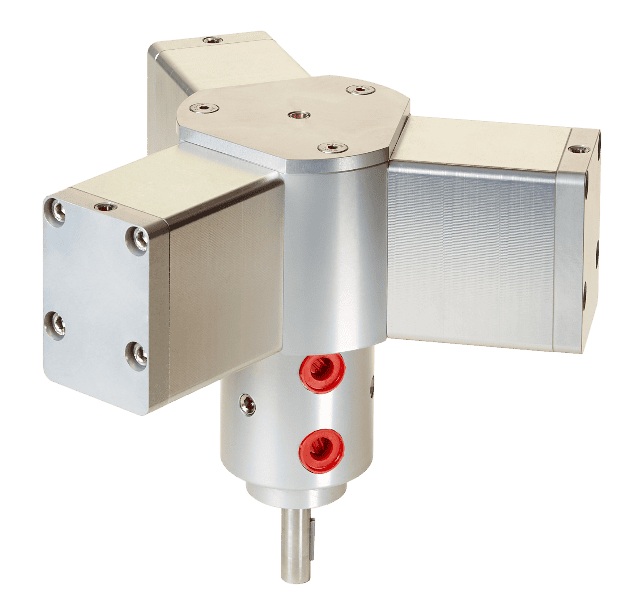

ECO Piston Air Engines™ — Agitator Assemblies

Energy efficient, lube-free piston air motors with high torque at low RPM. Part numbers by air engine size:

Agitator Assembly / Fits	ECO-1M (Size 1)	ECO-2M (Size 2)	ECO-3M (Size 3)	ECO-7M (Size 7)
Air Engine only	3077-HAE1-000	3077-HAE2-000	3077-HAE3-000	3077-HAE7-000
AQ 5 Gal Lid Assembly	3404-PL05-100	3404-PL05-200	—	—
5 Gal Pail Lid Adapter for Graco/Binks without Air Engine	3077-HAE1-050	3077-HAE2-050	—	—
5 Gal Pail Lid Adapter for Graco/Binks with Air Engine	3077-HAE1-150	3077-HAE2-150	—	—
Binks 2 Gal Pressure Tank	3077-BP02-100	3077-BP02-200	—	—
Binks 5 Gal Pressure Tank	—	3077-BP05-200	3077-BP05-300	—
Binks 10 Gal Pressure Tank	—	3077-BP10-200	3077-BP10-300	—
Binks 15 Gal Pressure Tank	—	—	3077-BP15-300	—
Graco 2 Gal Pressure Pot	3077-GP02-100	3077-GP02-200	—	—
Graco 5 Gal Pressure Pot	—	3077-GP05-200	3077-GP05-300	—
Graco 10 Gal Pressure Pot	—	3077-GP10-200	3077-GP10-300	—
Graco 15 Gal Pressure Pot	—	—	3077-GP15-300	—
55 Gal Lid w/ 2" Bung (Drum Bung Adapter)	—	—	3077-2B55-300	3077-2B55-700
55 Gal Lid (Drum Agitator with Air Engine)	—	—	3077-AE55-300	3077-AE55-700
Binks 55 Gal Open Drum	—	—	3077-BK55-300	3077-BK55-700
55 Gal In-Barrel Agitator	—	—	3077-IB55-300	3077-IB55-700
AQ 5 Gal Mix Tank	—	3077-AQ05-200	—	—
AQ 10 Gal Mix Tank	—	3077-AQ10-200	3077-AQ10-300	—
AQ 15 Gal Mix Tank	—	—	3077-AQ15-300	—
AQ 20 Gal Mix Tank	—	—	3077-AQ20-300	—
AQ 30 Gal Mix Tank	—	—	3077-AQ30-300	—
AQ 60 Gal Mix Tank	—	—	3077-AQ60-300	3077-AQ60-700
AQ 80 Gal Mix Tank	—	—	3077-AQ80-300	3077-AQ80-700

ECO Piston Air Engines™ — Kits & Accessories

Kit / Accessory	Size 1	Size 2	Size 3	Size 7
Rebuild Kit	3077-RKT1-000	3077-RKT2-000	3077-RKT3-000	3077-RKT7-000
Installation Kit	3077-INS1-000	3077-INST-000	3077-INST-000	3077-INST-000
Body Sub-Assembly Kit	3077-BSA1-000	3077-BSA2-000	3077-BSA3-000	3077-BSA7-000
Uni Fitting, Male, Straight	KQ2H07-U01A (1/8")	KQ2H11-U02A (1/4")	KQ2H11-U02A (1/4")	—
Closed Loop RPM Control	3114-CLR3-000 (3/8")	3114-CLR3-000 (3/8")	3114-CLR3-000 (3/8")	3114-CLR4-000 (1/2")
Air Engine RPM Gauge	3114-ERPM-100	3114-ERPM-200	3114-ERPM-300	3114-ERPM-700

Source: aqautomation.com ECO-1M, ECO-2M, ECO-3M and ECO-7M product pages and flyers (Rev 0923); RPM gauges from the Pressure Pot Lift System page.

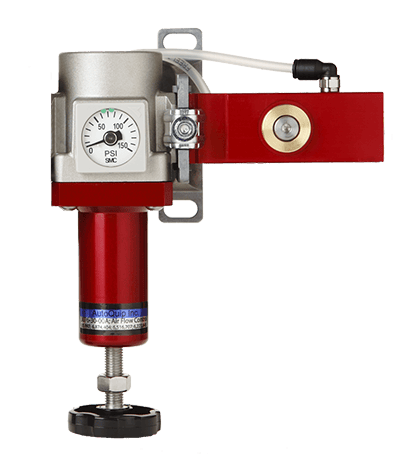

Closed Loop RPM Control & Pump Flow Control

Part Number	Description
3114-CLR3-000	Closed Loop RPM Control, 3/8" NPT (F) inlet/outlet
3114-CLR4-000	Closed Loop RPM Control, 1/2" NPT (F) inlet/outlet
3076-40-01A	Supply Control Valve
3076-AFC3-000	Pump Flow Control (patented pneumatic pump pressure reduction)

Source: Closed Loop RPM Control flyer (Rev 0923.3114.2); Pump Flow Control product page.

5 Gallon Pail Lift System

Air Engine	Ratio	Without RPM Control	With RPM Control
No Air Engine (lid and lift only)	—	3099-5GPL-001	—
Size 2 Air Engine	1:1	3099-5GPL-210	3099-5GPL-212
Size 2 Air Engine	2:1	3099-5GPL-220	3099-5GPL-222
Size 2 Air Engine	3:1	3099-5GPL-230	3099-5GPL-232
Size 3 Air Engine	1:1	3099-5GPL-310	3099-5GPL-312
Size 3 Air Engine	2:1	3099-5GPL-320	3099-5GPL-322
Size 3 Air Engine	3:1	3099-5GPL-330	3099-5GPL-332

Option / Bracket	Description
3099-0520-013	Graco Pump Bracket
3099-0520-020	Nordson Pump Bracket
3099-0520-021	Iwata Pump Bracket
3099-0520-023	Binks Gemini Pump Bracket
3099-0520-079	3D150 Endura Flo Pump Bracket
3099-TRTN-000	Triton Pump Bracket
3076-00-00A	Speed Control Regulator (optional)
3077-AM20-000	Air Motor (optional)

Source: 5 Gallon Pail Lift System product page and flyer (Rev 1123). Pumps sold separately.

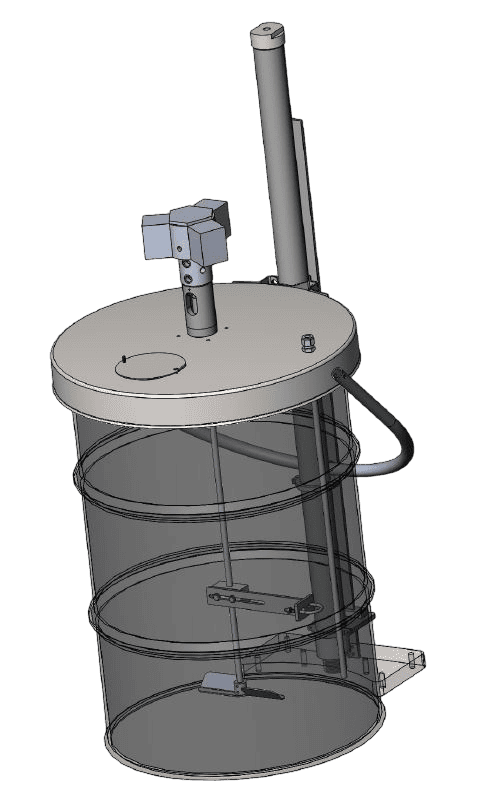

55 Gallon Drum Lift System

Configuration	HAE3 1:1	HAE3 2:1	HAE3 3:1	HAE7 1:1	HAE7 2:1	HAE7 3:1
Back Gear Agitator	3092-BGAG-301	3092-BGAG-302	3092-BGAG-303	3092-BGAG-701	3092-BGAG-702	3092-BGAG-703
Back Gear Agitator and Lid	3092-BGAL-301	3092-BGAL-302	3092-BGAL-303	3092-BGAL-701	3092-BGAL-702	3092-BGAL-703
Back Gear Agitator, Lid and Lift System	3092-BGLS-301	3092-BGLS-302	3092-BGLS-303	3092-BGLS-701	3092-BGLS-702	3092-BGLS-703

Part Number	Description
3077-55LD-301	HAE3 Agitator and Drum Lid
3077-55LD-701	HAE7 Agitator and Drum Lid
3099-55EL-002	55 Gal Elevator and Lid — No Agitator
3099-55EL-300	HAE3 55 Gal Direct Drive Agitator, Elevator, and Lid
3099-55EL-301	HAE3 55 Gal Direct Drive Agitator and Elevator
3099-55EL-700	HAE7 55 Gal Direct Drive Agitator, Elevator, and Lid
3099-55EL-701	HAE7 55 Gal Direct Drive Agitator and Elevator
3092-BGRP-351	1:1 Repair Kit for 3092-BGAG-301 and 3092-BGAG-701
3092-BGRP-352	2:1 & 3:1 Repair Kit for 3092-BGAG-302/303 and 3092-BGAG-702/703
3077-HAE3-000	ECO-3M Piston Air Engine™ (option)
3077-HAE7-000	ECO-7M Piston Air Engine™ (option)
3114-CLR3-000	Standard 3/8" Inlet/Outlet Port Closed Loop RPM Control
3114-CLR4-000	Optional 1/2" Inlet/Outlet Port Closed Loop RPM Control

Source: 55 Gallon Drum Lift System product page and flyer (Rev 0524). Pumps sold separately.

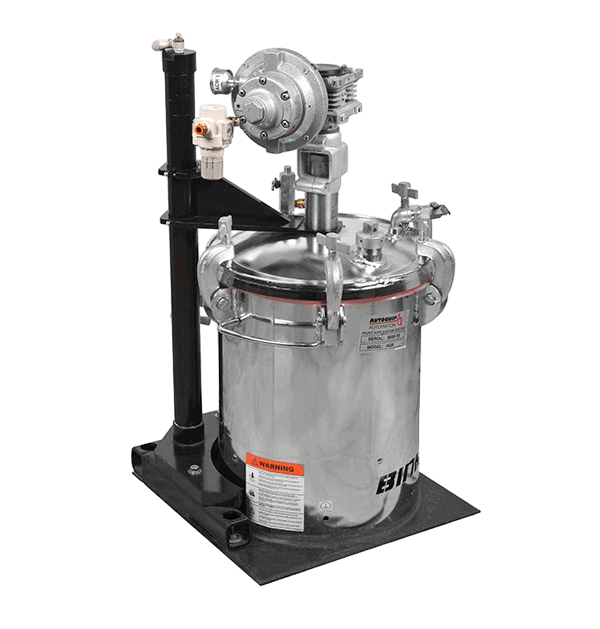

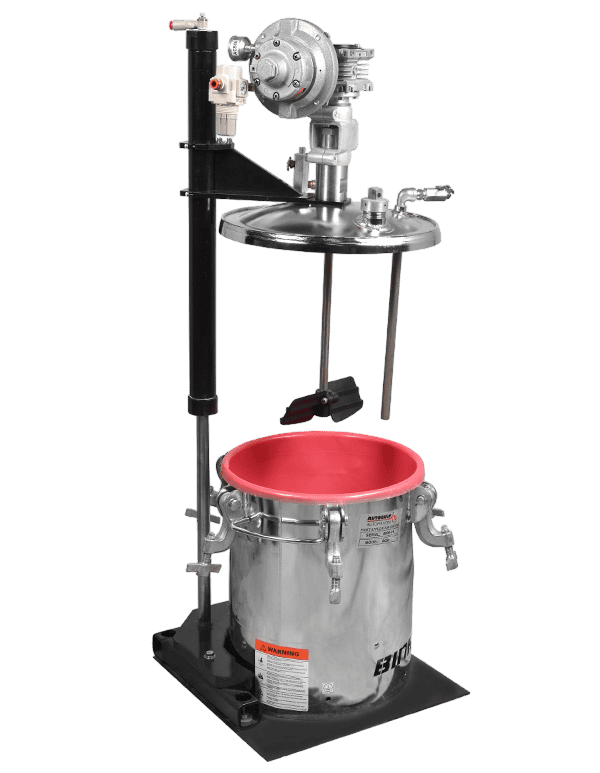

Pressure Pot Lift System

Pressure Pot	Without Piston Air Engine	With Size 2 Air Engine	With Size 3 Air Engine
Graco 5 Gal	3099-GPPL-005	3099-GPPL-205	3099-GPPL-305
Graco 10 Gal	3099-GPPL-010	—	3099-GPPL-310
Binks 5 Gal	3099-BPPL-005	3099-BPPL-205	3099-BPPL-305
Binks 10 Gal	3099-BPPL-010	—	3099-BPPL-310

Source: Pressure Pot Lift System flyer and product page.

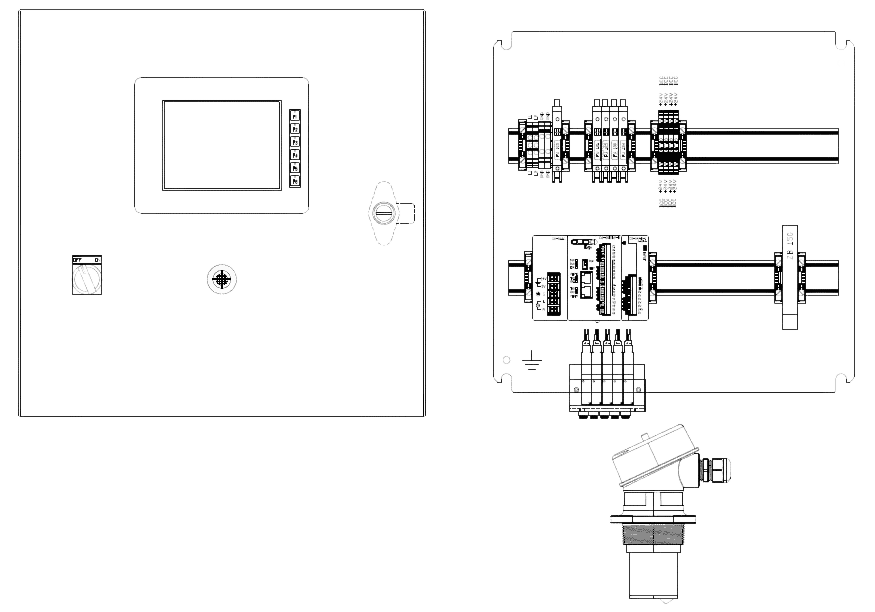

Liquid Level Sensing & Kitchen Monitor and Control

Part Number	Description
3107-VEGA-000	Continuous Level Radar Sensor (with cable, Zener barrier, and fuse blocks)
3107-VEGA-005	Master Enclosure — add up to (4) 3107-VEGA-000 level sensors
3107-VEGA-006	Slave Enclosure 1 — connects to 3107-VEGA-005, add up to (4) sensors
3107-VEGA-007	Slave Enclosure 2 — connects to 3107-VEGA-006, add up to (4) sensors
3107-VEGA-008	Slave Enclosure 3 — connects to 3107-VEGA-007, add up to (4) sensors
3107-KMAC-005	Kitchen Monitor & Control — Master Control Enclosure
3107-KMAC-006	Kitchen Monitor & Control — Slave Control Enclosure
3107-KMAC-MASS	Pump Flow Monitor (mass air flow sensor)
3107-100-000	Agitator RPM Sensor / Switch

Source: Liquid Level Sensing System and Kitchen Monitor and Control flyers.

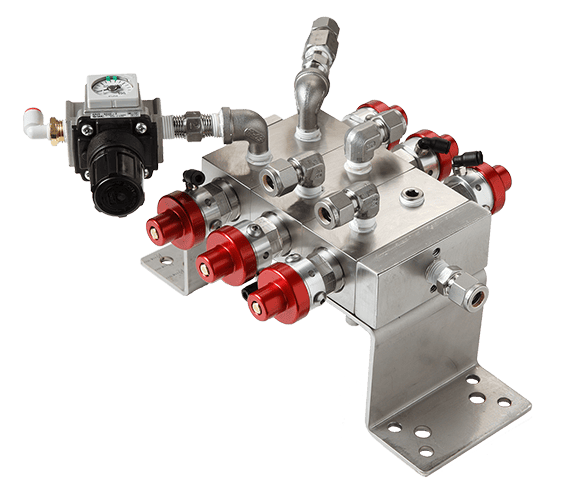

Color Valves & Stacks

Part Number	Description
3066-MD1C-1F0	Modular Director Stack — 1 color (1C, 1D, 1F)
3066-MD1C-SAF	Modular Director Stack — 1 color with solvent and air flush
3066-MD2C-1F0	Modular Director Stack — 2 color (2C, 2D, 1F)
3066-MD2C-SAF	Modular Director Stack — 2 color with solvent and air flush
3066-MD3C-1F0	Modular Director Stack — 3 color (3C, 3D, 1F)
3066-CLRS-100	Manual Color Select System (up to six colors with solvent and air)
3066-41-00A	Poppet Valve (stainless steel standard color stack)
3066-50-00A	Poppet Valve Repair Kit
3066-50-01B	Setting Gauge
3066-PVTK-100	Poppet Valve Repair Tool Kit
3066-3MAC-077	Poppet Tip Part "A" Epoxy
3066-3MPR-100	Poppet Tip Part "B" Epoxy

Source: Modular Director Stacks, Manual Color Select, Standard Color Stack flyers.

Fluid Metering — Gear Pumps, Dispense Pumps, Regulators & Collaborative™ Pump

Part Number	Description
3068-00-06B	1.5 cc Gear Pump
3068-00-06B-HD	1.5 cc Gear Pump — Modified
3817-00-07B	3.0 cc Gear Pump
3817-00-07B-HD	3.0 cc Gear Pump — Modified
3817-00-18B	4.5 cc Gear Pump
3090-DP70-001	70cc Non-Flush Dispenser Pump Assembly
3090-DP70-002	70cc Flushable Dispenser Pump Assembly
3090-DP70-003	70cc Non-Flush Dispenser Pump with 200 PSI Transducers and Poppet Valves
3090-DE00-001	Standard Dispenser Motor Section
3090-DP00-001	Standard 35cc Dispenser Fluid Section
3090-DP35-001	35cc Non-Flushable Dispense Pump Assembly
3090-DP35-002	35cc Flushable Dispenser Pump Assembly
3090-DP35-300	35cc Dispenser Pump with 200 PSI Transducers and Poppet Valves
3090-PC01-000	Dispense Pump Purge Unit (option)
3100-00-00A	Autoquip Collaborative™ Pump — 500 cc/min maximum flow

Springless Fluid Regulator

Seat / Connection	B — 5# Disc Spring	H — 12# Disc Spring
440SS Seat, 1/4" NPS (M)	3286-00-00B	3286-00-00H (Standard)
316SS Seat, 1/8" NPT (F)	3286-00-02B	3286-00-02H
316SS Seat, 1/4" NPS (M)	3286-02-00B	3286-02-00H
440SS Seat, 1/8" NPT (F)	3286-03-00B	3286-03-00H

Accessory	Description
3286-FRTK-100	Fluid Regulator Repair Tool Kit
3286-52-01A	Mounting Bracket
3286-52-02A	Angle Mounting Bracket
3286-75-10A	Fluid Restriction (.010 orifice)
3286-75-14A	Fluid Restriction (.014 orifice)
3286-75-20A	Fluid Restriction (.020 orifice)
3286-75-29A	Fluid Restriction (.029 orifice)
3286-75-40A	Fluid Restriction (.040 orifice)

Source: Gear Pump, Dispense Pump, Fluid Regulator, and Collaborative™ Pump product pages/flyers.

Brush Tip Cleaner & Gun Flush Box

Part Number	Description
3057-00CV-100	Brush Tip Cleaner, Air Piloted, Conventional Gun, Switch Valve
3057-00ES-100	Brush Tip Cleaner, Air Piloted, Electrostatic Gun, Switch Valve
3057-00CV-200	Brush Tip Cleaner, Air Piloted, Conventional Gun (no switch valve)
3057-00ES-200	Brush Tip Cleaner, Air Piloted, Electrostatic Gun (no switch valve)
3057-SFBW-100	Sanitary Pipe Stand with Pump Bracket, Brush Tip Cleaner and Waste Funnel
3057-SFBW-200	Sanitary Pipe Stand without Pump Bracket, with Brush Tip Cleaner and Waste Funnel
3057-IFBW-300	Iron Stand with Pump Bracket, Brush Tip Cleaner and Waste Funnel
3057-IFBW-400	Iron Stand without Pump Bracket, with Brush Tip Cleaner and Waste Funnel
3057-IFBW-500	Brush Tip Cleaner and Waste Funnel Stand Assembly
3057-50-01A-XX	Floor Mount Base (12", 18", 24", 36", 40")
3057-50-02A	Wall Mount Bracket
3057-50-03A	Air Line Lubricator
3057-51-01A	Air Motor Lubrication Oil (gallon)
3057-51-02A	Air Motor Lubrication Oil (quart)
3057-50-00A-2L-1S	Brush Replacement Kit for Electrostatic
3057-50-00A-1L-2S	Brush Replacement Kit for Conventional
3057-50-00B	Brush Replacement Kit (stiffer nylon brush)
3057-10-07A	3" Nylon Brush
3057-10-08A	2" Nylon Brush
3057-99-00A	Tip Cleaner Control Box
3057-BORG-000	Blow Off Kit
3057-INST-000	Brush Tip Cleaner Installation Kit
3065-GFAC-000	Gun Flush Box Assembly with ACOV and Insert
3065-GFAC-100	Gun Flush Box Assembly with ACOV, no Insert
3065-GFNC-000	Gun Flush Box without Cutoff Valve (includes insert)
3065-GFNC-100	Gun Flush Box without Cutoff Valve and without Insert
3065-ACOV-000	Air Cutoff Valve, Atomization
3065-GF-20X	Gun Flush Box Insert (X = gun model; fits most manual guns)

Source: Brush Tip Cleaner and Gun Flush Box flyers (Rev 1121).

Official Autoquip product line: aqautomation.com/our-products. Autoquip notes that product numbers change periodically — FTS will confirm current part numbers when quoting.
