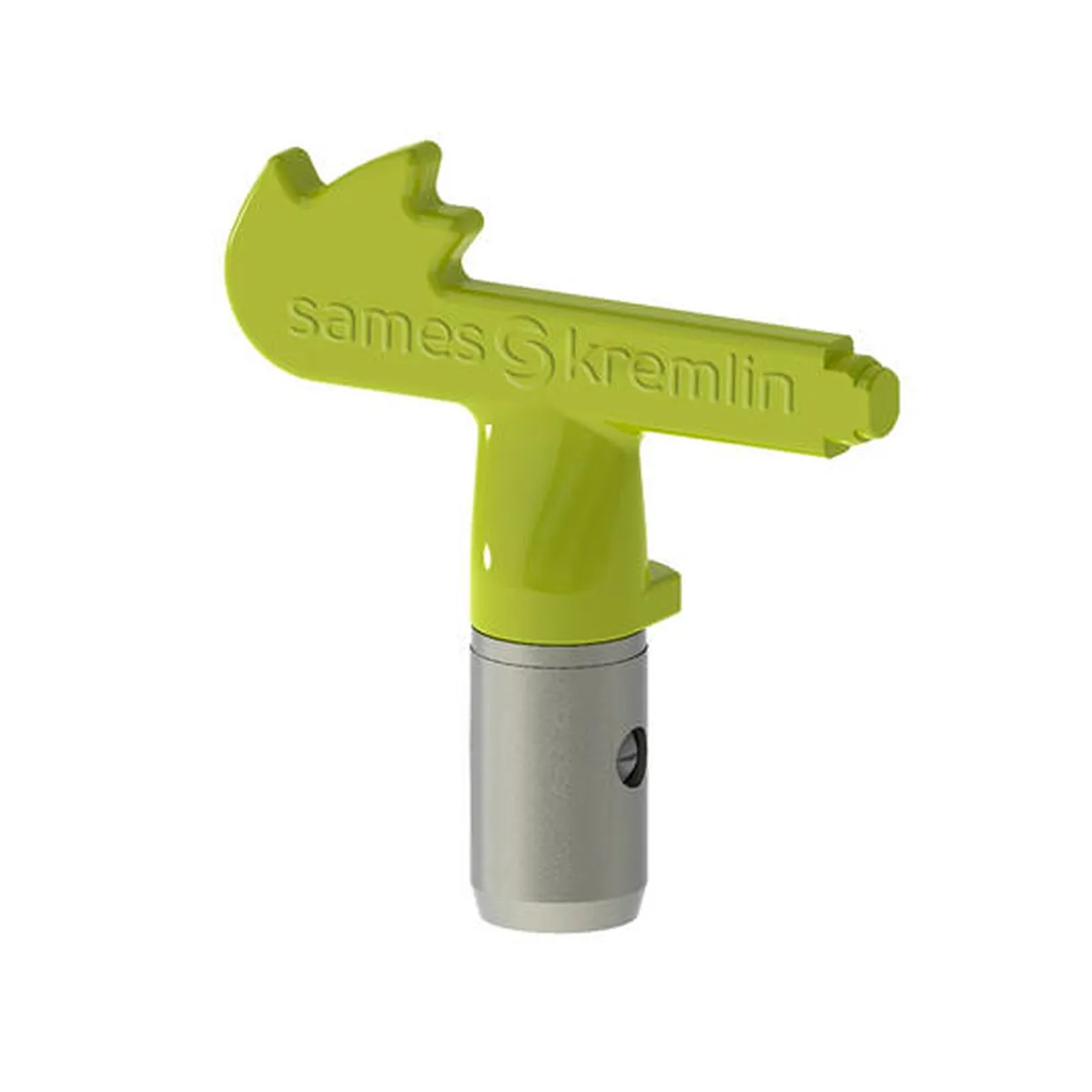

TIPTOP is a Reversible Airless Tip, and can be used either on automatic or manual guns, such as the Sflow® manual gun or the ASI automatic gun.
TIPTOP is a Reversible Airless Tip, and can be used either on automatic or manual guns, such as the Sflow® manual gun or the ASI automatic gun.
Product Status:
Category:
Manufacturer:
TIPTOP is a Reversible Airless Tip, and can be used either on automatic or manual guns, such as the Sflow® manual gun or the ASI automatic gun.
♦ Optimum spraying quality starting from 100 bar (1450 psi).
♦ All tips have the same consistent pattern and flow to guarantee constant productivity
♦ Carbide is the hardest steel in the world to guarantee the longest life possible
| Designation | Value |
|---|---|
| Theoretical Transfer Efficiency (%) | 81 |
| Spraying type | Airless |
| Designation | Part number | Caliber | Spray type |
|---|---|---|---|
| TIPTOP 09-11 (413) | 000400911 | 9 | TIP TOP |
| TIP TOP 04-11 (409) | 000400411 | 4 | TIP TOP |
| TIPTOP 04-13 (509) | 000400413 | 4 | TIP TOP |
| TIPTOP 06-07 (211) | 000400607 | 6 | TIP TOP |
| TIPTOP 06-09 (311) | 000400609 | 6 | TIP TOP |
| TIPTOP 06-11 (411) | 000400611 | 6 | TIP TOP |
| TIPTOP 06-13 (511) | 000400613 | 6 | TIP TOP |
| TIPTOP 06-15 (611) | 000400615 | 6 | TIP TOP |
| TIPTOP 09-07 (213) | 000400907 | 9 | TIP TOP |
| TIPTOP 09-09 (313) | 000400909 | 9 | TIP TOP |
| TIPTOP 09-13 (513) | 000400913 | 9 | TIP TOP |
| TIPTOP 09-15 (613) | 000400915 | 9 | TIP TOP |
| TIPTOP 09-17 (713) | 000400917 | 9 | TIP TOP |
| TIPTOP 12-07 (215) | 000401207 | 12 | TIP TOP |
| TIPTOP 12-19 (315) | 000401209 | 12 | TIP TOP |
| TIPTOP 12-11 (415) | 000401211 | 12 | TIP TOP |
| TIPTOP 12-13 (515) | 000401213 | 12 | TIP TOP |
| TIPTOP 12-15 (615) | 000401215 | 12 | TIP TOP |
| TIPTOP 12-17 (715) | 000401217 | 12 | TIP TOP |
| TIPTOP 14-07 (217) | 000401407 | 14 | TIP TOP |
| TIPTOP 14-09 (317) | 000401409 | 14 | TIP TOP |
| TIPTOP 14-11 (417) | 000401411 | 14 | TIP TOP |
| TIPTOP 14-13 (517) | 000401413 | 14 | TIP TOP |
| TIPTOP 14-15 (617) | 000401415 | 14 | TIP TOP |
| TIPTOP 14-17 (717) | 000401417 | 14 | TIP TOP |
| TIPTOP 14-19 (817) | 000401419 | 14 | TIP TOP |
| TIPTOP 18-07 (219) | 000401807 | 18 | TIP TOP |
| TIPTOP 18-09 (319) | 000401809 | 18 | TIP TOP |
| TIPTOP 18-11 (419) | 000401811 | 18 | TIP TOP |
| TIPTOP 18-13 (519) | 000401813 | 18 | TIP TOP |
| TIPTOP 18-15 (619) | 000401815 | 18 | TIP TOP |
| TIPTOP 18-17 (719) | 000401817 | 18 | TIP TOP |
| TIPTOP 18-19 (819) | 000401819 | 18 | TIP TOP |
| TIPTOP 25-11 (421) | 000402511 | 25 | TIP TOP |
| TIPTOP 25-13 (521) | 000402513 | 25 | TIP TOP |
| TIPTOP 25-15 (621) | 000402515 | 25 | TIP TOP |
| TIPTOP 25-17 (721) | 000402517 | 25 | TIP TOP |
| TIPTOP 25-19 (821) | 000402519 | 25 | TIP TOP |
| TIPTOP 30-11 (423) | 000403011 | 30 | TIP TOP |
| TIPTOP 30-13 (523) | 000403013 | 30 | TIP TOP |
| TIPTOP 30-15 (623) | 000403015 | 30 | TIP TOP |
| TIPTOP 30-17 (723) | 000403017 | 30 | TIP TOP |
| TIPTOP 30-19 (823) | 000403019 | 30 | TIP TOP |
| TIPTOP 40-11 (425) | 000404011 | 40 | TIP TOP |
| TIPTOP 40-13 (525) | 000404013 | 40 | TIP TOP |
| TIPTOP 40-15 (625) | 000404015 | 40 | TIP TOP |
| TIPTOP 40-17 (725) | 000404017 | 40 | TIP TOP |
| TIPTOP 40-19 (825) | 000404019 | 40 | TIP TOP |
| TIPTOP 45-09 (329) | 000404509 | 45 | TIP TOP |
| TIPTOP 45-11 (429) | 000404511 | 45 | TIP TOP |
| TIPTOP 45-13 (529) | 000404513 | 45 | TIP TOP |
| TIPTOP 45-15 (629) | 000404515 | 45 | TIP TOP |
| TIPTOP 45-19 (829) | 000404519 | 45 | TIP TOP |
| TIPTOP 45-17 (729) | 000404517 | 45 | TIP TOP |
| TIPTOP 68-11 (433) | 000406811 | 68 | TIP TOP |
| TIPTOP 68-13 (533) | 000406813 | 68 | TIP TOP |
| TIPTOP 68-15 (633) | 000406815 | 68 | TIP TOP |
| TIPTOP 68-17 (733) | 000406817 | 68 | TIP TOP |
| TIPTOP 68-19 (833) | 000406819 | 68 | TIP TOP |
| TIPTOP 100-15 (739) | 000410017 | 100 | TIP TOP |
| TIPTOP 100-19 - (839) | 000410019 | 100 | TIP TOP |
For pricing and availability on the Sames TIPTOP Reversible Airless Tip, call FTS at (248) 348-6700 or request a quote online.
