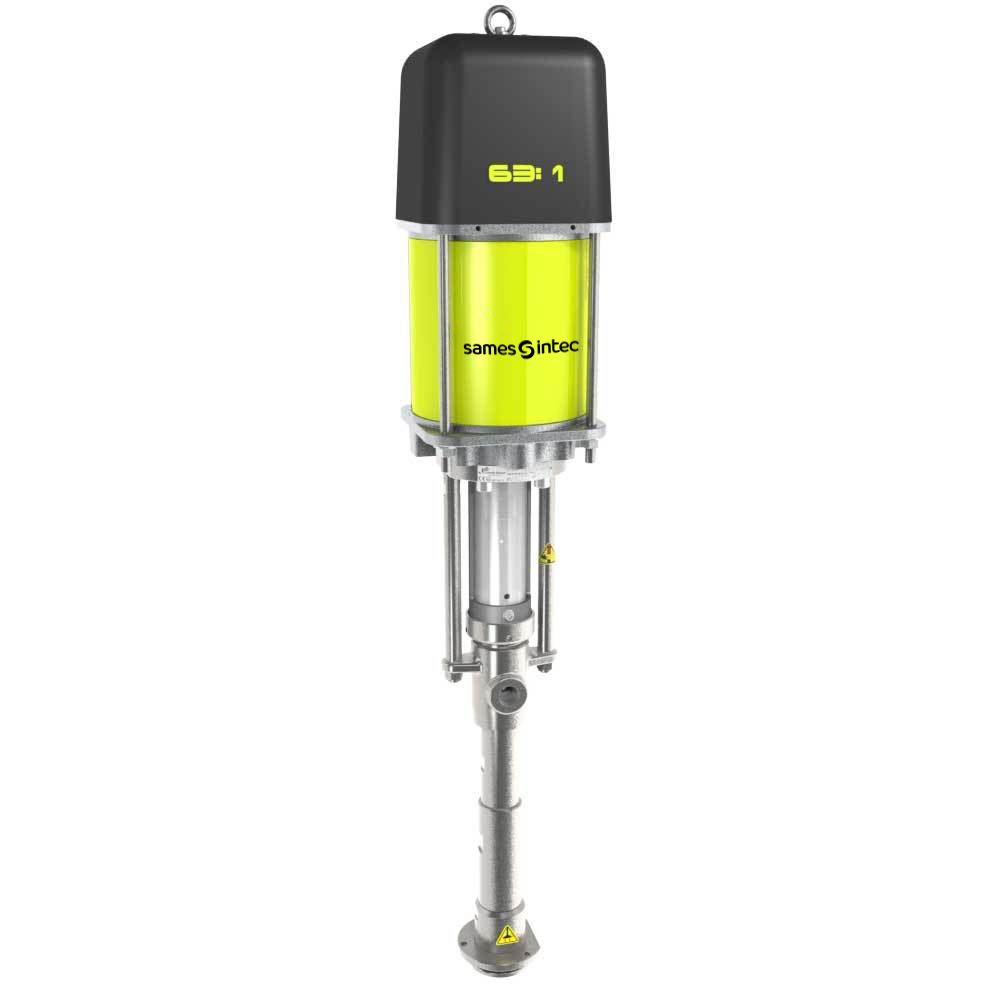

SAMES REXSON SH0106

Highlights

• Robust and reliable
• Simple to maintain
• Configurable and versatile

Performance

• M1 Power distributor: Wide passageway for maximum airflow
• L1 Upper Body: The upper part of the pump is of robust construction and must be able to withstand the maximum pressures.
• L2 Upper Valve: This valve material to pass from the lower chamber allows to the upper chamber of the pump. A conical valve is used to reduce pressure loss.
• L3 Lower Valve: Uses a large conical valve to reduce the pressure loss through the pump and allow easy filling.
• L4 Shovel : Feeds the product to pump inlet. Allows the pump to dispense high visocity material.

Productivity

• M2 The Cover: Very easy to remove and to access the repair parts
• M3 The P ulse Output: The motor can be easily monitored thanks to an air pulse occurring at each reversal.
• L5 Motor adaptation flange: Unique and robust assembly of the motor shaft connection to the pump shaft. Allows quick adaptation to different air motors to vary the pressure ratio of the pump.
• L6 Guard: To guarantee the safety of the operators, this guard prevents contact with the moving shaft of the pump.
• L7 Lower Body: The pump lower is adapted as needed to be fixed on a follower plate, immersed in a bung drum, or simply threaded for connection to a manifold.

Sustainability

• M4 Brass guiding ring: Enduring and accurate guidance system
• M5 Camshaft inversion system: Very reliable reversal system
• L8 Upper seals packing: Our pump range has a wide range of seal materials to suit all your needs.
• L9 Rod and Cylinder: The piston shaft and the cylinder are made of triple chrome steel to ensure excellent abrasion resistance.
