M1 Dual Power distributors: Large passageway for maximum airflow.
L1 Upper Body: The upper part of the pump is of robust construction and must be able to withstand the maximum pressures.
L2 Upper Valve: This valve material to pass from the lower chamber allows to the upper chamber of the pump. A quick responding ball check is used.
L3 Lower Valve: A conical valve is used to reduce pressure loss. It is designed to be as large as possible for easy filling.

M2 The Cover: Very easy to remove and to access the repair parts
M3 The Pulse Output: The motor can be easily monitored thanks to an air pulse occurring at each reversal.
L4 Shovel: Feeds the product to the pump inlet and allows the pump to dispense high viscosity materials.
L5 Longer Stroke: The longer stroke reduces wear on valves, seals and increases the life of the pump.
L6 Lower Body: The pump lower is adapted as needed to be fixed on a follower plate or connected to a manifold.

M4 Brass guiding ring: Enduring and accurate guidance system
M5 Camshaft inversion system: Very reliable reversal system
L7 Upper seals packing: Our pump range has a wide range of seal materials to suit all your needs.
L8 Rod and Cylinder: The piston shaft and the cylinder are made of triple chrome steel to ensure excellent abrasion resistance.

Features:

Technical Specifications

Designation	Value
Maximum Air Pressure (bar)	6
Maximum Air Pressure (psi)	87
Fluid Output at 15 cycles / mn (gal/min)	2.82
Fluid Output at 15 cycles / mn (l/min)	10.7
Fluid Output at 20 cycles / mn (gal/min)	3.78
Fluid Output at 20 cycles / mn (l/min)	14.3
Fluid Output at 60 cycles / mn (gal/min)	11.3
Fluid Output at 60 cycles / mn (l/min)	42.9
Pump displacement (cc/cycle)	715
Pump displacement (in^3/cycle)	43.6
Maximum Material Pressure (bar)	240
Maximum Material Pressure (psi)	3480
Maximum Temperature (°C)	80
Maximum Temperature (°F)	176
Air Inlet Fitting	3/4"BSP(F)
Material Inlet Port	105mm
Material Outlet Port	1"BSP(F)

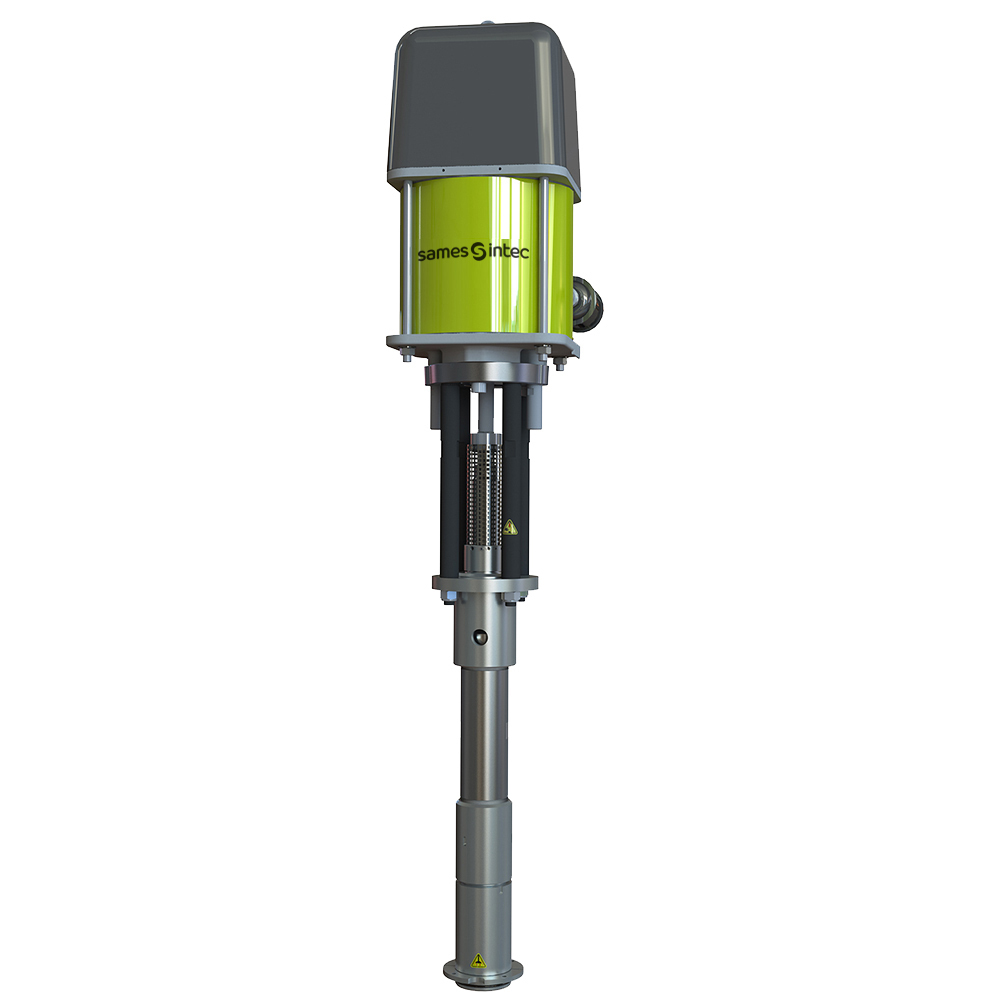

SAMES REXSON SH0715 Datasheet
