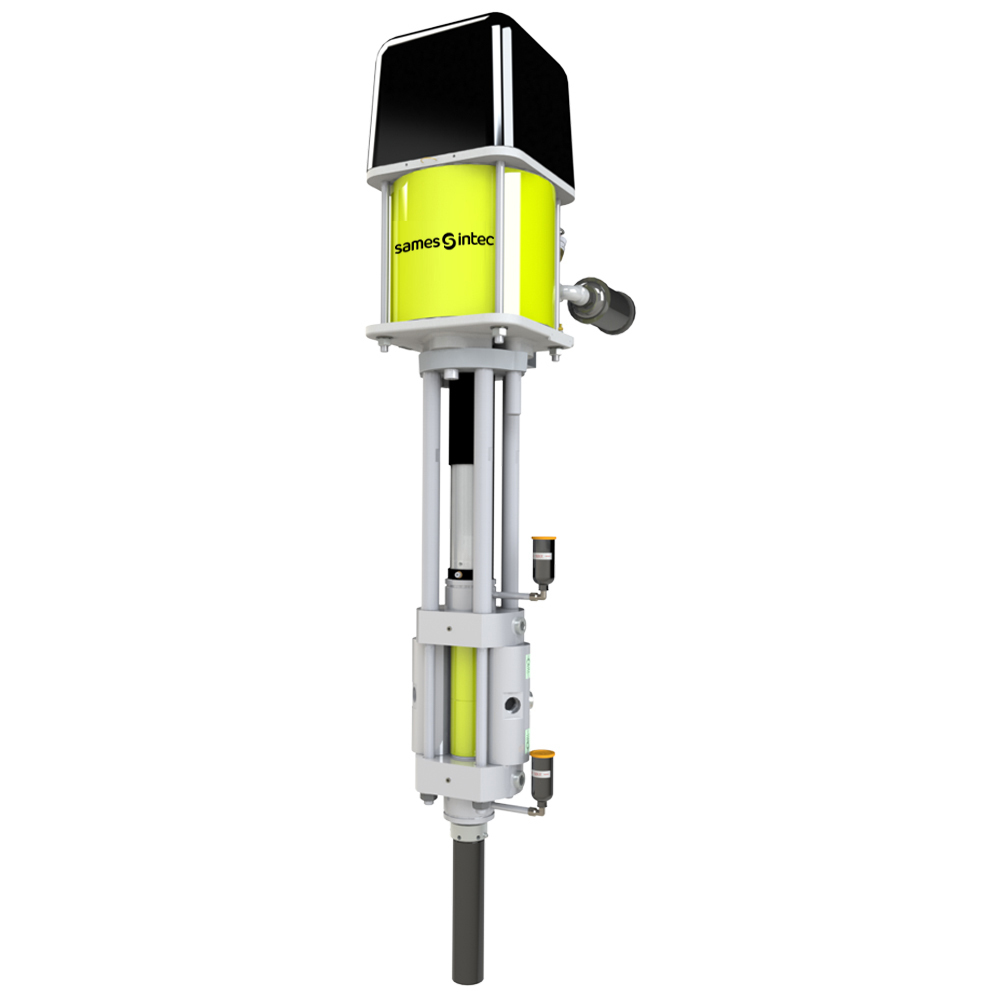

SAMES REXSON 4B570

Highlights

• Robust and reliable
• Simple to maintain
• 3-in-1 functions: Booster, circulating and dosing

Performance

• M1 Power distributor: Large passageway for maximum airflow
• L1 Upper Body: The upper part of the pump is of robust construction and must be able to withstand the maximum pressures.
• L2 Material Piston: Moves the material in and out of the pump. The pump is balanced so there is equal pressure when the pump changes direction.
• L3 Ball Checks: All four checks are interchangeable and use a spring to minimize pump pulsation.

Productivity

• M2 The Cover: Very easy to remove and to access the repair parts
• M3 The Pulse Output: The motor can be easily monitored thanks to an air pulse occurring at each reversal.
• L4 Motor adaptation flange: Unique and robust assembly of the motor shaft connection to the pump shaft. Allows quick adaptation to different air motors to vary the pressure ratio of the pump.
• L5 Guard: To guarantee the safety of the operators, this guard prevents contact with the moving shaft of the pump.
• L6 Lubricator Cup: Includes lubricator cups for each rod seal ensures long lasting seals and isolates them from environmental reactive materials.

Sustainability

• M4 Brass guiding ring: Enduring and accurate guidance system
• M5 Camshaft inversion system: Very reliable reversal system
• L7 Upper / Lower seals packing: Our pump range has a wide range of seal materials to suit all your needs.
• L8 Rod and Cylinder: The piston shaft and the cylinder are made of triple chrome steel to ensure excellent abrasion resistance.
