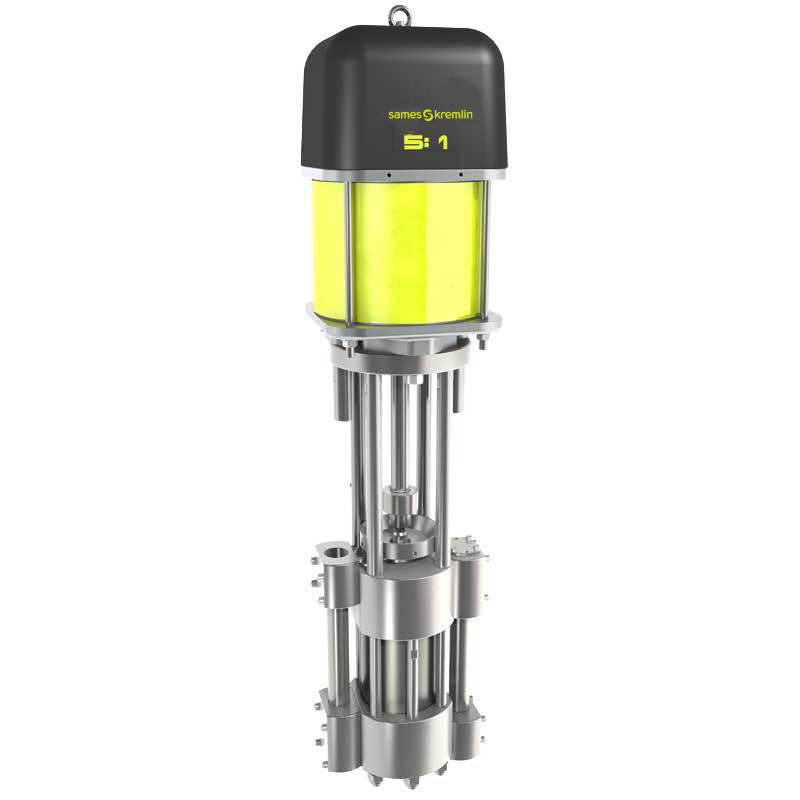

SAMES PCS 03C2200 Quatro

Product Status:

Available

Category:

Manufacturer:

Description:

Separate air command 87 psi (6 bar) to run pump from 7 psi (0.5 bar) prevents air motor stalling
High working flow due to large fluid section volume up to 1.6 gal (6 L) per cycle

Easy maintenance due to external valves accessibility
Cartridge throat packing for a long-term use
Wide variety of cartridges designed for easy replacement: PE, PE+PTFE & PE+Leather

Designation	Value
Maximum Air Pressure (bar)	6
Maximum Air Pressure (psi)	87
Free Flow Rate (gal/min)	34.8
Free Flow Rate (l/min)	132
Pump displacement (cc/cycle)	2200
Depth (in)	135.8
Depth (mm)	345
Height (in)	484.6
Height (mm)	1231
Width/depth (in)	111
Width/depth (mm)	282
Maximum Material Pressure (bar)	18
Maximum Material Pressure (psi)	260.9
Air Consumption at 15 cycles / mn at 4 bar (60 psi) (cfm)	20
Air Consumption at 15 cycles / mn at 4 bar (60 psi) (m3/h)	34
Weight (kg)	96
Weight (lbs)	211.6
Maximum Temperature (°C)	80
Maximum Temperature (°F)	176
Air Inlet Fitting	M 3/4" G
Sound Level (dbA)	7200
