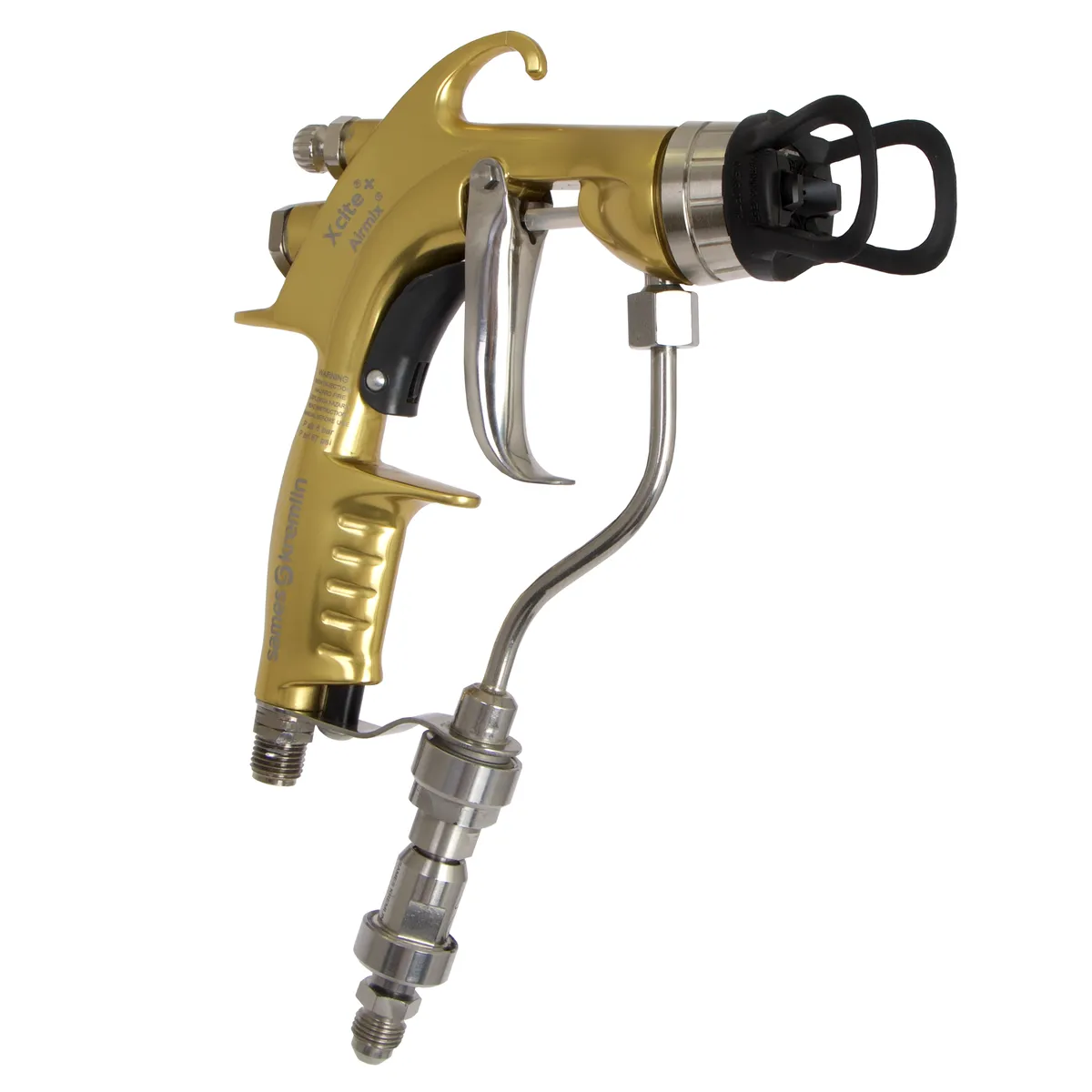

The Airmix® Xcite®+ manual paint spray gun delivers outstanding performance with unsurpassed finish quality for a quick payback. It is available in 3 pressure ranges: 120, 240 & 400 bar (1740-3480-5800 psi) to meet every application.
The Airmix® Xcite®+ manual paint spray gun delivers outstanding performance with unsurpassed finish quality for a quick payback. It is available in 3 pressure ranges: 120, 240 & 400 bar (1740-3480-5800 psi) to meet every application.
Product Status:
Category:
Manufacturer:
The Airmix® Xcite®+ manual paint spray gun delivers outstanding performance with unsurpassed finish quality for a quick payback. It is available in 3 pressure ranges: 120, 240 & 400 bar (1740-3480-5800 psi) to meet every application.
1. Large tip selection with dedicated Xtra Fine Finish tips for water-based material with wide choice of flow rates and fan width patterns
2. Unsurpassed finishing quality and outstanding transfer efficiency with VX24 HVLP air cap
3. Built-in filter with high filtration capacity to avoid tip blockage and minimize pressure loss
♦ Job repeatability with our selection of tips that are individually tested to guarantee a consistent pattern
♦ Diffuser and deflector embedded to decrease the atomizing air consumption and improve atomization
7. Increased operator safety with trigger lock and air cap protection
♦ Anodized body with laser engraving not affected by exposure to solvents
♦ Durable construction and compatible with all types of materials (even water-based with stainless steel fluid passage and Rulon® sealing)
♦ Double seal technology to prevent air cap leakage and paint return on the air circuit
| Designation | Value |
|---|---|
| Maximum Air Pressure (bar) | 6 |
| Maximum Air Pressure (psi) | 87 |
| Recommended Air Pressure (min) (bar) | 0.7 |
| Recommended Air Pressure (min) (psi) | 11.6 |
| Weight (g) | 579 |
| Weight (oz) | 20 |
| Type of electrostatic charge | No electrostatic |
| Air Inlet Fitting | M 1/4 NPS |
| Material Inlet Port | M 1/2" JIC |
| Swivel Fitting (available upon version) | 1 |
| Body Material | Aluminium |
| Wetted Parts | Stainless steel 303, PTFE, Tungsten carbide |
| Certification | ATEX II2G Ex h IIB T6 Gb X |
| Compatible spray tip | Airmix® Asymmetrical, Airmix® Fine Finish, Airmix® Xtra Fine Finish |
| Spraying type | Airmix® |
| Trigger Lock Safety | 1 |
| Designation | Part number | Max pressure (bar) | Length (ft) | Tip |
|---|---|---|---|---|
| Xcite®+ gun 240B | 135732200 | |||
| Xcite®+ gun 120B | 135732120 | |||
| Xcite®+ gun 240B | 135732220 | |||
| Xcite®+ gun 400B | 135732400 | |||
| Xcite®+ gun 120B | 135732100 | |||
| Xcite®+ 120 + 10C18 | 668-665-750 | 120 | ||
| Xcite®+ 120 + 10C18 | 668-665-751 | 120 | 25 | 09-114 |
| Designation | Part number | Aircap | Fittings | Max pressure (bar) | Pressure ratio | Spray gun | Tip | Length (ft) | Seat | Fitting IN/OUT |
|---|---|---|---|---|---|---|---|---|---|---|
| SWIVEL FITTING NG22 500B F1/2'' JIC M1/4NPS | 129732435 | |||||||||
| SWIVEL FITTING NG22 500BAR MF1/2" JIC | 129732425 | |||||||||
| Straight extension 400 mm length | 075810010 | |||||||||
| Textile hose Ø3.2 FF1/2'' JIC 240B 0.6M with spring | 050220061 | |||||||||
| Textile hose Ø3.2 FF1/2'' JIC 240B 1M with spring | 050220101 | |||||||||
| Textile hose Ø3.2 FF1/2'' JIC 240B 1.5M with spring | 050220151 | |||||||||
| Textile hose Ø3.2 FF1/2'' JIC 240B 2M with spring | 050220201 | |||||||||
| Textile hose Ø3.2 FF1/2'' JIC 240B 3M with spring | 050220301 | |||||||||
| Textile hose Ø4.8 FF1/2''JIC 240B 0.6M with spring | 050240061 | |||||||||
| Textile hose Ø4.8 FF1/2'' JIC 240B 1M with spring | 050240101 | |||||||||
| Textile hose Ø4.8 FF1/2'' JIC 240B 1,5M with spring | 050240151 | |||||||||
| Textile hose Ø4.8 FF1/2'' JIC 240B 2M with spring | 050240201 | |||||||||
| Textile hose Ø4.8 FF1/2'' JIC 240B 3M with spring | 050240301 | |||||||||
| GUN,XCITE+120,C/W AIRCAP,TIP,SWIVEL FITTING | 668-720-100 | yes | SWIVEL | 120 | 120 | XCITE+120 | YES | |||
| GUN,XCITE+120,SWIVEL FITTING,C/W 16FT HOSES,AIRCAP,TIP | 668-720-116 | yes | SWIVEL | 120 | 120 | XCITE+120 | YES | |||
| GUN,XCITE+120,SWIVEL FITTING,C/W 25FT HOSES,AIRCAP,TIP | 668-720-125 | yes | SWIVEL | 120 | 120 | XCITE+120 | YES | |||
| GUN,XCITE+120,SWIVEL FITTING,C/W 50FT HOSES,AIRCAP,TIP | 668-720-150 | yes | SWIVEL | 120 | 120 | XCITE+120 | YES | 16 | ||
| GUN,XCITE+120,C/W AIRCAP,TIP,W/O SWIVEL FITTING | 668-720-400 | yes | W/O | 120 | 120 | XCITE+120 | YES | |||
| GUN,XCITE+120,C/W AIRCAP,TIP,W/O SWIVEL FITT,C/W 09-112 | 668-720-401 | yes | W/O | 120 | 120 | XCITE+120 | 09-113 | |||
| GUN,XCITE+120,C/W,AIRCAP,TIP,1/4NPSM,W/O SWIVEL FITTING | 668-720-402 | yes | W/O | 120 | 120 | XCITE+120 | YES | |||
| GUN,XCITE+120,W/O SWIVEL,C/W 25FT HOSES,AIRCAP,TIP | 668-720-425 | yes | W/O | 120 | 120 | XCITE+120 | YES | 25 | ||
| GUN,XCITE+120,W/O SWIVEL,C/W 50FT HOSES,AIRCAP,TIP | 668-720-450 | yes | W/O | 120 | 120 | XCITE+120 | YES | 50 | ||
| GUN,XCITE+120,C/W AIRCAP,TIP,1/4NPS,W/O SWIV FITT(12-114) | 668-720-900 | yes | W/O | 120 | 120 | XCITE+120 | 12-114 | |||
| GUN,XCITE+120,C/W AIRCAP,TIP,1/4NPS,W/O SWIV FITT(12-112) | 668-720-901 | yes | W/O | 120 | 120 | XCITE+120 | 12-112 | |||
| GUN,XCITE+120,C/W AIRCAP(VX124),TIP,W/O SWIVEL FITTING | 668-999-1003 | yes | W/O | 120 | 120 | XCITE+120 | YES | |||
| GUN,XCITE+240,W/O SWIVEL,C/W 65FT HOSES,AIRCAP,TIP | 668-720-365 | yes | W/O | 240 | 240 | XCITE+240 | YES | 65 | ||
| GUN,XCITE+400,C/W CARB SEAT,SFX SWIVEL,AIRCAP,TIP (12-134) | 668-720-800 | yes | SWIVEL | 400 | 400 | XCITE+400 | 12-135 | CARBIDE | ||
| GUN,XCITE+400,C/W CARB SEAT,AIRCAP,TIP,1/4NPSM,W/O SWIVEL | 668-720-801 | yes | W/O | 400 | 400 | XCITE+400 | YES | CARBIDE | 1/4 NPSM | |
| GUN,XCITE+240,C/W AIRCAP,TIP, SWIVEL FITTING | 668-720-200 | yes | SWIVEL | 240 | 240 | XCITE+240 | YES | |||
| GUN,XCITE+240,SWIVEL FITTING, C/W 16FT HOSES,AIRCAP,TIP | 668-720-216 | yes | SWIVEL | 240 | 240 | XCITE+240 | YES | 16 | ||
| GUN,XCITE+240,SWIVEL FITTING,C/W 25FT HOSES,AIRCAP,TIP | 668-720-225 | yes | SWIVEL | 240 | 240 | XCITE+240 | YES | 25 | ||
| GUN,XCITE+240,SWIVEL FITTING,C/W 50FT HOSES,AIRCAP,TIP | 668-720-250 | yes | SWIVEL | 240 | 240 | XCITE+240 | YES | 50 | ||
| GUN,XCITE+240,SWIVEL FITTING,C/W 75FT HOSES,AIRCAP,TIP | 668-720-275 | yes | SWIVEL | 240 | 240 | XCITE+240 | YES | 75 | ||
| GUN,XCITE+240,C/W,AIRCAP,TIP,W/O SWIV,1/4 NPSM FILTER BOWL | 668-720-302 | yes | W/O | 240 | 240 | XCITE+240 | YES |
For pricing and availability on the Sames Airmix® Xcite®+ Manual Spray Gun, call FTS at (248) 348-6700 or request a quote online.
