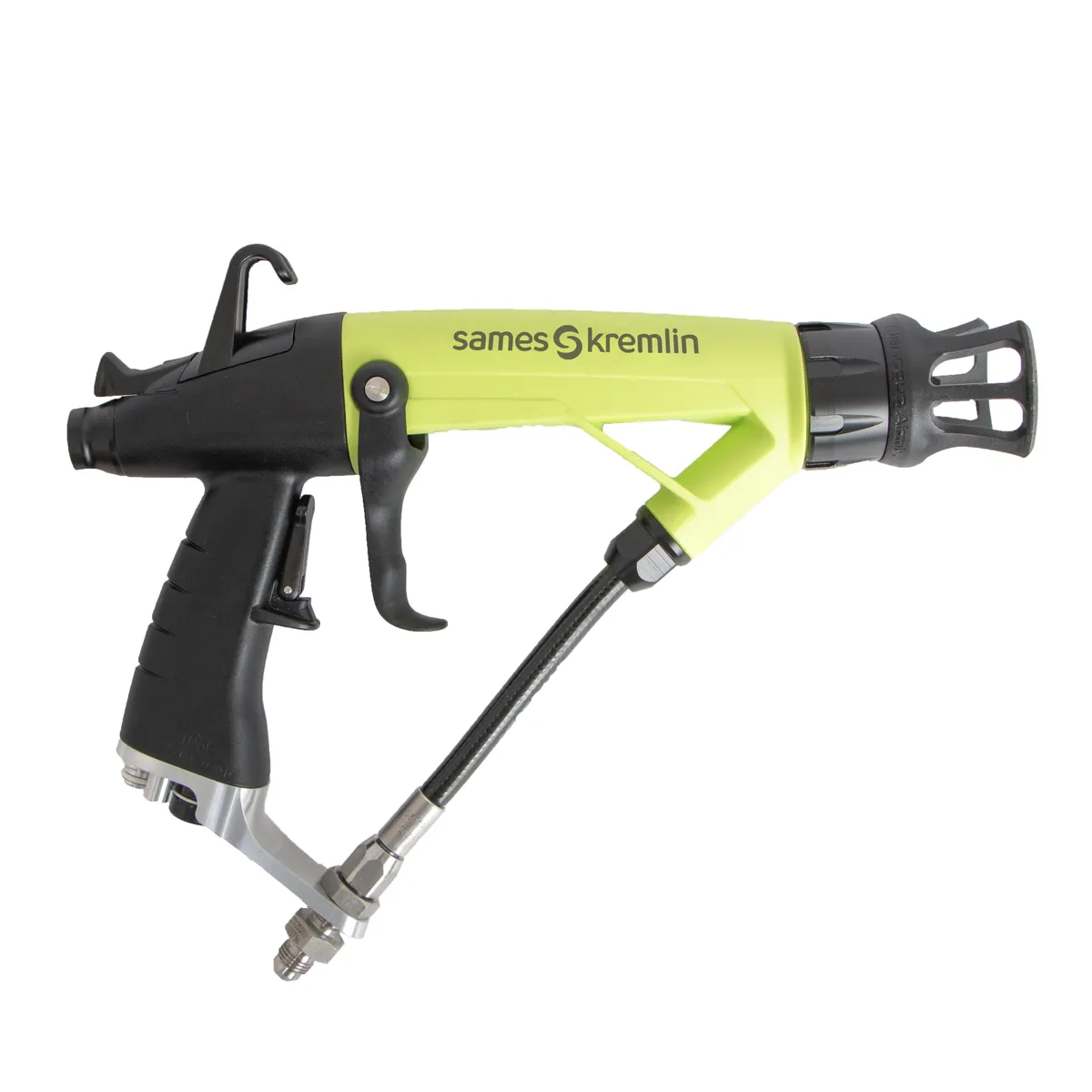

SAMES KREMLIN’s know how in tip design and skills in electrostatic paint application have been gathered in the Nanogun Airmix® to offer the best for spraying liquid solvent-based materials at medium pressures in many markets.
SAMES KREMLIN’s know how in tip design and skills in electrostatic paint application have been gathered in the Nanogun Airmix® to offer the best for spraying liquid solvent-based materials at medium pressures in many markets.
Product Status:
Category:
Manufacturer:
| Designation | Value | Unit: metric (US) |
|---|---|---|
| Maximum Fluid Pressure | 120 / 200 (1740 / 2900) | bar (psi) |
| Recommended Fluid Pressure | 50-120 / 90-200 (720-1740/1300-2900) | bar (psi) |
| Maximum Fluid Outlet | 1230 (42) | cc/min (oz/min) |
| Minimum Fluid Outlet | 100 (5) | cc/min (oz/min) |
| Maximum Air Pressure | 7 (101) | bar (psi) |
| Recommended Air Pressure (min) | 5 (72) | bar (psi) |
| Transfer Efficiency | 93 | % |
| Maximum Fluid Temperature | 40 (104) | °C (°F) |
| Trigger Lock Safety | ♦ | |
| Recommended Material Viscosity Range | 20-120 | s CA4 |
| High Voltage (maximum) | 60 | kV |
| Current | 80 | µA |
| Weight | 670 (23.6) | g (oz) |
| ATEX Certification | II 2 G 0.24 mJ | |
| High Voltage Control Module | GNM6080: II (2) G [0.24 mJ] |
| Designation | Resistivity (High/Low) | Pressure | Hose Length | Part number |
|---|---|---|---|---|
| NANOGUN AIRMIX® | Low | 200 bars (2940 PSI) | 7.5 m (25 ft) | 910021116-072 |
| NANOGUN AIRMIX® | High | 120 bars (1764 PSI) | 15 m (50 ft) | 910021113-152 |
| NANOGUN AIRMIX® | High | 120 bars (1764 PSI) | 30 m (100 ft) | 910021113-302 |
| NANOGUN AIRMIX® | Low | 120 bars (1764 PSI) | 7.5 m (25 ft) | 910021114-072 |
| NANOGUN AIRMIX® | Low | 120 bars (1764 PSI) | 15 m (50 ft) | 910021114-152 |
| NANOGUN AIRMIX® | Low | 120 bars (1764 PSI) | 30 m (100 ft) | 910021114-302 |
| NANOGUN AIRMIX® | High | 200 bars (2940 PSI) | 7.5 m (25 ft) | 910021115-072 |
| NANOGUN AIRMIX® | High | 200 bars (2940 PSI) | 15 m (50 ft) | 910021115-152 |
| NANOGUN AIRMIX® | High | 200 bars (2940 PSI) | 30 m (100 ft) | 910021115-302 |
| NANOGUN AIRMIX® | Low | 200 bars (2940 PSI) | 15 m (50 ft) | 910021116-152 |
| NANOGUN AIRMIX® | Low | 200 bars (2940 PSI) | 30 m (100 ft) | 910021116-302 |
| NANOGUN AIRMIX® | High | 120 bars (1764 PSI) | 7.5 m (25 ft) | 910021113-072 |
| Designation | Tips Water flow rate (cc/min) at 120 bar | Water flow rate (cc/min) at 200 bar | Fan width (cm) at dist. = 25 cm | Part number |
|---|---|---|---|---|
| NOZZLE 03-071 | 200 | 260 | 17 | 130001563 |
| NOZZLE 04-051 | 290 | 380 | 12 | 130001564 |
| NOZZLE 04-071 | 290 | 380 | 17 | 130001565 |
| NOZZLE 04-091 | 290 | 380 | 21 | 130001566 |
| NOZZLE 04-111 | 290 | 380 | 25 | 130001414 |
| NOZZLE 04-131 | 290 | 380 | 29 | 130001415 |
| NOZZLE 06-091 | 430 | 570 | 21 | 130001416 |
| NOZZLE 06-111 | 430 | 570 | 25 | 130001417 |
| NOZZLE 06-131 | 430 | 570 | 29 | 130001418 |
| NOZZLE 06-151 | 430 | 570 | 33 | 130001419 |
| NOZZLE 09-091 | 590 | 770 | 21 | 130001420 |
| NOZZLE 09-111 | 590 | 770 | 25 | 130001421 |
| NOZZLE 09-131 | 590 | 770 | 29 | 130001422 |
| NOZZLE 09-151 | 590 | 770 | 33 | 130001423 |
| NOZZLE 12-111 | 790 | 1030 | 25 | 130001425 |
| NOZZLE 12-131 | 790 | 1030 | 29 | 130001426 |
| NOZZLE 12-151 | 790 | 1030 | 33 | 130001427 |
| NOZZLE 14-091 | 940 | 1230 | 21 | 130001428 |
| NOZZLE 14-111 | 940 | 1230 | 25 | 130001429 |
| NOZZLE 14-131 | 940 | 1230 | 29 | 130001430 |
| NOZZLE 14-151 | 940 | 1230 | 33 | 130001431 |
