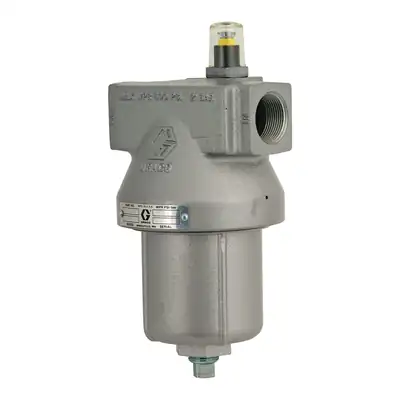

Filtering is your best defense against premature pump wear, gun wear, surface defects, reworks and tip plugging. Graco Low Pressure Red Alert filters use a unique red pop-up indicator and built-in bypass valving to keep finishing lines running while signaling when the element needs service.
Product Status:
Category:
Manufacturer:
This page covers the full Graco Low Pressure Red Alert filter line: medium-volume models 213057–213061 (6 gpm, 3/4 npt) and high-volume models 213062–213066 (20 gpm, 1-1/4 npt). Source: Graco Finishing Accessories Catalog 345020 and manuals 307282 / 307283.
| Specification | Medium Volume (213057–213061) | High Volume (213062–213066) |
|---|---|---|
| Maximum Working Pressure | 300 psi (21 bar, 2.1 MPa) | 300 psi (21 bar, 2.1 MPa) |
| Maximum Flow Rate | 6 gpm (22.7 lpm) | 20 gpm (75.7 lpm) |
| Filter Area | 36 in² (232 cm²) | 225 in² (1451 cm²) |
| Inlet/Outlet | 3/4 npt | 1-1/4 npt |
| Material of Construction | Aluminum, glass sight and FKM o-rings | Aluminum, glass sight and FKM o-rings |
| Type | Low Pressure Red Alert Filter | Low Pressure Red Alert Filter |
Source: Graco Finishing Accessories Catalog 345020. Call FTS at (248) 348-6700 for pricing.
| Part # | Assembly | Filter Area (in²) | Mesh | Inlet/Outlet | Max WPR (psi) | Max Delivery (gpm) | Material | Manual |
|---|---|---|---|---|---|---|---|---|
| 213057 | Complete assembly | 36 | 30 mesh (590 micron) | 3/4 npt | 300 | 6 | Aluminum, glass sight and FKM o-rings | 307282 |
| 213058 | Complete assembly | 36 | 60 mesh (250 micron) | 3/4 npt | 300 | 6 | Aluminum, glass sight and FKM o-rings | 307282 |
| 213059 | Complete assembly | 36 | 100 mesh (149 micron) | 3/4 npt | 300 | 6 | Aluminum, glass sight and FKM o-rings | 307282 |
| 213060 | Complete assembly | 36 | 150 mesh (95 micron) | 3/4 npt | 300 | 6 | Aluminum, glass sight and FKM o-rings | 307282 |
| 213061 | Complete assembly | 36 | 200 mesh (74 micron) | 3/4 npt | 300 | 6 | Aluminum, glass sight and FKM o-rings | 307282 |
| 213062 | Complete assembly | 225 | 30 mesh (590 micron) | 1-1/4 npt | 300 | 20 | Aluminum, glass sight and FKM o-rings | 307283 |
| 213063 | Complete assembly | 225 | 60 mesh (250 micron) | 1-1/4 npt | 300 | 20 | Aluminum, glass sight and FKM o-rings | 307283 |
| 213064 | Complete assembly | 225 | 100 mesh (149 micron) | 1-1/4 npt | 300 | 20 | Aluminum, glass sight and FKM o-rings | 307283 |
| 213065 | Complete assembly | 225 | 150 mesh (95 micron) | 1-1/4 npt | 300 | 20 | Aluminum, glass sight and FKM o-rings | 307283 |
| 213066 | Complete assembly | 225 | 200 mesh (74 micron) | 1-1/4 npt | 300 | 20 | Aluminum, glass sight and FKM o-rings | 307283 |
Replacement elements and less-element assemblies from manuals 307282 and 307283.
| Part # | Description |
|---|---|
| 214001 | Assembly without element (order element separately) |
| 108106 | 30 mesh (590 micron) filter element |
| 108107 | 60 mesh (250 micron) filter element |
| 108108 | 100 mesh (149 micron) filter element |
| 108109 | 150 mesh (95 micron) filter element |
| 108110 | 200 mesh (74 micron) filter element |
| 214002 | Assembly without element (order element separately) |
| 108111 | 30 mesh filter element (for 213062) |
| 108112 | 60 mesh filter element (for 213063) |
| 108113 | 100 mesh filter element (for 213064) |
| 108115 | 150 mesh filter element (for 213065) |
| 108114 | 200 mesh filter element (for 213066) |
