Graco 207996 High Pressure Red Alert Filter with 100 mesh (149 micron) element. 3000 psi maximum working pressure, 20 gpm flow capacity, 1-1/4 npt inlet/outlet, CS construction with glass sight and FKM o-rings.
Graco 207996 High Pressure Red Alert Filter with 100 mesh (149 micron) element. 3000 psi maximum working pressure, 20 gpm flow capacity, 1-1/4 npt inlet/outlet, CS construction with glass sight and FKM o-rings.
Product Status:
Category:
Manufacturer:

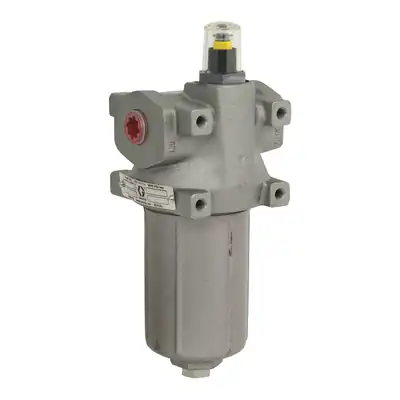

Model 207996 is a High Pressure Red Alert filter assembly with 100 mesh (149 micron) element. Maximum working pressure 3000 psi (210 bar, 20.7 MPa). Flow capacity 20 gpm (75 lpm). Filter area 225 in². Inlet/outlet 1-1/4 npt. Material: CS, glass sight and FKM o-rings. Manual 306987.
| Specification | 207996 |
|---|---|
| Part Number | 207996 |
| Element | 100 mesh (149 micron) |
| Maximum Working Pressure | 3000 psi (210 bar, 20.7 MPa) |
| Maximum Flow Rate | 20 gpm (75 lpm) |
| Filter Area | 225 in² (1451 cm²) |
| Inlet/Outlet | 1-1/4 npt |
| Material | CS, glass sight and FKM o-rings |
| Type | High Pressure Red Alert Filter |
| Dimensions | 6.56 in W × 6.56 in D × 13.08 in H (167 × 167 × 335 mm) |
| Weight | 30 lb 8 oz (13.8 kg) |
| Wetted Parts | Aluminum, iron, fluoroelastomer, PTFE, plated steel |
| Operating Temperature | -40°F to 200°F |
| Part # | Description |
|---|---|
| 207996 | High Pressure Red Alert Filter assembly with 100 mesh (149 micron) element |
| 108113* | Replacement filter element, 100 mesh (149 micron) |
| 102929 | Filter housing less element (order element separately) |
| 104784 | Indicator, filter (Red Alert) |
| 104128 | Valve, by-pass |
| 171430 | Housing, filter |
| 104127* | Spring, element |
| 104131* | O-ring, fluoroelastomer |
| 104129* | Backup, o-ring, fluoroelastomer |
| 171431* | Bowl, filter |
| 104444* | O-ring, fluoroelastomer |
| 104126 | Plug, boss; 3/4-16 UNF |
* Recommended tool box spare parts (Graco manual 306987). Call FTS at (248) 348-6700 for pricing and availability.
| Part # | Description |
|---|---|
| 105278 | Conversion o-ring, ethylene-propylene (for fluids not compatible with fluoroelastomer) |
| 105277 | Conversion backup o-ring, PTFE |
| 105276 | Adapter, 3/4-16 UNF x 1/4 npt; adapts bowl to drain valve |
| 210657 | Drain valve, 1/4 npt(m), fluoroelastomer seals, 5000 psi |
| 214037 | Drain valve, 1/4 npt(m), PTFE seals, 5000 psi |
| 111523 | Filter by-pass valve, opens at 45 psi; for mastic applications |
