Binks Smart Pumps combine digital control with patented reciprocating drive fluid sections for energy efficient, pulse-free paint circulation with proven reliability.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability. FTS is an authorized Binks distributor and repair center.
Product Status:
Category:
Manufacturer:

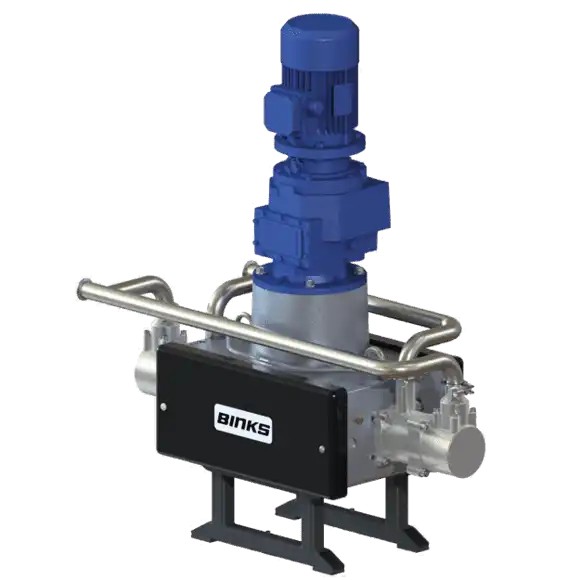

Binks Smart Pumps are found at the heart of large automotive and industrial paint systems. They combine digitally controlled AC motors with patented horizontal reciprocating drive fluid sections, producing a circulating pump that uses a fraction of the energy of pneumatic pumps while treating shear-sensitive paints gently.
An asymmetric constant velocity cam ensures there is always a piston generating pressure, eliminating pulsation and the need for a surge chamber. Combined with the Binks Smart System, pressure monitoring and digital control deliver material to the point of application only when needed, reducing energy and paint consumption. EV versions are retrofittable into tight paint kitchens.
Recommended for solvent and waterborne, UV cured, shear sensitive and moisture sensitive materials in paint circulation.
Request a quote: Call FTS at (248) 348-6700 or contact FTS for pricing, replacement parts and availability. FTS is an authorized Binks distributor and repair center.
| Model | Min Flow (10 cycles/min) | Max Flow (40 cycles/min) | Cycle Displacement | Max Pressure | Motor | Piggable |
|---|---|---|---|---|---|---|
| E2-7 | 0.44 gal (1.66 L) | 1.75 gal (6.64 L) | 0.044 gal (0.166 L) | 290 psi (20 bar) | 0.37 kW | No |
| E2-15 | 1 gal (3.75 L) | 4 gal (15 L) | 0.10 gal (0.375 L) | 290 psi (20 bar) | 0.75 kW | No |
| EV2-15 | 1 gal (3.75 L) | 4 gal (15 L) | 0.10 gal (0.375 L) | 290 psi (20 bar) | 0.75 kW | No |
| E2-15 AFP | 1 gal (3.75 L) | 4 gal (15 L) | 0.10 gal (0.375 L) | 290 psi (20 bar) | 0.75 kW | Yes |
| E2-30 | 2 gal (7.5 L) | 8 gal (30 L) | 0.2 gal (0.75 L) | 300 psi (20.7 bar) | 1.5 kW | No |
| EV2-30 | 2 gal (7.5 L) | 8 gal (30 L) | 0.2 gal (0.75 L) | 290 psi (20 bar) | 1.5 kW | No |
| E2-40 | 2.6 gal (10 L) | 10.6 gal (40 L) | 0.26 gal (1.0 L) | 232 psi (16 bar) | 1.5 kW | No |
| E2-60 | 4 gal (15 L) | 15 gal (60 L) | 0.40 gal (1.5 L) | 290 psi (20 bar) | 3.0 kW | No |
| E4-60 | 4 gal (15 L) | 15 gal (60 L) | 0.40 gal (1.5 L) | 290 psi (20 bar) | 3.0 kW | No |
| E4-100 | 6.5 gal (25 L) | 26 gal (100 L) | 0.65 gal (2.5 L) | 290 psi (20 bar) | 3.7 kW | No |
Binks part numbers listed for this series: E2-30, E2-40, E4-60, 107070, 107071, 107093, EV2-30, EV2-40, EV4-60. Service manuals: 77-3215 (E2-30/40), 77-3319 (EV2-30), 77-3226 (E2-15), 77-3227 (E2-15 AFP), 77-3228 (E2-60), 77-3229 (E4-60), 77-3337 (EV2-15), 77-3245 (E2-7). Contact FTS for any of these manuals.
