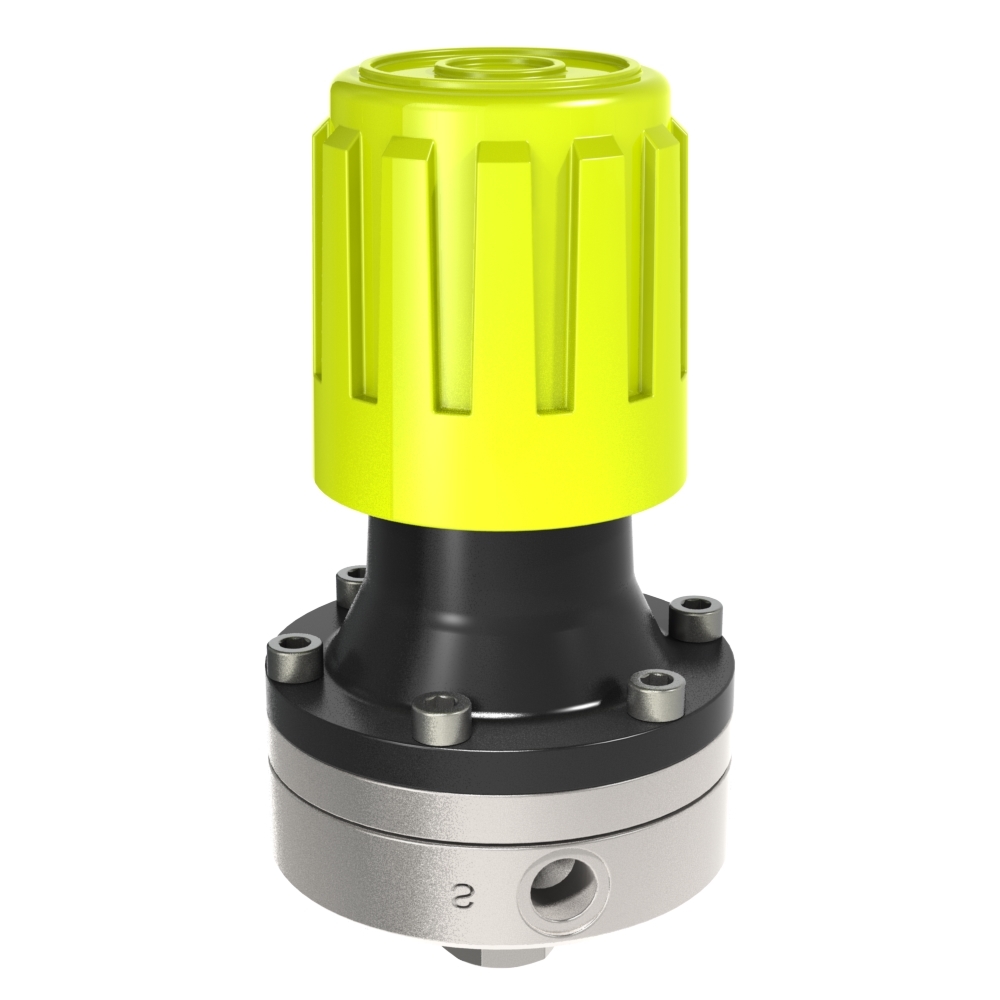

The use of this manual control pressure regulator is the best way to get high-working precision. With continuous control of the pressure, the regulator ensures a regular flow and a pulse-free material delivery.
The use of this manual control pressure regulator is the best way to get high-working precision. With continuous control of the pressure, the regulator ensures a regular flow and a pulse-free material delivery.
Product Status:
Category:
Manufacturer:
| Designation | Value |
|---|---|
| Diameter (Large Passage) (cm) | 0.9 |
| Diameter (Large Passage) (in) | 0.4 |
| Diameter (Small Passage) (cm) | 0.5 |
| Diameter (Small Passage) (in) | 0.2 |
| Height (in) | 3.3 |
| Height (mm) | 8.5 |
| Product Maximum Flow Rate (in a wide passage) (gal/min) | 0.4 |
| Product Maximum Flow Rate (in a wide passage) (l/min) | 1.5 |
| Product Minimum Flow Rate (in a wide passage) (gal/min) | 0.1 |
| Product Minimum Flow Rate (in a wide passage) (l/min) | 0.2 |
| Maximum Inlet Pressure (bar) | 40 |
| Maximum Inlet Pressure (psi) | 580 |
| Outlet Pressure - Regulated Range (bar) | 0.5 - 4 |
| Outlet Pressure - Regulated Range (psi) | 7,2 - 58 |
| Weight (kg) | 1.3 |
| Weight (lbs) | 2.9 |
| Maximum Temperature (°C) | 50 |
| Maximum Temperature (°F) | 122 |
| Wetted Parts | PTFE, Stainless steel 303, Tungsten carbide |
| Certification | ATEX/UKCA II 2G Ex h IIB T6 Gb X |
