ProMix 2KE Proportioner, air, 3:1 Air Spray Merkur & Merkur Bellows pumps, USB reporting, for hazardous location. Available from FTS, an authorized Graco distributor in Novi, MI.
ProMix 2KE Proportioner, air, 3:1 Air Spray Merkur & Merkur Bellows pumps, USB reporting, for hazardous location. Available from FTS, an authorized Graco distributor in Novi, MI.
Product Status:
Category:
Manufacturer:

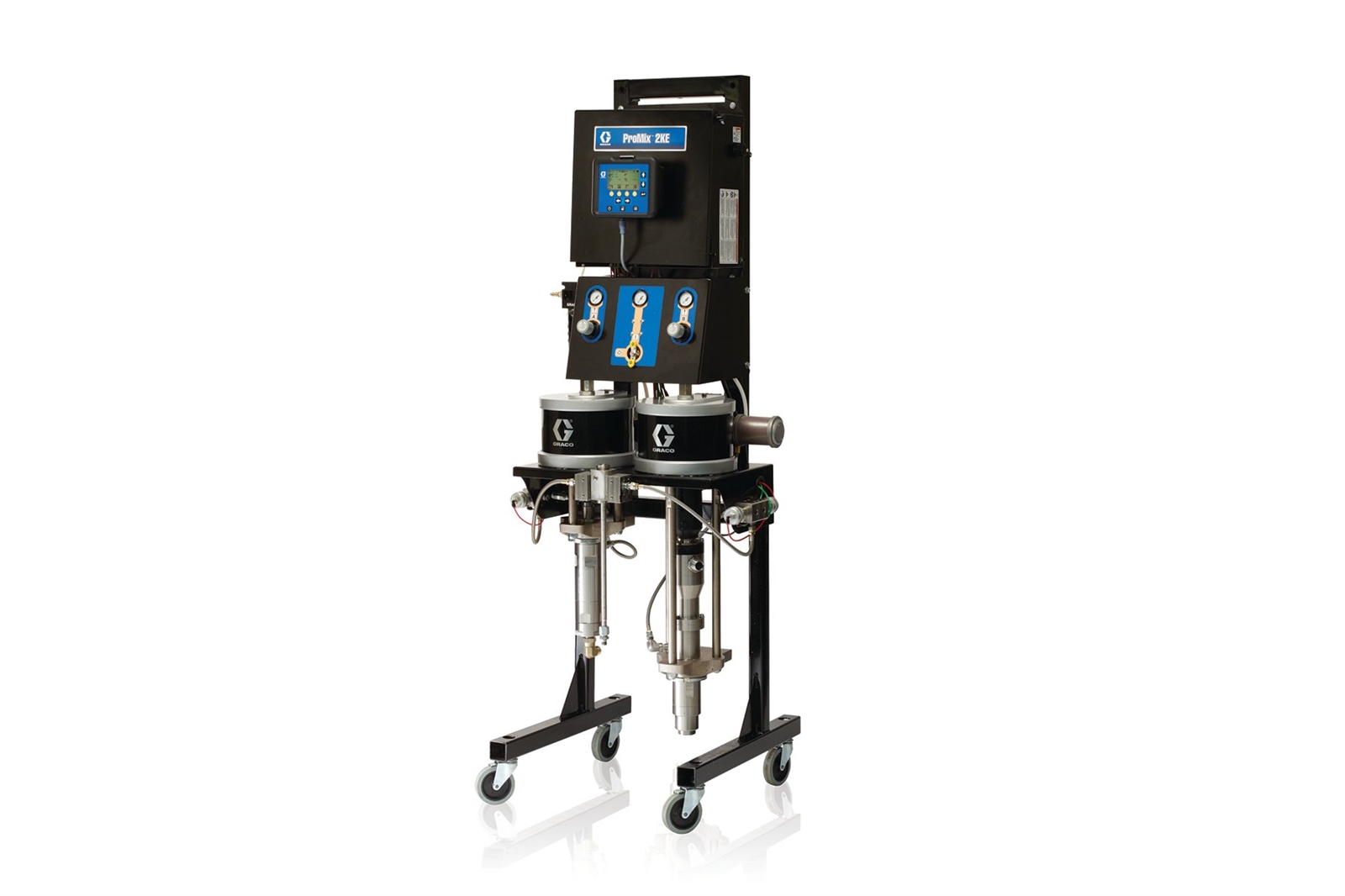

Graco part number 24F113: ProMix 2KE Proportioner, air, 3:1 Air Spray Merkur & Merkur Bellows pumps, USB reporting, for hazardous location.
The ProMix 2KE is an entry level, compact, easy to use plural component system allowing you to mix on-demand for all spray technologies.
Part of the Graco ProMix 2KE family. Manufacturer page: 24F113 on Graco.
FTS is an authorized Graco distributor in Novi, Michigan. For pricing, availability, configuration help or service on Graco ProMix 2KE equipment, call (248) 348-6700 or contact FTS for a quote.
| Part Number | 24F113 |
|---|---|
| Description | ProMix 2KE Proportioner, air, 3:1 Air Spray Merkur & Merkur Bellows pumps, USB reporting, for hazardous location |
| Air Inlet Size (in) | 3/8 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Amperage (A) | 2 |
| Applicator Type | Manual Air Spray |
| Component Type | Two Component |
| Flush Type | Solvent |
| Frequency (Hz) | 50/60 |
| Gun Activation | Manual |
| Includes | Air Motor, Adapter Plate, A-Lower, B-Lower, A-Tie Rod, B-Tie Rod, Coupling, Lower Adapter, TSL Reservoir |
| Material Type | Two Component |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Fluid Viscosity (cP) | 5000 |
| Maximum Mix Ratio | 30:1 |
| Maximum Number of Colors | Up to 3 |
| Maximum Working Pressure (psi) | 300 |
| Measuring Type | Pump |
| Minimum Fluid Viscosity (cP) | 20 |
| Minimum Mix Ratio | 0.1:1 |
| Mix Accuracy (%) | 1 |
| Model | ProMix |
| Number of Catalysts | 1 |
| Number of Color Valves | N/A |
| Number of Colors | 1 |
| Number of Resin Colors | 1 |
| Overall Depth (in) | 14.8 |
| Overall Height (in) | 36.1 |
| Overall Width (in) | 20.1 |
| Power Source | Air |
| Proportioning Type | Manual Electronic |
| Pump Ratio | 3:1 |
| Pump Type | Air Spray Bellows |
| Sound Power Level (dB(A)) | 85 |
| Sound Pressure Level (dB(A)) | 70 |
| Type | Proportioning System |
| Wetted Material | Perfluoroelastomer, PTFE, Stainless Steel, Tungsten Carbide |
Specifications as published by Graco. Confirm configuration with FTS before ordering.
