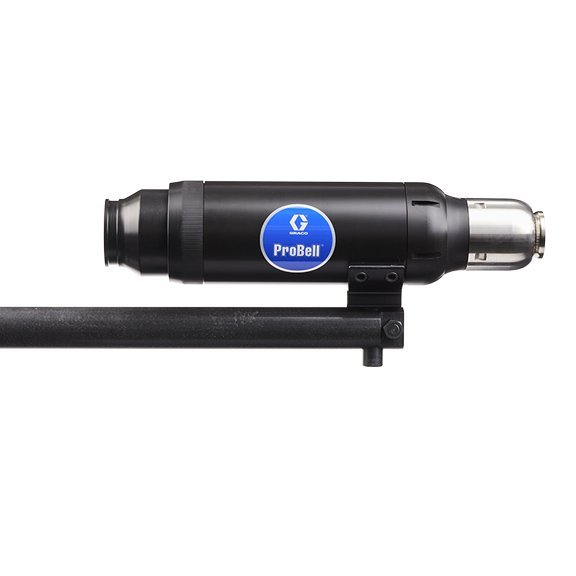

GRACO PROBELL P5A150

Graco part number P5A150: ProBell Applicator System, Standard, Solventborne, 50 mm bell cup, 1.25 mm nozzle and R5A150 applicator.

Combining rotary bell atomization with electrostatic technology is proven to provide up to 95 percent transfer efficiency. This ProBell integrates with solid wrist robots, reciprocators or fixed mounts.

• ProBell delivers the spray performance, pattern and finish quality needed to exceed in any industry. Applications for which the rotary bell atomizer has proven itself include Tier 1 automotive, architectural panels and extruded aluminum, wood products, and more.
• System integration uses existing PLC (programmable logic controller) or new installation.
• Coiled fluid tube controls electrostatic resistivity for a wide range of material.
• Rotary bell atomizer has an aluminum bell cup with serrated edge. Equally spaced axial grooves act as channels for paint flow, producing uniform particles - ideal for atomizing difficult material like clear coats.

Part of the Graco ProBell family.

Graco Manuals & Literature

• Graco ProBell Brochure (PDF)

Graco manuals for this model (ask FTS for a copy):

• 334452K, Manual, ProBell Rotary Applicator, Instructions and Parts
• 334626L, Manual, ProBell Rotary Applicator, Hollow Wrist Style, Instructions and Parts
• 3A4232D, Manual, ProBell Cart Systems, Instructions-Parts
• 3A3657F, Manual, ProBell Electrostatic Controller, Instructions
• 3A3953EN-E, Manual, ProBell Speed Controller, Instructions/Parts
• 3A3954D, Manual, ProBell Air Controllers, Instructions/Parts

Request a Quote from FTS

FTS is an authorized Graco distributor in Novi, Michigan. For pricing, availability, setup help or service on Graco ProBell spray guns, call (248) 348-6700 or contact FTS for a quote.
