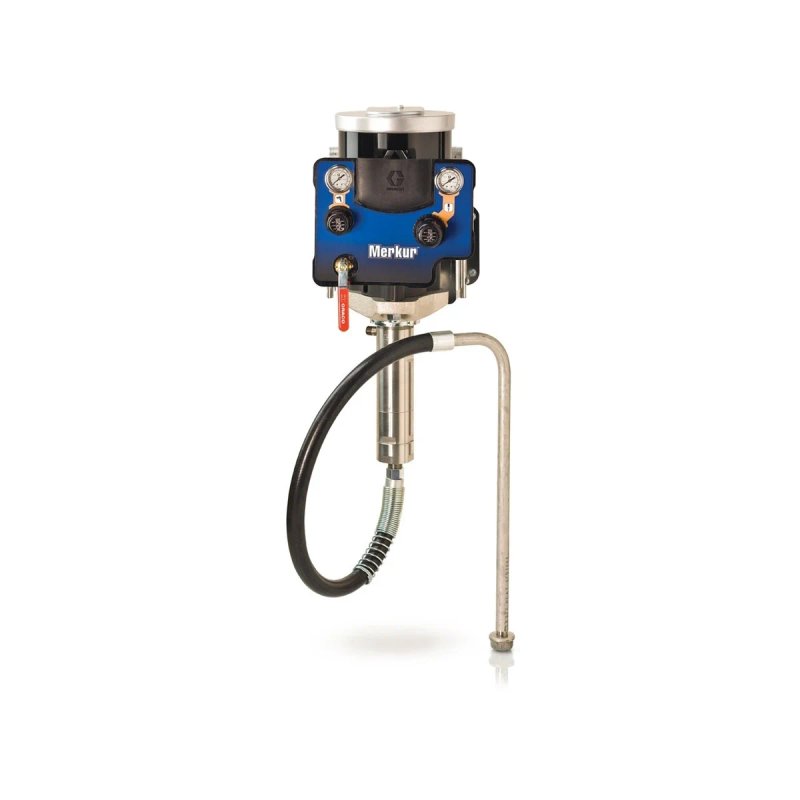

15:1 Merkur Pump, 0.4 gpm (1.5 lpm) fluid flow, Cart Mount, Pump Air Controls, Gun Air/Fluid Hose, Suction Hose. Part # G15C05.
15:1 Merkur Pump, 0.4 gpm (1.5 lpm) fluid flow, Cart Mount, Pump Air Controls, Gun Air/Fluid Hose, Suction Hose. Part # G15C05.
Product Status:
Category:
Manufacturer:
Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.
Graco part number G15C05. Call Fluid Transfer Systems at (248) 348-6700 for pricing, availability and configuration help.
Part of the Graco Merkur Spray Packages line under Graco Spray Packages. Manufacturer page: G15C05 on Graco.
| Part Number | G15C05 |
|---|---|
| Compatible Material | Waterborne, Solventborne, High Solids, Single Components, Topcoats, Varnish, Lacquer, Acid Catalysts, Enamel, UV Coating |
| Fluid Inlet Size (in) | 1/2 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 3/8 |
| Fluid Outlet Thread Type | NPT |
| Gun Included | 0 |
| Gun Model | No Applicator |
| Gun Technology | Bare Package |
| Gun Type | No Applicator |
| Hose Inlet Diameter (in) | 3/16 |
| Includes | Pump and Gun Air Controls, Gun Hose, Suction Hose |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 0.4 |
| Maximum Working Pressure (psi) | 1500 |
| Model | Merkur |
| Mount Type | Cart Mount |
| Power Source | Air |
| Pressure Type | High Pressure |
| Product Type | Bare Package |
| Pump Ratio | 15:1 |
| Pump Type | Pneumatic Piston Pump |
| Spray Type | No Applicator |
| Sprayer Type | High Pressure |
| Technology Type | Airless |
| Type | Bare Package |
| Weight (lb) | 62 |
| Wetted Material | Stainless Steel, Tungsten Carbide with 6% Nickel, UHMWPE, PTFE, Nylon |
| Maximum Flow Rate (L/min) | 1.5 |
Specifications as published by Graco for part G15C05.
