Graco G15B73 Merkur Bellows 15:1 Ratio Air-Assisted Airless Package with U-Cup

Manufacturer Part Number: G15B73

Merkur Bellows 15:1 Ratio Air-Assisted Airless Package with U-Cup Seal, Cart Mount, Fluid Filter, Hoses, PerformAA 15 Spray Gun. Part # G15B73.

Product Status:

Available

Manufacturer:

Graco spray 18610
Graco G15B73 Merkur Bellows 15:1 Ratio Air-Assisted Airless Package with U-Cup

Description:

Merkur Bellows 15:1 Ratio Air-Assisted Airless Package with U-Cup Seal, Cart Mount, Fluid Filter, Hoses, PerformAA 15 Spray Gun

Graco’s Merkur bellows piston pumps provide low maintenance with no seals exposed to the atmosphere. These pumps are designed to eliminate conventional throat seals, providing high reliability for moisture-sensitive materials.

  • Highest technology air motor on the market
  • Low air consumption for increased efficiency
  • Simple air motor design and minimal parts reduces repair time
  • Easy-to-flush design allows for fast color changes and reduced material waste
  • 300 series stainless steel pump construction provides long-lasting durability

Graco part number G15B73. Call Fluid Transfer Systems at (248) 348-6700 for pricing, availability and configuration help.

Part of the Graco Merkur Bellows Pumps line under Graco Spray Packages. Manufacturer page: G15B73 on Graco.

What makes G15B73 different

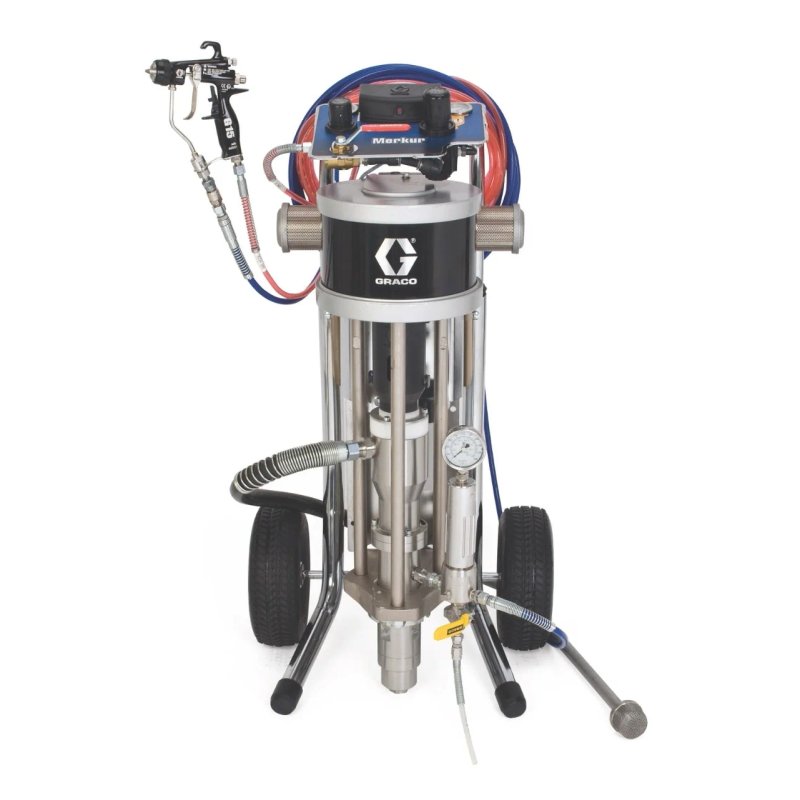

The G15B73 is a cart-mounted 15:1 Merkur air-assisted spray package with a 2.4 gpm maximum flow and 1,500 psi maximum working pressure. It includes a G15 gun, pump and gun air controls, drain valves, a fluid filter, and an U-Cup, and it weighs 126 lb.

Features:

Technical Specifications

Part NumberG15B73
ApplicationSupply
Compatible MaterialWaterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stain, Varnish, UV Coating
ConvertibleNon-Convertible
Fluid Inlet Size (in)1
Fluid Inlet Thread TypeNPT
Fluid Outlet Size (in)3/4
Fluid Outlet Thread TypeNPT
Frame ConfigurationCart
Gun Included1
Gun ModelG15
Gun TechnologyAir-Assisted
Gun TypeAir-Assisted
IncludesPump and Gun Air Controls, Drain Valves, Fluid Filter, U-Cup
Maximum Flow Rate (GPM)2.4
Maximum Hose Length (ft)25
Maximum Working Pressure (MPa)10.3
Maximum Working Pressure (psi)1500
ModelMerkur
Motor TypePneumatic
Mount TypeCart Mount
Number of Guns1
Outlet Paint Filter60 Mesh Stainless Steel Screen
Power SourceAir
Pressure TypeHigh Pressure
Product TypeSpray Package
Pump Ratio15:1
Pump TypePneumatic Piston Pump
SeriesBellows
TypePneumatic Piston Pump
Weight (lb)126
Wetted MaterialStainless Steel
Maximum Hose Length (m)7.6

Specifications as published by Graco for part G15B73.

Where to Buy Graco G15B73 Merkur Bellows 15:1 Ratio Air-Assisted Airless Package with U-Cup in Michigan, Indiana and Ohio

Fluid Transfer Systems, Inc. (FTS) is an authorized Graco distributor and Authorized Repair & Service Center in Novi, Michigan. Manufacturers in Michigan, Indiana and Ohio call FTS for the Graco G15B73 Merkur Bellows 15:1 Ratio Air-Assisted Airless Package with U-Cup. Third-generation family owned since 1971, FTS serves all three states from one location at 22545 Heslip Drive, Novi, MI 48375.

From Novi, FTS also serves Graco customers in Indiana and Ohio. See who to call for paint finishing equipment in Michigan, Indiana and Ohio.

For pricing and availability, call (248) 348-6700 (Monday to Friday, 8 AM to 5 PM Eastern) or request a quote.
