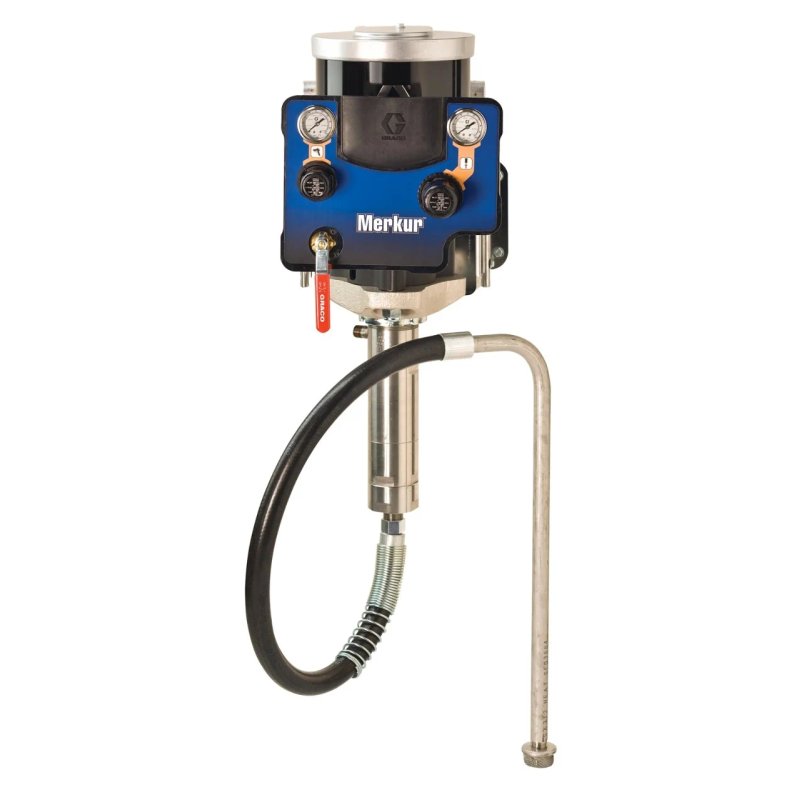

3:1 Merkur Air Spray Package, 125cc, Wall, Pump/Gun Air Controls, Siphon Kit, Fluid and Air Hoses, AirPro Air Spray Gun. Part # G03W03.
3:1 Merkur Air Spray Package, 125cc, Wall, Pump/Gun Air Controls, Siphon Kit, Fluid and Air Hoses, AirPro Air Spray Gun. Part # G03W03.
Product Status:
Category:
Manufacturer:
Make the right choice for your finishing applications with Merkur Low Pressure Packages. The Merkur low-pressure piston pump comes with advanced air spray technology.
Graco part number G03W03. Call Fluid Transfer Systems at (248) 348-6700 for pricing, availability and configuration help.
Part of the Graco Merkur Low Pressure Spray Packages line under Graco Spray Packages. Manufacturer page: G03W03 on Graco.
| Part Number | G03W03 |
|---|---|
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Type | NPT |
| Includes | Pump and Gun Air Controls, Siphon Kit, Fluid Filter |
| Maximum Flow Rate (GPM) | 2 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (psi) | 120 |
| Model | Merkur |
| Power Source | Air |
| Pump Ratio | 3:1 |
| Standards Met | FM Approved, ATEX, CE |
| Type | Air-Powered Sprayer |
| Wetted Material | Stainless Steel, Tungsten Carbide, UHMWPE, PTFE, PEEK, FEP, Acetal, Nylon, Polyethylene |
| Maximum Flow Rate (L/min) | 7.5 |
Specifications as published by Graco for part G03W03.
