Finex Air Spray Pressure Feed Gun, conventional, 0.071 in (1.8 mm) needle/ nozzle size. Available from FTS, an authorized Graco distributor in Novi, MI.
Finex Air Spray Pressure Feed Gun, conventional, 0.071 in (1.8 mm) needle/ nozzle size. Available from FTS, an authorized Graco distributor in Novi, MI.
Product Status:
Category:
Manufacturer:

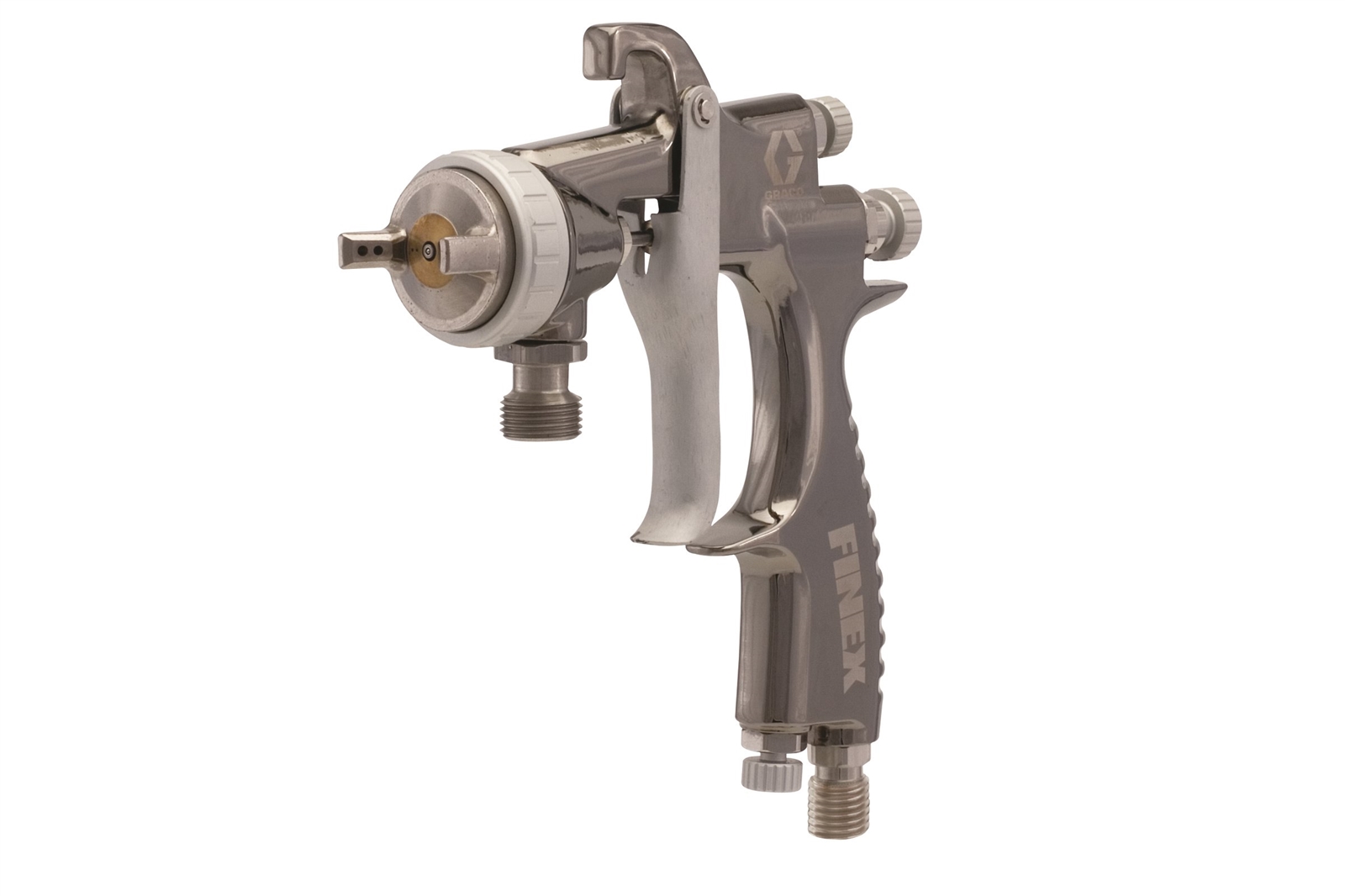

Graco part number 289255: Finex Air Spray Pressure Feed Gun, conventional, 0.071 in (1.8 mm) needle/ nozzle size.
Well-balanced and lightweight, the Finex gun design offers a more affordable way to spray. Available in either pressure feed or gravity feed guns options and HVLP or conventional technologies.
Part of the Graco Finex family.
Graco manuals for this model (ask FTS for a copy):
FTS is an authorized Graco distributor in Novi, Michigan. For pricing, availability, setup help or service on Graco Finex spray guns, call (248) 348-6700 or contact FTS for a quote.
| Part Number | 289255 |
|---|---|
| Description | Finex Air Spray Pressure Feed Gun, conventional, 0.071 in (1.8 mm) needle/ nozzle size |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Manual |
| Bleed Type | Non-Bleeder |
| Body Material | Metal |
| Compatible Material | Epoxy, High Solids, Latex, Plural-Component, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Pressure Feed |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.071 |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | Conventional Gun |
| Gun Weight (lb) | 0.8 |
| Gun Weight (oz) | 13.05 |
| Includes | Air Cap, Needle Assembly, Nozzle, Tool Kit |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 109 |
| Maximum Fluid Working Pressure (psi) | 100 |
| Model | Finex |
| Product Type | Spray Gun |
| Spray Pattern | Flat |
| Spray Type | Air Spray |
| Technology Type | Conventional |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
| Wetted Parts | Aluminum, Stainless Steel, Engineered Plastic |
Specifications as published by Graco. Confirm configuration with FTS before ordering.
