Finex Air Spray Gravity Feed Side Cup Gun, conventional, 0.047 in (1.2 mm) needle/ nozzle size. Available from FTS, an authorized Graco distributor in Novi, MI.
Finex Air Spray Gravity Feed Side Cup Gun, conventional, 0.047 in (1.2 mm) needle/ nozzle size. Available from FTS, an authorized Graco distributor in Novi, MI.
Product Status:
Category:
Manufacturer:
Graco part number 24J602: Finex Air Spray Gravity Feed Side Cup Gun, conventional, 0.047 in (1.2 mm) needle/ nozzle size.

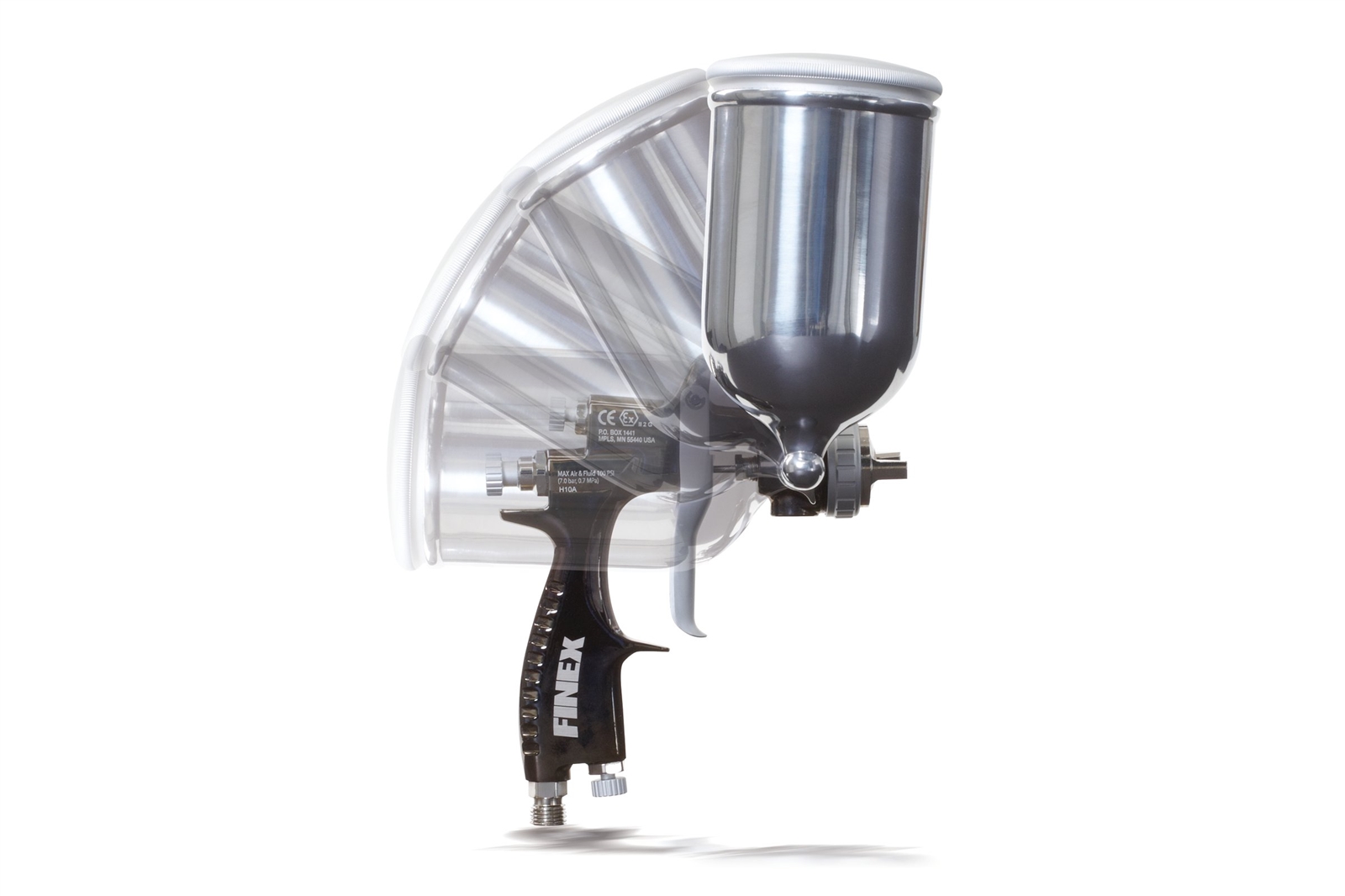

The Finex Side Cup Gun has a cup that swivels – ideal for end users spraying in tight spaces. Available in either HVLP or conventional technologies.
Part of the Graco Finex family.
Graco manuals for this model (ask FTS for a copy):
FTS is an authorized Graco distributor in Novi, Michigan. For pricing, availability, setup help or service on Graco Finex spray guns, call (248) 348-6700 or contact FTS for a quote.
| Part Number | 24J602 |
|---|---|
| Description | Finex Air Spray Gravity Feed Side Cup Gun, conventional, 0.047 in (1.2 mm) needle/ nozzle size |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Type | NPSM |
| Applicator Type | Manual |
| Bleed Type | Non-Bleeder |
| Body Material | Metal |
| Compatible Material | Epoxy, High Solids, Latex, Plural-Component, Sealants, Solventborne, Urethane, Waterborne |
| Feed Type | Side-Cup Gravity Feed |
| Fluid Inlet Size (in) | 3/8 |
| Fluid Inlet Thread Type | NPSM |
| Fluid Orifice Size (in) | 0.047 |
| Gun Activation | Manual |
| Gun Included | 1 |
| Gun Type | Conventional Gun |
| Gun Weight (lb) | 1.2 |
| Includes | Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 109 |
| Model | Finex |
| Product Type | Spray Gun |
| Spray Pattern | Flat |
| Spray Type | Air Spray |
| Technology Type | Conventional |
| Trigger Lock | Non-Locking |
| Trigger Type | Two-Finger |
| Type | Spray Gun |
Specifications as published by Graco. Confirm configuration with FTS before ordering.
