AirPro EFX Auto Air Spray Gun, Direct Connect, Conventional, 0.035 inch (0.9 mm) Nozzle, SST Tip, Lock Ring Fluid Adjust Knob. Available from FTS, an authorized Graco distributor in Novi, MI.
AirPro EFX Auto Air Spray Gun, Direct Connect, Conventional, 0.035 inch (0.9 mm) Nozzle, SST Tip, Lock Ring Fluid Adjust Knob. Available from FTS, an authorized Graco distributor in Novi, MI.
Product Status:
Category:
Manufacturer:

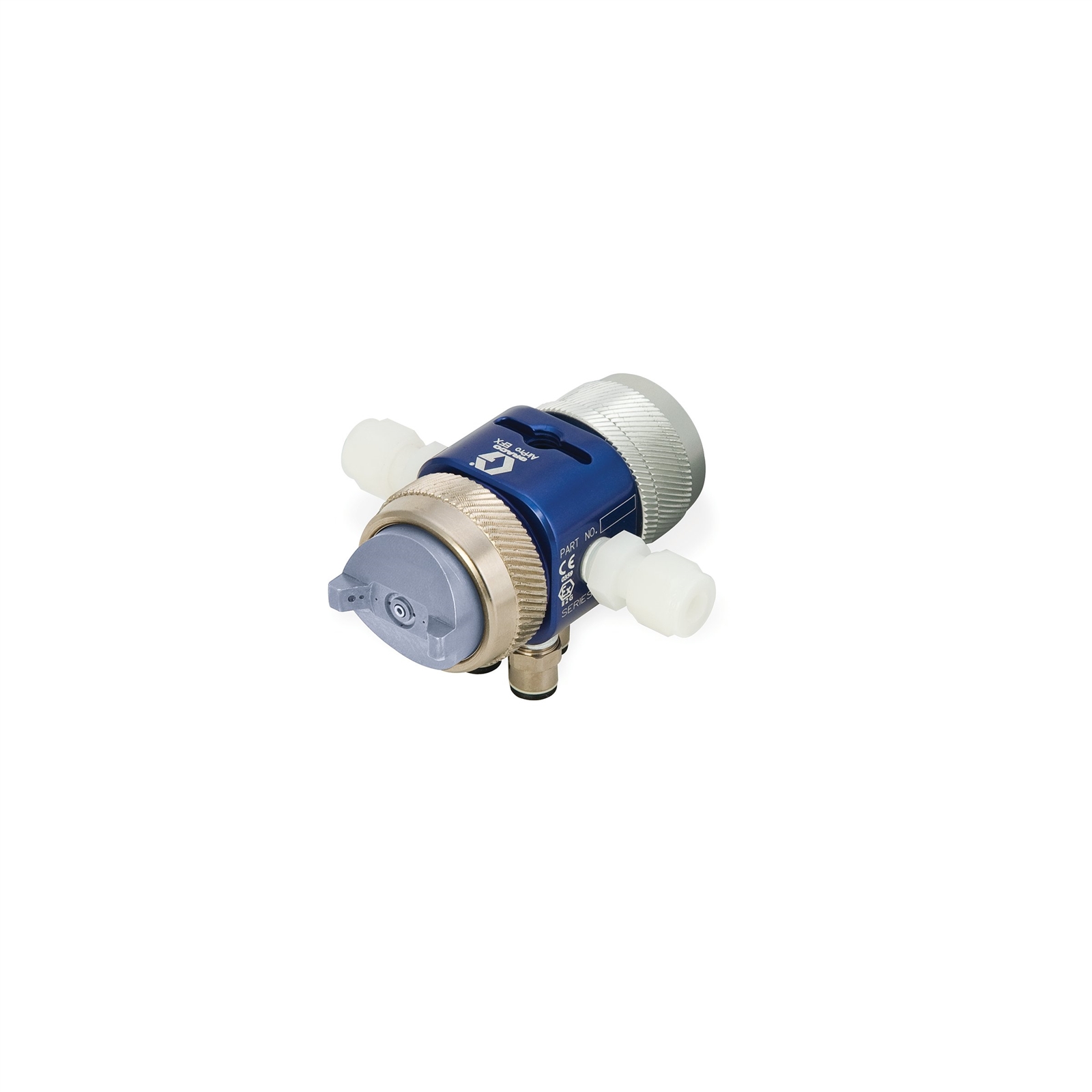

Graco part number 24B878: AirPro EFX Auto Air Spray Gun, Direct Connect, Conventional, 0.035 inch (0.9 mm) Nozzle, SST Tip, Lock Ring Fluid Adjust Knob.
The AirPro EFX air spray automatic guns are among the lightest and most compact guns in their class. With no internal air shutoff mechanism, the AirPro EFX delivers increased reliability and precision fluid flow. The modest size and weight of this gun make it an excellent choice for fixed, reciprocating and robotic applications.
Part of the Graco AirPro EFX family.
Graco manuals for this model (ask FTS for a copy):
FTS is an authorized Graco distributor in Novi, Michigan. For pricing, availability, setup help or service on Graco AirPro EFX spray guns, call (248) 348-6700 or contact FTS for a quote.
| Part Number | 24B878 |
|---|---|
| Description | AirPro EFX Auto Air Spray Gun, Direct Connect, Conventional, 0.035 inch (0.9 mm) Nozzle, SST Tip, Lock Ring Fluid Adjust Knob |
| Applicator Type | Automatic |
| Bleed Type | Bleeder |
| Body Material | Plastic |
| Compatible Material | Ceramics, Enamel, Fast-Set, High Solids, Solventborne, Waterborne |
| Component Type | Single Component |
| Feed Type | Pressure Feed |
| Fluid Adjustment Knob | Lock Ring |
| Fluid Orifice Size (in) | 0.035 |
| Gun Activation | Automatic |
| Gun Type | Conventional Gun |
| Gun Weight (lb) | 0.6 |
| Includes | Air Cap with Pin, Needle/Nozzle Kit, Fluid Adjustment Knob |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Flow Rate @ PSI (oz/min) | 5.1 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Fluid Temperature (°F) | 120 |
| Minimum Flow Rate @ PSI (oz/min) | 0.5 |
| Model | AirPro |
| Needle Tip Material | Stainless Steel |
| Overall Height (in) | 1 |
| Overall Length (in) | 3.5 |
| Overall Width (in) | 1 |
| Purge Method | Air |
| Series | EFX |
| Spray Pattern | Round |
| Spray Type | Air Spray |
| Technology Type | Conventional |
| Type | Spray Gun |
Specifications as published by Graco. Confirm configuration with FTS before ordering.
