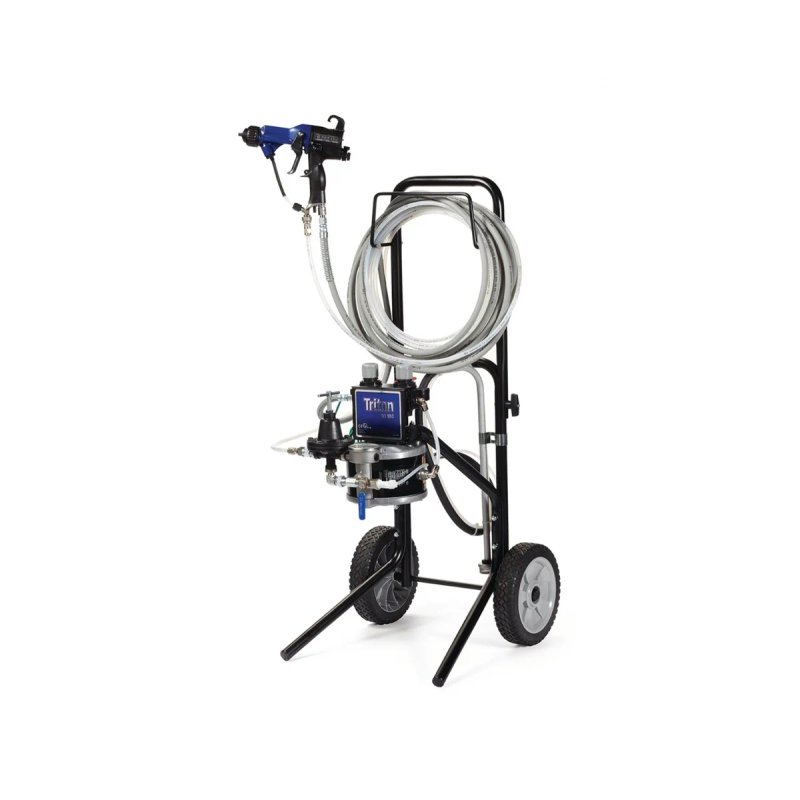

Graco 289641 Triton Alum Spray Package, Cart, 60 psi Fluid Regulator, Pro Xp85

Manufacturer Part Number: 289641

Triton Alum Spray Package, Cart, 60 psi Fluid Regulator, Pro Xp85 Electrostatic Gun, Suction, Air & Fluid Hoses. Part # 289641.

Product Status:

Available

Category:

Manufacturer:

Graco 289641 Triton Alum Spray Package, Cart, 60 psi Fluid Regulator, Pro Xp85

Description:

Triton Alum Spray Package, Cart, 60 psi Fluid Regulator, Pro Xp85 Electrostatic Gun, Suction, Air & Fluid Hoses

Triton® air operated diaphragm pump with Pro XpTM electrostatic air spray gun brings affordable, fine finish spraying to wood and metal applications.

Effective alternative to traditional pressure pots and standard diaphragm pumps saves material and time during flushing, priming and color changes.
Triton® air operated pump produces 30 percent more pumping power and 50 percent less pressure pulsation than standard diaphragm pumps.
Rugged, aluminum pump handles a wide variety of fluids.
Pro Xp electrostatic air spray gun delivers high transfer efficiency when spraying standard or specialty coatings.
With a maximum voltage output of 85 kV, the electrostatic applicator meets strict requirements for spray pattern, mechanical and electrical performance.

Graco part number 289641. Call Fluid Transfer Systems at (248) 348-6700 for pricing, availability and configuration help.

Part Number	289641
Application	Metal
Compatible Material	Varnish Primer, Latex, Solventborne Paints, Solventborne, High Solids, Single-Component, CARC, Metallics, Stain, Lacquer, Enamel, Epoxy
Feed Type	Suction Hose
Fluid Inlet Size (in)	3/4
Fluid Inlet Thread Type	NPT
Fluid Outlet Size (in)	3/8
Fluid Outlet Thread Type	NPT
Gun Included	1
Gun Model	Pro Xp 85 kV Standard
Gun Technology	Electrostatic
Gun Type	Electrostatic
Includes	25 ft Air Hose, 25 ft Fluid Hose, Regulator, Applicator
Maximum Air Inlet Pressure (psi)	100
Maximum Working Pressure (psi)	100
Model	Triton
Mount Location	Cart Mount
Mount Type	Cart Mount
Power Source	Air
Pressure Type	Low Pressure
Product Type	Spray Package
Pump Ratio	1:1
Pump Type	Pneumatic Diaphragm Pump
Series	308
Spray Type	Electrostatic
Sprayer Type	Air Spray Electrostatic
Technology Type	Air Spray
Type	Air-Powered Sprayer
Weight (lb)	29.98
Wetted Material	Aluminum, Stainless Steel, Acetal, Nylon, PTFE, Fluoroelastomer, PEEK, UHMWPE, FEP, Acetal, Nylon, Polyethylene, Tungsten Carbide, Acetal Resin, Nylon, PET, Nickel-Plated Carbon Steel, LDPE/Rubber Blend, Zinc-Plated Carbon Steel, Polypropylene
Maximum Working Pressure (kg/cm²)	7.03
