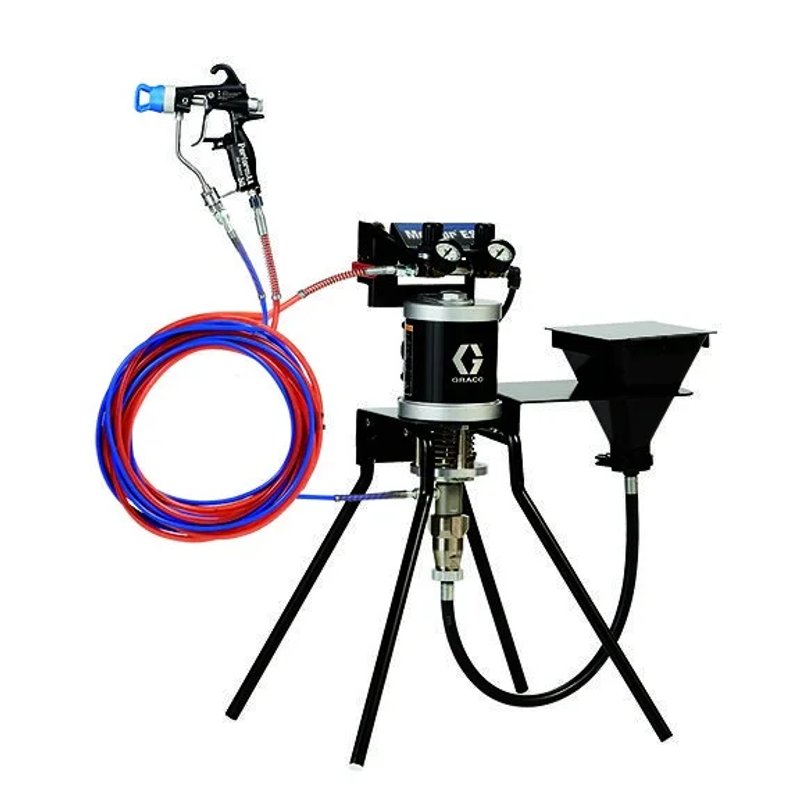

30:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with PerformAA 50 gun, hopper, and plated steel. Part # 24W285.
30:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with PerformAA 50 gun, hopper, and plated steel. Part # 24W285.
Product Status:
Category:
Manufacturer:
The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.
Graco part number 24W285. Call Fluid Transfer Systems at (248) 348-6700 for pricing, availability and configuration help.
Part of the Graco Merkur ES Spray Packages line under Graco Spray Packages. Manufacturer page: 24W285 on Graco.
| Part Number | 24W285 |
|---|---|
| Convertible | Non-Convertible |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Gun Included | 1 |
| Gun Model | PerformAA 50 Air Assist |
| Gun Technology | Air-Assisted |
| Gun Type | Air-Assisted |
| Hose Inlet Diameter (in) | 0.125 |
| Includes | PerformAA 50 Gun, Hopper, Stand Mount |
| Maximum Flow Rate (GPM) | 0.4 |
| Maximum Hose Length (ft) | 25 |
| Maximum Sound Pressure Level (dB(A)) | 77.9 |
| Maximum Tip Size (in) | 0.019 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Model | Merkur |
| Motor Type | Pneumatic |
| Mount Type | Stand Mount |
| Number of Guns | 1 |
| Power Source | Air |
| Pressure Type | High Pressure |
| Product Type | Spray Package |
| Pump Ratio | 30:1 |
| Pump Sleeve Material | Carbon Steel |
| Pump Type | Pneumatic Piston Pump |
| Series | ES |
| Spray Type | Air-Assisted |
| Type | Air-Assisted Airless Sprayer |
| Weight (lb) | 35 |
| Wetted Material | Stainless Steel, Nickel-Plated Carbon Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Engineered Plastic, Nylon, Fluoroelastomer, Polyethylene |
| Maximum Hose Length (m) | 7.6 |
Specifications as published by Graco for part 24W285.
