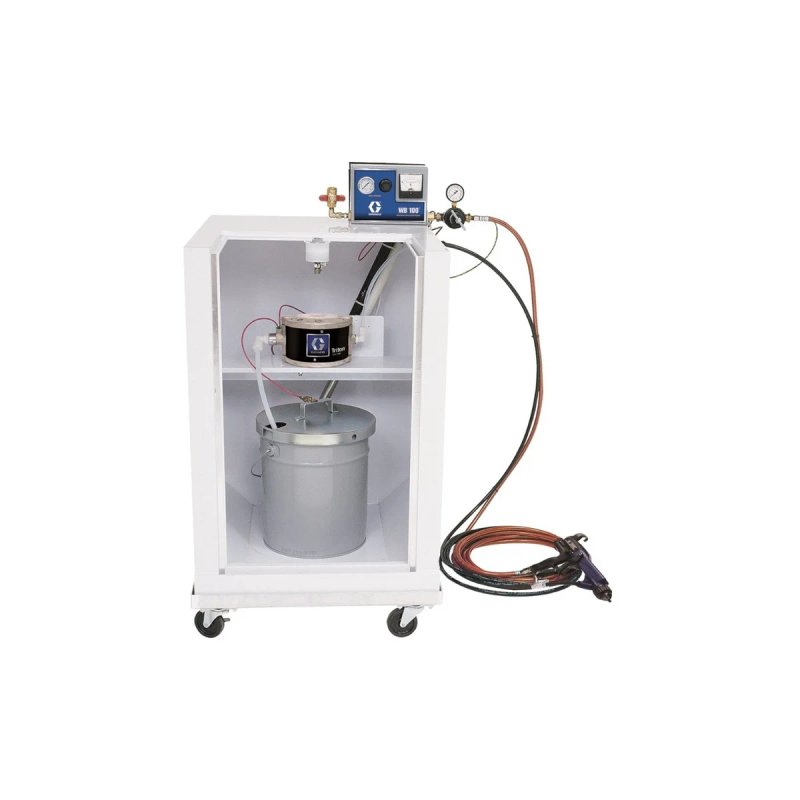

WB100 Waterborne Iso Enclosure, Pro Xp60 WB ES AS Gun, Grounded Air/Shielded WB Fluid Hose. Part # 24N580.
WB100 Waterborne Iso Enclosure, Pro Xp60 WB ES AS Gun, Grounded Air/Shielded WB Fluid Hose. Part # 24N580.
Product Status:
Category:
Manufacturer:
The Graco WB100 is the dependable way to isolate waterborne coatings when spraying with electrostatic equipment. Ideal for spray booth systems.
Graco part number 24N580. Call Fluid Transfer Systems at (248) 348-6700 for pricing, availability and configuration help.
Part of the Graco WB100/3000 Packages line under Graco Spray Packages. Manufacturer page: 24N580 on Graco.
| Part Number | 24N580 |
|---|---|
| Compatible Material | Waterborne, Single Components |
| Feed Type | Suction Hose |
| Fluid Inlet Size (in) | 3/4 |
| Fluid Inlet Thread Type | NPT |
| Gun Included | 1 |
| Gun Model | Waterborne |
| Gun Technology | Electrostatic |
| Gun Type | Electrostatic |
| Includes | Standard Electrostatic Air Spray Gun, Shielded Waterborne Fluid Hose |
| Maximum Air Inlet Pressure (psi) | 100 |
| Maximum Flow Rate (GPM) | 8.5 |
| Maximum Hose Length (ft) | 100 |
| Maximum Working Pressure (psi) | 100 |
| Model | WB100 |
| Mount Location | Cart Mount |
| Power Source | Air |
| Pressure Type | Low Pressure |
| Product Type | Spray Package |
| Pump Ratio | 1:1 |
| Pump Type | Pneumatic Diaphragm Pump |
| Spray Type | Air Spray |
| Sprayer Type | Air Spray |
| Technology Type | Air Spray |
| Type | Air-Powered Sprayer |
| Wetted Material | Stainless Steel, Nylon, Acetal, UHMWPE, Fluoroelastomer, PEEK, Tungsten, Polyethylene, PTFE |
| Maximum Flow Rate (L/min) | 32 |
| Maximum Hose Length (m) | 30.0 |
Specifications as published by Graco for part 24N580.
