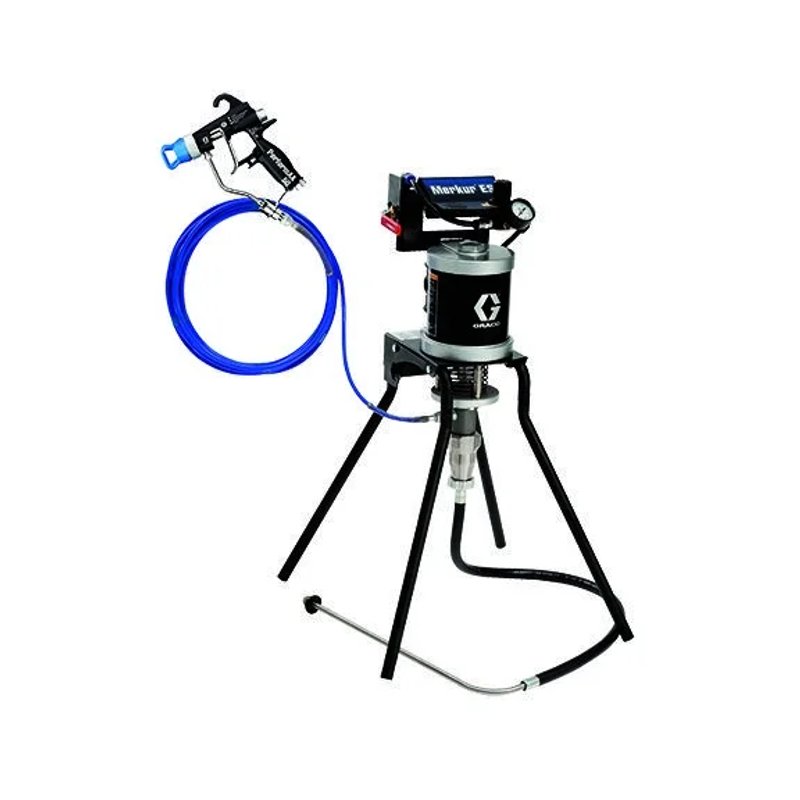

30:1 Merkur ES Airless Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with PerformAA 50 Airless gun, suction hose, and plated steel. Part # 24F155.
30:1 Merkur ES Airless Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with PerformAA 50 Airless gun, suction hose, and plated steel. Part # 24F155.
Product Status:
Category:
Manufacturer:
The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.
Graco part number 24F155. Call Fluid Transfer Systems at (248) 348-6700 for pricing, availability and configuration help.
Part of the Graco Merkur ES Spray Packages line under Graco Spray Packages. Manufacturer page: 24F155 on Graco.
| Part Number | 24F155 |
|---|---|
| Convertible | Non-Convertible |
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Gun Included | 1 |
| Gun Model | PerformAA 50 Airless |
| Gun Technology | Airless |
| Gun Type | Airless |
| Hose Inlet Diameter (in) | 1/8 |
| Includes | PerformAA 50 Airless Gun, Suction Hose, Stand Mount |
| Maximum Flow Rate (GPM) | 0.40 |
| Maximum Hose Length (ft) | 25 |
| Maximum Sound Pressure Level (dB(A)) | 77.9 |
| Maximum Tip Size (in) | 0.019 |
| Maximum Working Pressure (MPa) | 20.7 |
| Maximum Working Pressure (psi) | 3000 |
| Model | Merkur |
| Motor Type | Pneumatic |
| Mount Type | Stand Mount |
| Number of Guns | 1 |
| Power Source | Air |
| Pressure Type | High Pressure |
| Product Type | Spray Package |
| Pump Ratio | 30:1 |
| Pump Sleeve Material | Carbon Steel |
| Pump Type | Pneumatic Piston Pump |
| Series | ES |
| Spray Type | Airless |
| Type | Airless Sprayer |
| Weight (lb) | 25 |
| Wetted Material | Stainless Steel, Nickel-Plated Carbon Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Polyethylene, Polyurethane, Nylon, Fluoroelastomer |
| Maximum Flow Rate (L/min) | 1.5 |
| Maximum Hose Length (m) | 7.5 |
| Maximum Working Pressure (kg/cm²) | 210.9 |
Specifications as published by Graco for part 24F155.
