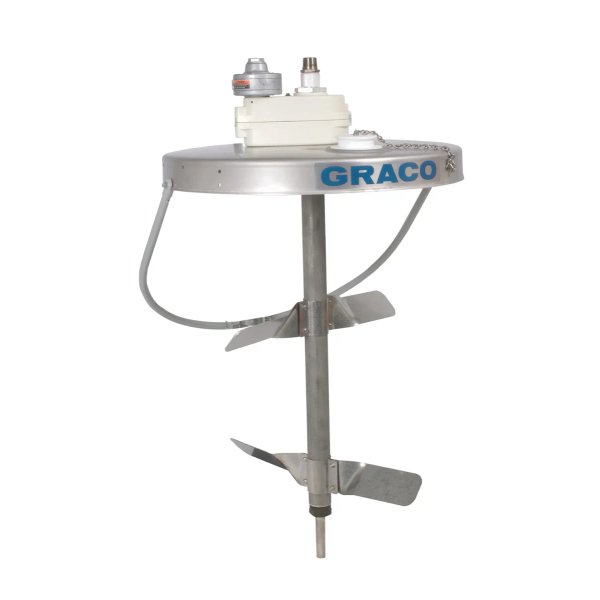

Graco 240209 Heavy Duty Back-Geared Drum Agitator with Siphon Kit

Manufacturer Part Number: 240209

Heavy Duty Back-Geared Drum Agitator with Siphon Kit, air driven, 1/2 HP, 32 inches (81.25 cm) tall. Drum Cover (238283) not included. Part # 240209.

(248) 348-6700

Save

Product Status:

Available

Category:

Graco Agitators

Manufacturer:

Graco

Graco 240209 Heavy Duty Back-Geared Drum Agitator with Siphon Kit

Description:

Heavy Duty Back-Geared Drum Agitator with Siphon Kit, air driven, 1/2 HP, 32 inches (81.25 cm) tall. Drum Cover (238283) not included

Heavy duty gearbox mixes high viscosity materials (maximum viscosity 3,000 cps)

Drum cover is not included, but can be ordered separately as part number 238283
Leak-free and oil-less gearbox prevents material contamination
Stainless steel agitator is corrosion resistant and waterborne compatible
Twin paddles thoroughly mix finishing materials
Siphon option allows material transfer through agitator shaft

Graco part number 240209 for use with 55 Gallon (208 Liter) Drum. Fluid Transfer Systems supplies Graco agitators, agitator motors and kits for paint kitchens, pressure tanks, pails and drums. Call FTS at (248) 348-6700 for pricing, availability and help matching the right agitator to your finishing material.

Part of the Graco Agitators line at FTS. Manufacturer page: 240209 on Graco.

Features:

Technical Specifications

Part Number	240209
Air Inlet Size (in)	1/4
Air Inlet Thread Type	NPT
For Use With	55 Gallon (208 Liter) Drum
Maximum Air Inlet Pressure (psi)	100
Maximum Speed (RPM)	1200
Maximum Viscosity (cP)	3000
Maximum Working Pressure (psi)	100
Motor Type	Pneumatic - Rotary Vane
Power Rating (HP)	0.25
Type	Agitator
Weight (lb)	25.8
Wetted Material	Stainless Steel, Acetal, AF, Nylon, PTFE
